SIRIUS 3RW30461BB04 Soft Starter, 24 VAC/VDC, 3-Poles, IP00
Open Soft Starters
576496
MFG #: 3RW30461BB04
Siemens
2384.91000
/ ea

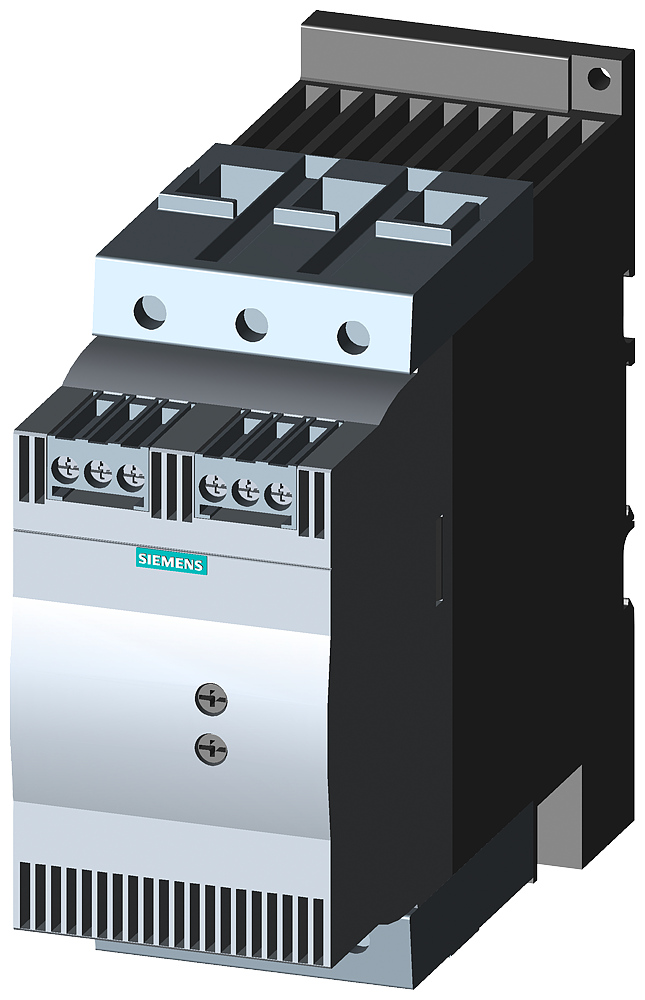

SIEMENS 3RW30461BB04 SOFTSTART 73A 20/25/50HP 24V SCRW
- 3D Rendering URL - G_IC03_XX_31087V.pdf(3D Rendering URL)
- 3D Rendering URL - G_NSB0_XX_91166V.pdf(3D Rendering URL)
- Catalog URL - SIRIUS_3RW30031CB54_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet 1 URL - Siemens_3RW30461BB04_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10991_IZE637MNC1WF2YHR.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RW30461BB04&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RW3046-1BB04&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=3RW3046-1BB04&language=en(Spec Sheet URL)
- Tech Drawing URL - 10991_EFQU5RYH4ZV1L86O.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-SPE-v1-2D_G_NSB0_XX_91162V.pdf(Tech Drawing URL)
- User Manual URL - man(User Manual URL)
- Features
25 hp at 220/230 VAC, 50 hp at 460/480 VAC |
This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters |
This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions |
Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages |
The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system |
The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters |
On two-phase controlled soft starters the current resulting from superimposition of the two controlled phases flows in the uncontrolled phase |
This results for physical reasons in an asymmetric distribution of the three phase currents during the motor ramp-up, This phenomenon cannot be influenced, but in most applications it is non-critical |
Controlling the power semiconductors results not only in this asymmetry, however, but also in the previously mentioned direct current components which can cause severe noise generation on the motor at starting voltages of less than 50 % |
It creates a motor ramp-up that is uniform in speed, torque and current rise, thus permitting a particularly gentle, two-phase starting of the motors |
At the same time the acoustic quality of the starting operation comes close to the quality of a three phase controlled soft starter. This is made possible by the on-going dynamic harmonizing and balancing of current halfwaves of different polarity during the motor ramp-up. Hence the name polarity balancing |
Soft starting with voltage ramp; the starting voltage setting range Us ranges from 40 to 100 %, and the ramp time tR can be set from 0 to 20 s |
Integrated bypass contact system to minimize power loss, Setting with two potentiometers, Simple mounting and commissioning |
The built-in auxiliary contact ensures user-friendly control and possible further processing within the system |
Cost-efficient operation Reduction of current peaks, Avoidance of mains voltage fluctuations during starting, Reduced load on the power supply network, Reduction of the mechanical load in the operating mechanism |
Considerable space savings and reduced wiring compared with conventional starters, Maintenance-free switching, Very easy handling |
Soft starting/ramp-down, voltage ramp and integral bypass contact system standard application |
screw and snap-on mounting |
80 A at 40 deg C Current |
20 hp at 200/208 V 73 A, 25 hp at 220/230 V 73 A, 50 hp at 460/480 V 73 A |
