Siemens

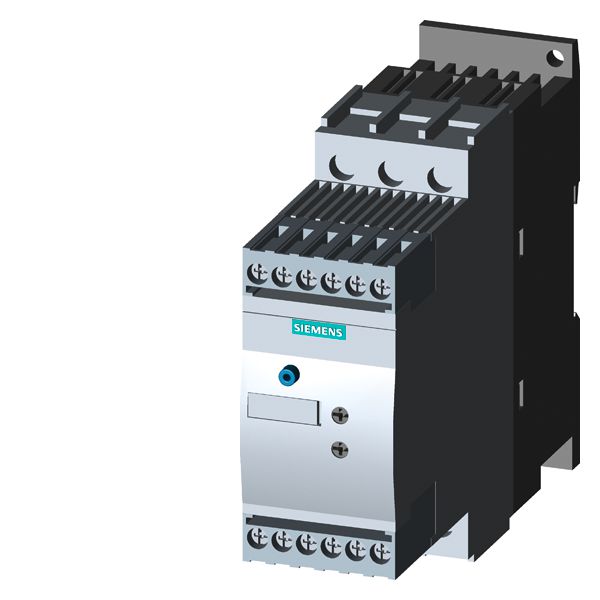

SIRIUS 3RW3027-1BB04 Soft Starter, 24 VAC/VDC, 3-Poles, IP20
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RW3027-1BB04 Soft Starter, 24 VAC/VDC, 3-Poles, IP20
SKU778758
MFGR #3RW3027-1BB04
Your Cost: $1,052.80/ea
List: SIEMENS 3RW3027-1BB04 SOFTSTART 32A 7.5/7.5/20HP 24V 480V SCR
SIEMENS 3RW3027-1BB04 SOFTSTART 32A 7.5/7.5/20HP 24V 480V SCR
Alternate Catalog Number 3RW3027-1BB04 Amperage Rating 32 A ARRA Compliant C Auxiliary Contact Rating 1NO Buy American Compliant C Catalog Number 3RW3027-1BB04 Connection Type Threaded Country of Origin CZ Currency USD Dimensions 125 mm H x 45 mm W x 150 mm D EU RoHS Indicator C Frequency Rating 50 to 60 Hz Gross Volume Per Pack 100.42 Gross Volume UOM in Gross Weight Per Pack 1.4500 lb Gross Weight per Pack Metric 0.66 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 7.1300 in Height [Metric] 18.1102 cm Length 6.1500 in Length [Metric] 15.6210 cm Motor Power 20 hp Number Of Poles 3 Operating Temperature -25 to 60 °C Phase 3 pH Returnable Y Series 3RW30 Standards ARRA, Buy American Act and RoHS Compliant, UL Listed, CCC, CE, CSA, C-Tick Certified UNSPSC 39121521 UPC 11 04089277677 UPC 12 040892776775 Voltage Rating 200 to 480 VAC Wattage 15 kW Width 2.2900 in Width [Metric] 5.8166 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Coil Voltage 24 VAC//VDC Enclosure Type IP20 Type Basic Performance The space required by the compact SIRIUS 3RW30 softstarter is often only about one third of that required by a contactor assembly for wye-delta starting of comparable rating This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RW3027-1BB04 |
| Amperage Rating | 32 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO |
| Buy American Compliant | C |
| Catalog Number | 3RW3027-1BB04 |
| Connection Type | Threaded |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 125 mm H x 45 mm W x 150 mm D |
| EU RoHS Indicator | C |
| Frequency Rating | 50 to 60 Hz |
| Gross Volume Per Pack | 100.42 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.4500 lb |
| Gross Weight per Pack Metric | 0.66 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 7.1300 in |
| Height [Metric] | 18.1102 cm |
| Length | 6.1500 in |
| Length [Metric] | 15.6210 cm |
| Motor Power | 20 hp |
| Number Of Poles | 3 |
| Operating Temperature | -25 to 60 °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | 3RW30 |
| Standards | ARRA, Buy American Act and RoHS Compliant, UL Listed, CCC, CE, CSA, C-Tick Certified |
| UNSPSC | 39121521 |
| UPC 11 | 04089277677 |
| UPC 12 | 040892776775 |
| Voltage Rating | 200 to 480 VAC |
| Wattage | 15 kW |
| Width | 2.2900 in |
| Width [Metric] | 5.8166 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Coil Voltage | 24 VAC//VDC |
| Enclosure Type | IP20 |
| Type | Basic Performance |
| The space required by the compact SIRIUS 3RW30 softstarter is often only about one third of that required by a contactor assembly for wye-delta starting of comparable rating |
| This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters |
| This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions |
| Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages |
| The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system |
| The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters |
