Siemens

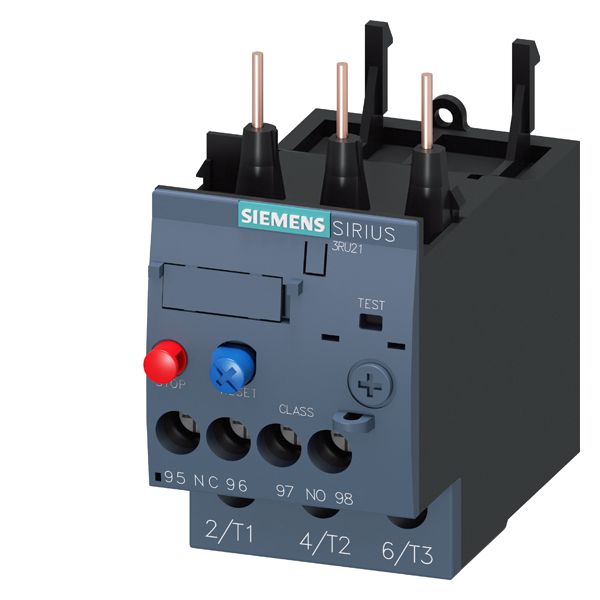

SIRIUS 3RU21261GB0 Thermal Overload Relay, 1NO-1NC Contact Form
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RU21261GB0 Thermal Overload Relay, 1NO-1NC Contact Form
SKU714655
MFGR #3RU21261GB0
Your Cost: $78.71/ea
List: SIEMENS 3RU21261GB0 OVERLOAD RELAY CL10 S0 4.5-6.3A SCREW
SIEMENS 3RU21261GB0 OVERLOAD RELAY CL10 S0 4.5-6.3A SCREW
Alternate Catalog Number 3RU2126-1GB0 Application Protection of three phase and single phase AC & DC motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RU21261GB0 Contact Configuration 1NC 1NO Contact Form 1NO-1NC Contact Rating 6.3 A at 690 VAC Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 85 mm D Enclosure Type IP20 Environmental Conditions 80.0 -50.0 C EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 141.78 Gross Volume UOM in Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 2.0000 in Height [Metric] 5.0800 cm Length 4.7000 in Length [Metric] 11.9380 cm Manufacturer Siemens Mounting direct mounting any Mounting Type Contactor Number Of Poles 3 Operating Temperature 70.0 -20.0 C Replaced Catalog Number 3RU1126-1GB0 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCE CertifiedCSA CertifiedEAC ApprovedUL Listed Stock Status NONSTOCK Sub Brand Sirius Temperature Rating -20 to 70 °C Terminal Type Threaded Type 3RU2 thermal overload relay UNSPSC 39122330 UPC 11 66264391907 UPC 12 662643919073 Width 4.5000 in Width [Metric] 11.4300 cm Protection of three phase and single phase AC & DC motors Optimised to the 3RT contactors such that in addtion to individual mounting they can mounted directly mounted onto the contactors to save space Overload and phase failure protection Manual and automatic reset Switch position indicators TEST function STOP button Size S0 Class 10 Optimized to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space -50 to 80 deg C environmental condition B600/R300 contact
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RU2126-1GB0 |
| Application | Protection of three phase and single phase AC & DC motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RU21261GB0 |
| Contact Configuration | 1NC 1NO |
| Contact Form | 1NO-1NC |
| Contact Rating | 6.3 A at 690 VAC |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 85 mm D |
| Enclosure Type | IP20 |
| Environmental Conditions | 80.0 -50.0 C |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 141.78 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 2.0000 in |
| Height [Metric] | 5.0800 cm |
| Length | 4.7000 in |
| Length [Metric] | 11.9380 cm |
| Manufacturer | Siemens |
| Mounting | direct mounting any |
| Mounting Type | Contactor |
| Number Of Poles | 3 |
| Operating Temperature | 70.0 -20.0 C |
| Replaced Catalog Number | 3RU1126-1GB0 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCE CertifiedCSA CertifiedEAC ApprovedUL Listed |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Temperature Rating | -20 to 70 °C |
| Terminal Type | Threaded |
| Type | 3RU2 thermal overload relay |
| UNSPSC | 39122330 |
| UPC 11 | 66264391907 |
| UPC 12 | 662643919073 |
| Width | 4.5000 in |
| Width [Metric] | 11.4300 cm |
| Protection of three phase and single phase AC & DC motors |
| Optimised to the 3RT contactors such that in addtion to individual mounting they can mounted directly mounted onto the contactors to save space |
| Overload and phase failure protection |
| Manual and automatic reset |
| Switch position indicators |
| TEST function |
| STOP button |
| Size S0 |
| Class 10 |
| Optimized to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space |
| -50 to 80 deg C environmental condition |
| B600/R300 contact |
