Siemens

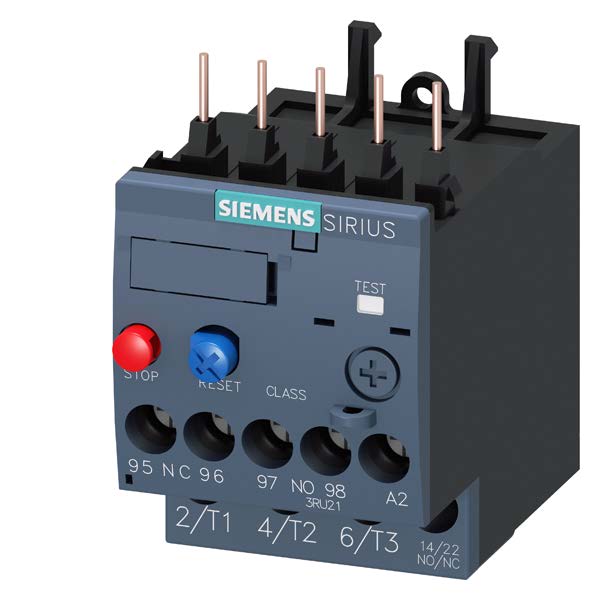

SIRIUS 3RU21161EB0 Thermal Overload Relay, 1NO-1NC Contact Form
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RU21161EB0 Thermal Overload Relay, 1NO-1NC Contact Form
SKU766295
MFGR #3RU21161EB0
Your Cost: $65.89/ea
List: SIEMENS 3RU21161EB0 OVERLOAD RELAY CL10 S00 2.8-4A SCREW
SIEMENS 3RU21161EB0 OVERLOAD RELAY CL10 S00 2.8-4A SCREW
Alternate Catalog Number 3RU2116-1EB0 Amperage Rating 2.8 to 4 A Application Protection of three phase and single phase AC & DC motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RU21161EB0 Coil Voltage 690 VAC Contact Configuration 1NC 1NO Contact Form 1NO-1NC Contact Rating 3 A at 24/110/120/125 VAC, 2 A at 230 VAC, 1 A at 400 VAC, 2 A at 24 VDC, 0.3 A at 60 VDC, 0.22 A at 110/125 VDC, 0.11 A at 220 VDC Country of Origin DE Currency USD Dimensions 76 mm H x 45 mm W x 70 mm D Enclosure Type IP20 Environmental Conditions 80.0 -50.0 C EU RoHS Indicator C Frequency Rating 50 to 60 Hz Gross Volume Per Pack 26.13 Gross Volume UOM in Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 3.3500 in Height [Metric] 8.5090 cm Length 4.0000 in Length [Metric] 10.1600 cm Manufacturer Siemens Mounting direct mounting any Mounting Type Contactor Number Of Poles 3 Operating Temperature 70.0 -20.0 C Power Rating 3 kW Replaced Catalog Number 3RU1116-1EB0 Returnable Y Standards RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedATEX CertifiedIECEx CertifiedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL Approved Stock Status NONSTOCK Sub Brand SIRIUS Temperature Rating -40 to 60 °C Terminal Type Screw Type 3RU2 thermal overload relay UNSPSC 39122330 UPC 11 66264392029 UPC 12 662643920291 Width 1.9500 in Width [Metric] 4.9530 cm Protection of three phase and single phase AC & DC motors Optimised to the 3RT contactors such that in addtion to individual mounting they can mounted directly mounted onto the contactors to save space Overload and phase failure protection Manual and automatic reset Switch position indicator Test function Stop button 3 A at 24/110/120/125 VAC, 2 A at 230 VAC, 1 A at 400 VAC operating current of auxiliary contacts at AC-15, 2 A at 24 VDC, 0.3 A at 60 VDC, 0.22 A at 110/125 VDC, 0.11 A at 220 VDC operating current of auxiliary contacts at DC-13 Class 10 Optimized to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space -50 to 80 deg C environmental condition B600/R300 contact
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RU2116-1EB0 |
| Amperage Rating | 2.8 to 4 A |
| Application | Protection of three phase and single phase AC & DC motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RU21161EB0 |
| Coil Voltage | 690 VAC |
| Contact Configuration | 1NC 1NO |
| Contact Form | 1NO-1NC |
| Contact Rating | 3 A at 24/110/120/125 VAC, 2 A at 230 VAC, 1 A at 400 VAC, 2 A at 24 VDC, 0.3 A at 60 VDC, 0.22 A at 110/125 VDC, 0.11 A at 220 VDC |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 76 mm H x 45 mm W x 70 mm D |
| Enclosure Type | IP20 |
| Environmental Conditions | 80.0 -50.0 C |
| EU RoHS Indicator | C |
| Frequency Rating | 50 to 60 Hz |
| Gross Volume Per Pack | 26.13 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 3.3500 in |
| Height [Metric] | 8.5090 cm |
| Length | 4.0000 in |
| Length [Metric] | 10.1600 cm |
| Manufacturer | Siemens |
| Mounting | direct mounting any |
| Mounting Type | Contactor |
| Number Of Poles | 3 |
| Operating Temperature | 70.0 -20.0 C |
| Power Rating | 3 kW |
| Replaced Catalog Number | 3RU1116-1EB0 |
| Returnable | Y |
| Standards | RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedATEX CertifiedIECEx CertifiedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL Approved |
| Stock Status | NONSTOCK |
| Sub Brand | SIRIUS |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | 3RU2 thermal overload relay |
| UNSPSC | 39122330 |
| UPC 11 | 66264392029 |
| UPC 12 | 662643920291 |
| Width | 1.9500 in |
| Width [Metric] | 4.9530 cm |
| Protection of three phase and single phase AC & DC motors |
| Optimised to the 3RT contactors such that in addtion to individual mounting they can mounted directly mounted onto the contactors to save space |
| Overload and phase failure protection |
| Manual and automatic reset |
| Switch position indicator |
| Test function |
| Stop button |
| 3 A at 24/110/120/125 VAC, 2 A at 230 VAC, 1 A at 400 VAC operating current of auxiliary contacts at AC-15, 2 A at 24 VDC, 0.3 A at 60 VDC, 0.22 A at 110/125 VDC, 0.11 A at 220 VDC operating current of auxiliary contacts at DC-13 |
| Class 10 |
| Optimized to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space |
| -50 to 80 deg C environmental condition |
| B600/R300 contact |
