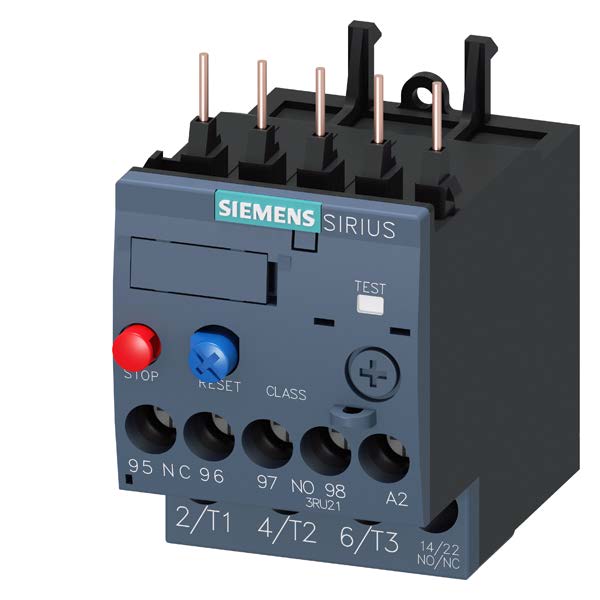

SIRIUS 3RU21160GB0 Thermal Overload Relay, 1NO-1NC Contact Form
Custom_Product_Images_Illustration
SIRIUS 3RU21160GB0 Thermal Overload Relay, 1NO-1NC Contact Form
SKU649211
MFGR #3RU21160GB0
Your Cost: $65.89/ea
List: SIEMENS 3RU21160GB0 OVERLOAD RELAY CL10 S00 0.45-0.63A SCREW
SIEMENS 3RU21160GB0 OVERLOAD RELAY CL10 S00 0.45-0.63A SCREW
Alternate Catalog Number 3RU2116-0GB0 Amperage Rating 0.45 to 0.63 Application Designed for the protection of three phase and single phase AC and DC motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RU21160GB0 Coil Voltage 690 Contact Form 1NO-1NC Contact Rating 0.63 A at 690 VAC Country of Origin DE Currency USD Dimensions 76 mm H x 45 mm W x 70 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 274.34 Gross Volume UOM in Gross Weight Per Pack 0.4350 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 3.7000 in Height [Metric] 9.3980 cm Length 3.8000 in Length [Metric] 9.6520 cm Manufacturer Siemens Mounting vertical and direct mounting Mounting Type Surface Number Of Poles 3 Operating Temperature -40 ?C and 70 ?C Power Rating 0.25 Replaced Catalog Number 3RU1116-0GB0 Reset Type 3 Returnable Y Size S00 Standard CSA/UL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC MarkedCE MarkedCSA CertifiedEAC StandardUL Listed Stock Status NONSTOCK Sub Brand Sirius Temperature Rating -40 to 70 °C Terminal Type Threaded Type 3RU2 thermal overload relay UNSPSC 39122330 UPC 11 66264391989 UPC 12 662643919899 Width 1.6000 in Width [Metric] 4.0640 cm Designed for the protection of three phase and single phase AC and DC motors Aux Contacts 1 NO + 1NC, Switiching Position Indication, Test Funtion, STOP Button Overload and phase failure protection Manual and automatic reset Switch position indicators Test function Stop button Size S00 Class 10 Optimized to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space B600/R300 contact Optimised to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space B600/R300 contact
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RU2116-0GB0 |
| Amperage Rating | 0.45 to 0.63 |
| Application | Designed for the protection of three phase and single phase AC and DC motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RU21160GB0 |
| Coil Voltage | 690 |
| Contact Form | 1NO-1NC |
| Contact Rating | 0.63 A at 690 VAC |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 76 mm H x 45 mm W x 70 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 274.34 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.4350 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 3.7000 in |
| Height [Metric] | 9.3980 cm |
| Length | 3.8000 in |
| Length [Metric] | 9.6520 cm |
| Manufacturer | Siemens |
| Mounting | vertical and direct mounting |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Temperature | -40 ?C and 70 ?C |
| Power Rating | 0.25 |
| Replaced Catalog Number | 3RU1116-0GB0 |
| Reset Type | 3 |
| Returnable | Y |
| Size | S00 |
| Standard | CSA/UL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC MarkedCE MarkedCSA CertifiedEAC StandardUL Listed |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Temperature Rating | -40 to 70 °C |
| Terminal Type | Threaded |
| Type | 3RU2 thermal overload relay |
| UNSPSC | 39122330 |
| UPC 11 | 66264391989 |
| UPC 12 | 662643919899 |
| Width | 1.6000 in |
| Width [Metric] | 4.0640 cm |
| Designed for the protection of three phase and single phase AC and DC motors |
| Aux Contacts 1 NO + 1NC, Switiching Position Indication, Test Funtion, STOP Button |
| Overload and phase failure protection |
| Manual and automatic reset |
| Switch position indicators |
| Test function |
| Stop button |
| Size S00 |
| Class 10 |
| Optimized to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space |
| B600/R300 contact |
| Optimised to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space |
| B600/R300 contact |
