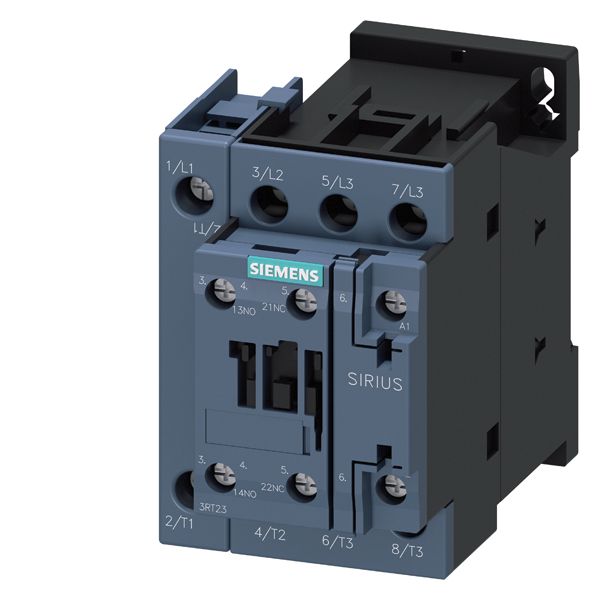

SIRIUS 3RT2325-1AK60 Power Contactor 3RT2325-1AK60, 110/120 VAC Coil, 30 A Max Load, 4NO, 4 Poles
Custom_Product_Images_Illustration
SIRIUS 3RT2325-1AK60 Power Contactor 3RT2325-1AK60, 110/120 VAC Coil, 30 A Max Load, 4NO, 4 Poles
SKU764681
MFGR #3RT23251AK60
Your Cost: $120.00/ea
List: SIEMENS 3RT23251AK60 CONTACTOR RES S0 30A 120VAC 5NO/1NC SCRW
SIEMENS 3RT23251AK60 CONTACTOR RES S0 30A 120VAC 5NO/1NC SCRW
Alternate Catalog Number 3RT2325-1AK60 ARRA Compliant C Buy American Compliant C Catalog Number 3RT23251AK60 Coil Power Rating 68/67 VA Pickup/7.9/6.5 VA Holding Connection Type Screw Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 85 mm H x 60 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 287.23 Gross Volume UOM in Gross Weight Per Pack 1.0750 lb Gross Weight per Pack Metric 0.49 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 5.1000 in Height [Metric] 12.9540 cm Length 3.7000 in Length [Metric] 9.3980 cm Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 4 Operating Cycles 10000000 Operating Temperature -25 to 60 Replaced Catalog Number 3RT1325-1AK60 Returnable Y Size Size S0 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantC-Tick ApprovedCCC CertifiedCSA CertifiedUL ListedEAC Approved Terminal Type Screw UNSPSC 39121529 UPC 11 04089263481 UPC 12 040892634815 Wattage 22 kW Width 4.4000 in Width [Metric] 11.1760 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Coil Voltage 110/120 VAC Contact Configuration 4NO Maximum Load Current 30 A Type Innovation Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring 4-phase 110 VAC at 50 Hz, 120 VAC at 60 Hz voltage rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2325-1AK60 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 3RT23251AK60 |
| Coil Power Rating | 68/67 VA Pickup/7.9/6.5 VA Holding |
| Connection Type | Screw |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 60 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 287.23 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0750 lb |
| Gross Weight per Pack Metric | 0.49 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.1000 in |
| Height [Metric] | 12.9540 cm |
| Length | 3.7000 in |
| Length [Metric] | 9.3980 cm |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 4 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Replaced Catalog Number | 3RT1325-1AK60 |
| Returnable | Y |
| Size | Size S0 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantC-Tick ApprovedCCC CertifiedCSA CertifiedUL ListedEAC Approved |
| Terminal Type | Screw |
| UNSPSC | 39121529 |
| UPC 11 | 04089263481 |
| UPC 12 | 040892634815 |
| Wattage | 22 kW |
| Width | 4.4000 in |
| Width [Metric] | 11.1760 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Coil Voltage | 110/120 VAC |
| Contact Configuration | 4NO |
| Maximum Load Current | 30 A |
| Type | Innovation |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| 4-phase |
| 110 VAC at 50 Hz, 120 VAC at 60 Hz voltage rating |
