Siemens

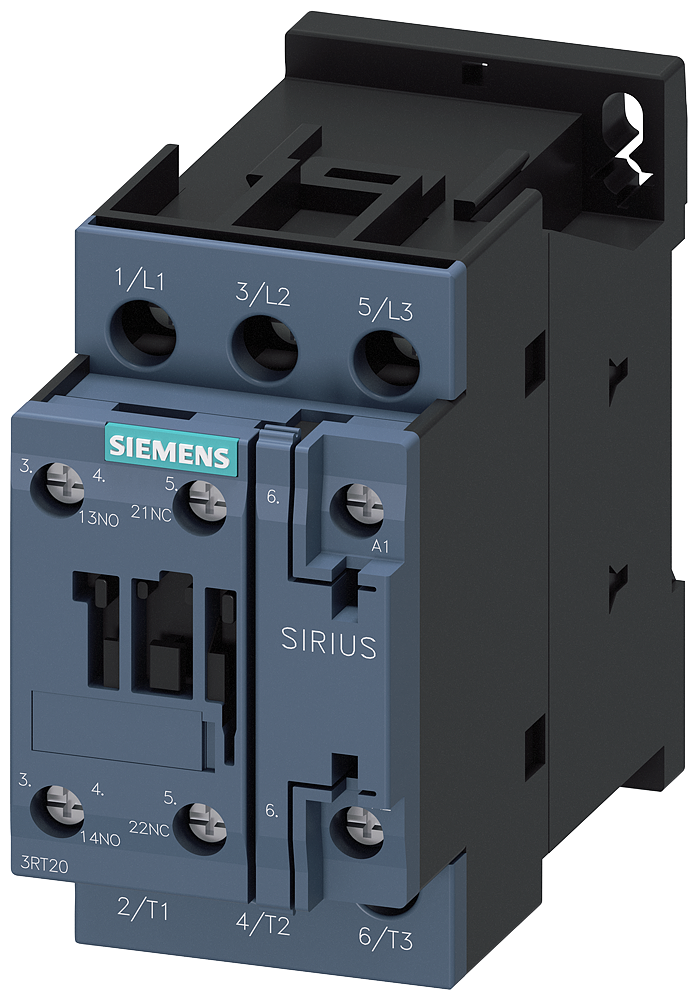

SIRIUS 3RT2027-1AP60 Power Contactor 3RT2027-1AP60, 220/240 VAC Coil, 32 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RT2027-1AP60 Power Contactor 3RT2027-1AP60, 220/240 VAC Coil, 32 A Max Load, 3NO, 3 Poles
SKU789797
MFGR #3RT20271AP60
Your Cost: $180.40/ea
List: SIEMENS 3RT20271AP60 CONTACTOR S0 32A 240VAC 1NO/1NC SCREW
SIEMENS 3RT20271AP60 CONTACTOR S0 32A 240VAC 1NO/1NC SCREW
Alternate Catalog Number 3RT2027-1AP60 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20271AP60 Coil Power Rating 8.5/10.5/79/81 VA Coil Voltage 220/240 VAC Connection screw-type terminals Connection Type Screw Contact Configuration 1NO-1NC Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 32.32 Gross Volume UOM in Gross Weight Per Pack 0.6500 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 4.1800 in Height [Metric] 10.6172 cm Length 3.6300 in Length [Metric] 9.2202 cm Manufacturer Siemens Maximum Load Current 32 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Returnable Y Series 3RT2 Size S0 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Sub Brand Sirius Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264391582 UPC 12 662643915822 Wattage 15 kW Width 2.1300 in Width [Metric] 5.4102 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. 81 VA at 50 Hz/79 VA at 60 Hz (pick-up), 10.5 VA at 50 Hz/8.5 VA at 60 Hz (holding) magnet coil at AC 0.25 at 50 Hz/0.28 at 60 Hz (holding), 0.72 at 50 Hz/0.74 at 60 Hz (closing) power factor These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface 3 phase Screw and snap-on mounting onto 35 mm standard mounting rail 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2027-1AP60 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20271AP60 |
| Coil Power Rating | 8.5/10.5/79/81 VA |
| Coil Voltage | 220/240 VAC |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Configuration | 1NO-1NC |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 32.32 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6500 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 4.1800 in |
| Height [Metric] | 10.6172 cm |
| Length | 3.6300 in |
| Length [Metric] | 9.2202 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 32 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Returnable | Y |
| Series | 3RT2 |
| Size | S0 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264391582 |
| UPC 12 | 662643915822 |
| Wattage | 15 kW |
| Width | 2.1300 in |
| Width [Metric] | 5.4102 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| 81 VA at 50 Hz/79 VA at 60 Hz (pick-up), 10.5 VA at 50 Hz/8.5 VA at 60 Hz (holding) magnet coil at AC |
| 0.25 at 50 Hz/0.28 at 60 Hz (holding), 0.72 at 50 Hz/0.74 at 60 Hz (closing) power factor |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface |
| 3 phase |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
