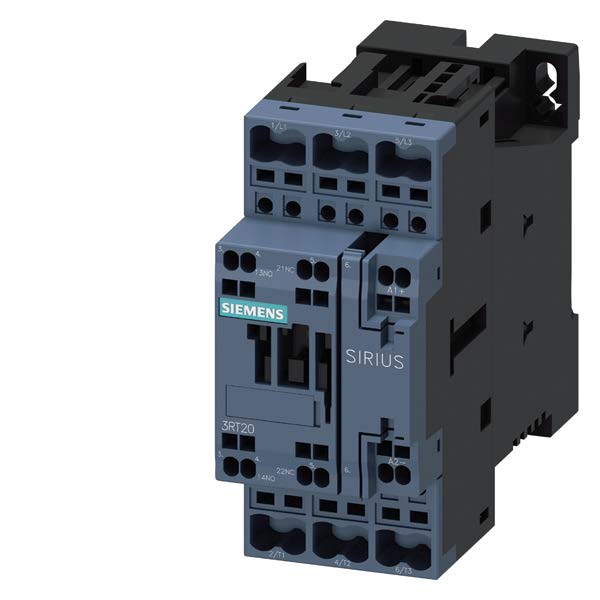

SIRIUS 3RT2025-2BB40 Power Contactor 3RT2025-2BB40, 24 VDC Coil, 16 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS 3RT2025-2BB40 Power Contactor 3RT2025-2BB40, 24 VDC Coil, 16 A Max Load, 3NO, 3 Poles
SKU879306
MFGR #3RT20252BB40
SIEMENS 3RT20252BB40 CONTACTOR S0 16A 24VDC 1NO/1NC SPRG
SIEMENS 3RT20252BB40 CONTACTOR S0 16A 24VDC 1NO/1NC SPRG
Alternate Catalog Number 3RT2025-2BB40 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20252BB40 Coil Power Rating 5.9 W Coil Voltage 24 VDC Connection spring-loaded terminals Contact Configuration 1NO-1NC Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 102 mm H x 45 mm W x 107 mm D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 41.47 Gross Volume UOM in Gross Weight Per Pack 1.3640 lb Gross Weight per Pack Metric 0.62 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 4.5700 in Height [Metric] 11.6078 cm Length 4.2600 in Length [Metric] 10.8204 cm Manufacturer Siemens Maximum Load Current 17 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Replaced Catalog Number 3RT1025-3BB40 Returnable Y Size S0 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedRCM ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Sub Brand Sirius Terminal Type Spring-Loaded Type Standard UNSPSC 39121529 UPC 11 66264391466 UPC 12 662643914665 Wattage 7.5 kW Width 2.1300 in Width [Metric] 5.4102 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. 5.9 W (closing/holding) magnet coil at DC 3-phase
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2025-2BB40 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20252BB40 |
| Coil Power Rating | 5.9 W |
| Coil Voltage | 24 VDC |
| Connection | spring-loaded terminals |
| Contact Configuration | 1NO-1NC |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 102 mm H x 45 mm W x 107 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 41.47 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.3640 lb |
| Gross Weight per Pack Metric | 0.62 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 4.5700 in |
| Height [Metric] | 11.6078 cm |
| Length | 4.2600 in |
| Length [Metric] | 10.8204 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 17 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Replaced Catalog Number | 3RT1025-3BB40 |
| Returnable | Y |
| Size | S0 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedRCM ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Spring-Loaded |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264391466 |
| UPC 12 | 662643914665 |
| Wattage | 7.5 kW |
| Width | 2.1300 in |
| Width [Metric] | 5.4102 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| 5.9 W (closing/holding) magnet coil at DC |
| 3-phase |
