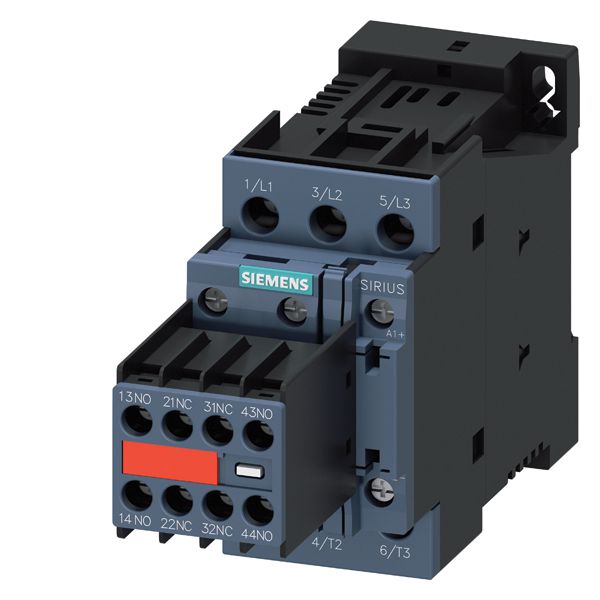

SIRIUS 3RT2025-1BB44-3MA0 Power Contactor 3RT2025-1BB44-3MA0, 24 VDC Coil, 16 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS 3RT2025-1BB44-3MA0 Power Contactor 3RT2025-1BB44-3MA0, 24 VDC Coil, 16 A Max Load, 3NO, 3 Poles
SKU661106
MFGR #3RT20251BB443MA0
Your Cost: $206.80/ea
List: SIEMENS 3RT20251BB443MA0 CONTACTOR S0 16A 24VDC 2NO/2NC SCREW
SIEMENS 3RT20251BB443MA0 CONTACTOR S0 16A 24VDC 2NO/2NC SCREW
Alternate Catalog Number 3RT2025-1BB44-3MA0 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20251BB443MA0 Coil Power Rating 5.9 W Closing/Holding Coil Voltage 24 VDC Connection screw-type terminals Connection Type Screw Contact Configuration 3NO Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 151 mm D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 378.94 Gross Volume UOM in Gross Weight Per Pack 1.2800 lb Gross Weight per Pack Metric 0.58 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 6.2500 in Height [Metric] 15.8750 cm Length 5.2000 in Length [Metric] 13.2080 cm Manufacturer Siemens Maximum Load Current 16 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Replaced Catalog Number 3RT1025-1BB44-3MA0 Returnable Y Size Size S0 Standards ARRA, Buy American Act and RoHS Compliant, CCC, CSA, CE, C-Tick, VDE Certified, UL Listed Stock Status NORMALLY STOCKED Sub Brand SIRIUS Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264391437 UPC 12 662643914375 Wattage 7.5 kW Width 2.4000 in Width [Metric] 6.0960 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring 3-phase These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface Permanent auxiliary switch for suva applications 3 phase Screw and snap-on mounting onto 35 mm standard mounting rail 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2025-1BB44-3MA0 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20251BB443MA0 |
| Coil Power Rating | 5.9 W Closing/Holding |
| Coil Voltage | 24 VDC |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 151 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 378.94 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.2800 lb |
| Gross Weight per Pack Metric | 0.58 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.2500 in |
| Height [Metric] | 15.8750 cm |
| Length | 5.2000 in |
| Length [Metric] | 13.2080 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 16 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Replaced Catalog Number | 3RT1025-1BB44-3MA0 |
| Returnable | Y |
| Size | Size S0 |
| Standards | ARRA, Buy American Act and RoHS Compliant, CCC, CSA, CE, C-Tick, VDE Certified, UL Listed |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | SIRIUS |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264391437 |
| UPC 12 | 662643914375 |
| Wattage | 7.5 kW |
| Width | 2.4000 in |
| Width [Metric] | 6.0960 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| 3-phase |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface |
| Permanent auxiliary switch for suva applications |
| 3 phase |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
