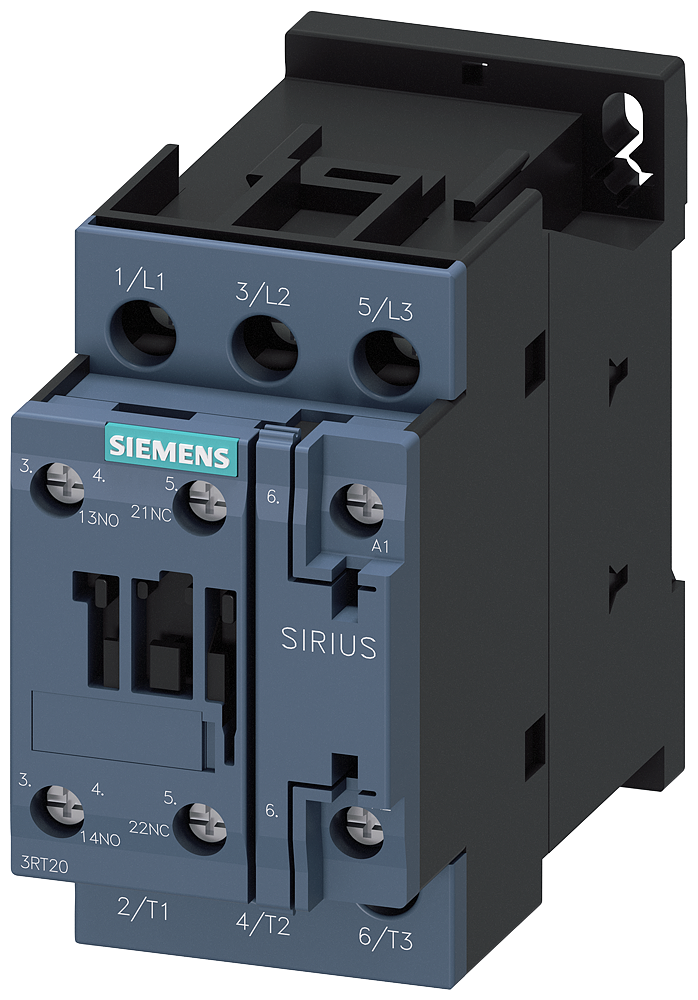

SIRIUS 3RT2025-1AC20 Power Contactor 3RT2025-1AC20, 24 VAC Coil, 16 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS 3RT2025-1AC20 Power Contactor 3RT2025-1AC20, 24 VAC Coil, 16 A Max Load, 3NO, 3 Poles
SKU853423
MFGR #3RT20251AC20
$/ea
SIEMENS 3RT20251AC20 CONTACTOR S0 16A 24VAC 1NO/1NC SCRW
SIEMENS 3RT20251AC20 CONTACTOR S0 16A 24VAC 1NO/1NC SCRW
Alternate Catalog Number 3RT2025-1AC20 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20251AC20 Coil Power Rating 68/67 VA Pickup/7.9/6.5 VA Holding Coil Voltage 24 VAC Contact Configuration 3NO Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 542.68 Gross Volume UOM in Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 0.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.6000 in Height [Metric] 9.1440 cm Length 4.0000 in Length [Metric] 10.1600 cm Manufacturer Siemens Maximum Load Current 16 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Returnable Y Size Size S0 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCSA CertifiedCE CertifiedC-Tick ApprovedVDE ApprovedUL Listed Stock Status NONSTOCK Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264391548 UPC 12 662643915488 Wattage 7.5 kW Width 1.7000 in Width [Metric] 4.3180 cm These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring 0.25 at 50 Hz/0.28 at 60 Hz (holding), 0.72 at 50 Hz/0.74 at 60 Hz (closing) power factor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2025-1AC20 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20251AC20 |
| Coil Power Rating | 68/67 VA Pickup/7.9/6.5 VA Holding |
| Coil Voltage | 24 VAC |
| Contact Configuration | 3NO |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 542.68 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 0.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.6000 in |
| Height [Metric] | 9.1440 cm |
| Length | 4.0000 in |
| Length [Metric] | 10.1600 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 16 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Returnable | Y |
| Size | Size S0 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCSA CertifiedCE CertifiedC-Tick ApprovedVDE ApprovedUL Listed |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264391548 |
| UPC 12 | 662643915488 |
| Wattage | 7.5 kW |
| Width | 1.7000 in |
| Width [Metric] | 4.3180 cm |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| 0.25 at 50 Hz/0.28 at 60 Hz (holding), 0.72 at 50 Hz/0.74 at 60 Hz (closing) power factor |
