Siemens

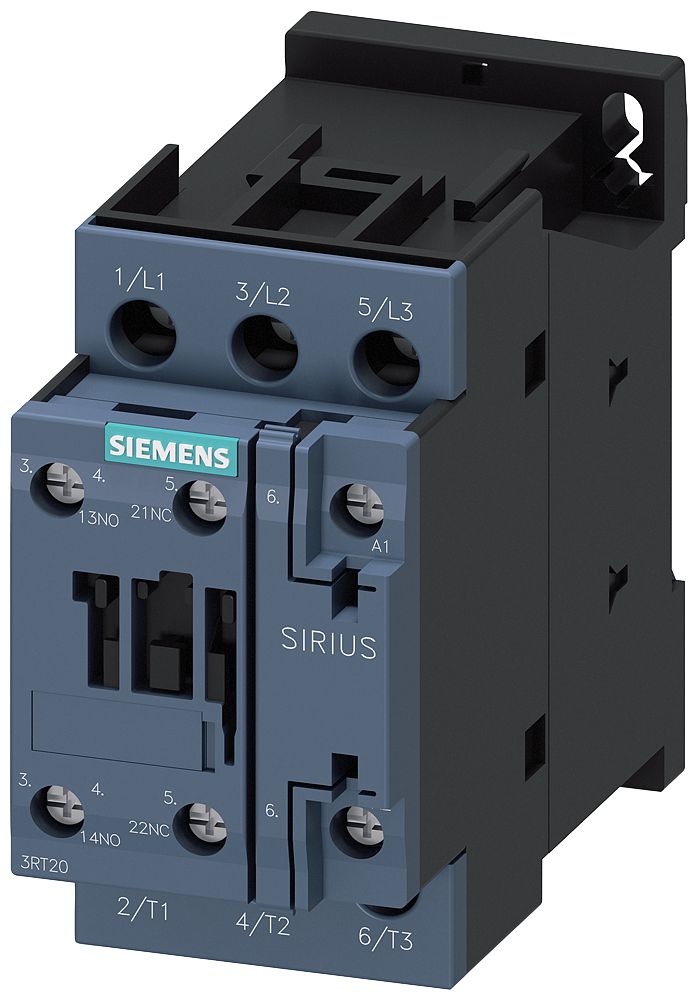

SIRIUS 3RT2024-1AC20 Power Contactor 3RT2024-1AC20, 24 VAC Coil, 12 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RT2024-1AC20 Power Contactor 3RT2024-1AC20, 24 VAC Coil, 12 A Max Load, 3NO, 3 Poles
SKU777288
MFGR #3RT20241AC20
Your Cost: $70.60/ea
List: SIEMENS 3RT20241AC20 CONTACTOR S0 12A 24VAC 1NO/1NC SCREW
SIEMENS 3RT20241AC20 CONTACTOR S0 12A 24VAC 1NO/1NC SCREW
Alternate Catalog Number 3RT2024-1AC20 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20241AC20 Coil Power Rating 68/67 VA Pickup, 7.9/6.5 VA Holding Coil Voltage 24 VAC Connection screw-type terminals Connection Type Screw Contact Configuration 3NO Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 33.26 Gross Volume UOM in Gross Weight Per Pack 1.0100 lb Gross Weight per Pack Metric 0.46 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.6000 in Height [Metric] 9.1440 cm Length 4.2000 in Length [Metric] 10.6680 cm Manufacturer Siemens Maximum Load Current 12 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -25 to 60 Phase 3 Replaced Catalog Number 3RT1024-1AC20 Returnable Y Series 3RT2 Size Size S0 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC MarkedCSA CertifiedCE MarkedC-Tick ApprovedVDE ApprovedUL Listed Stock Status NONSTOCK Sub Brand Sirius Terminal Type Screw Type 3-Phase UNSPSC 39121529 UPC 11 66264391301 UPC 12 662643913019 Wattage 5.5 kW Width 2.2000 in Width [Metric] 5.5880 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring Contactors in size S00, S0###and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface 3 phase Screw and snap-on mounting onto 35 mm standard mounting rail 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2024-1AC20 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20241AC20 |
| Coil Power Rating | 68/67 VA Pickup, 7.9/6.5 VA Holding |
| Coil Voltage | 24 VAC |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 33.26 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0100 lb |
| Gross Weight per Pack Metric | 0.46 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.6000 in |
| Height [Metric] | 9.1440 cm |
| Length | 4.2000 in |
| Length [Metric] | 10.6680 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 12 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Replaced Catalog Number | 3RT1024-1AC20 |
| Returnable | Y |
| Series | 3RT2 |
| Size | Size S0 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC MarkedCSA CertifiedCE MarkedC-Tick ApprovedVDE ApprovedUL Listed |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Screw |
| Type | 3-Phase |
| UNSPSC | 39121529 |
| UPC 11 | 66264391301 |
| UPC 12 | 662643913019 |
| Wattage | 5.5 kW |
| Width | 2.2000 in |
| Width [Metric] | 5.5880 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| Contactors in size S00, S0###and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface |
| 3 phase |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
