Siemens

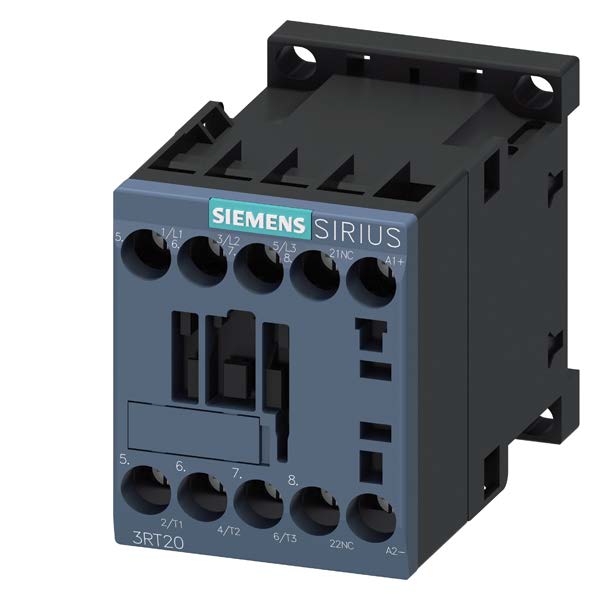

SIRIUS 3RT2017-1BB42 Power Contactor 3RT2017-1BB42, 24 VDC Coil, 12 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RT2017-1BB42 Power Contactor 3RT2017-1BB42, 24 VDC Coil, 12 A Max Load, 3NO, 3 Poles
SKU647779
MFGR #3RT20171BB42
Your Cost: $252.00/ea
SIEMENS 3RT20171BB42 CONTACTOR S00 12A 24VDC 1NC SCREW
SIEMENS 3RT20171BB42 CONTACTOR S00 12A 24VDC 1NC SCREW
Alternate Catalog Number 3RT2017-1BB42 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20171BB42 Coil Power Rating 4 W Closing/Holding Coil Voltage 24 VDC Connection screw-type terminals Connection Type Screw Contact Configuration 3NO Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 58 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 15.29 Gross Volume UOM in Gross Weight Per Pack 0.7500 lb Gross Weight per Pack Metric 0.34 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 1.9500 in Height [Metric] 4.9530 cm Length 3.2000 in Length [Metric] 8.1280 cm Manufacturer Siemens Maximum Load Current 12 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 1 Number Of Poles 3 Operating Cycles 30000000 Cycles Operating Temperature -25 to 60 Phase 3 Replaced Catalog Number 3RT1017-1BB42 Returnable Y Series 3RT2 Size Size S00 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC MarkedCSA CertifiedCE MarkedUL ListedEAC Standard Stock Status NONSTOCK Sub Brand Sirius Terminal Type Screw Type 3-Phase UNSPSC 39121529 UPC 11 66264391113 UPC 12 662643911138 Wattage 5.5 kW Width 2.4500 in Width [Metric] 6.2230 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring Contactors in size S00, S0###and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2017-1BB42 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20171BB42 |
| Coil Power Rating | 4 W Closing/Holding |
| Coil Voltage | 24 VDC |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 15.29 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7500 lb |
| Gross Weight per Pack Metric | 0.34 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 1.9500 in |
| Height [Metric] | 4.9530 cm |
| Length | 3.2000 in |
| Length [Metric] | 8.1280 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 12 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 Cycles |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Replaced Catalog Number | 3RT1017-1BB42 |
| Returnable | Y |
| Series | 3RT2 |
| Size | Size S00 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC MarkedCSA CertifiedCE MarkedUL ListedEAC Standard |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Screw |
| Type | 3-Phase |
| UNSPSC | 39121529 |
| UPC 11 | 66264391113 |
| UPC 12 | 662643911138 |
| Wattage | 5.5 kW |
| Width | 2.4500 in |
| Width [Metric] | 6.2230 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| Contactors in size S00, S0###and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules |
