Siemens

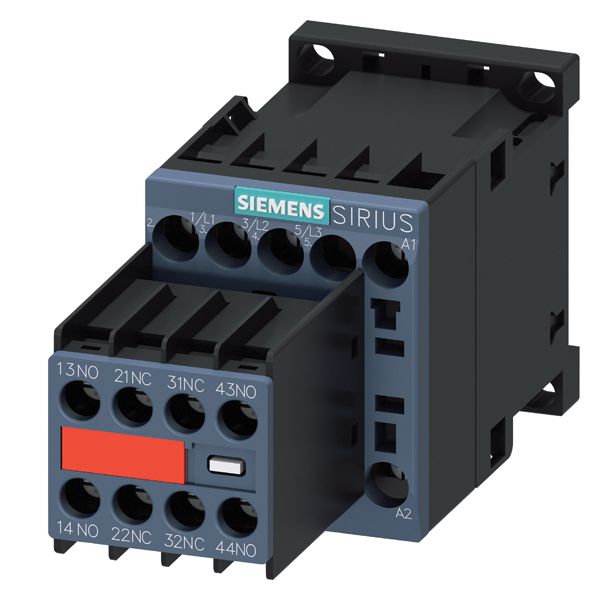

SIRIUS 3RT2016-1AK64-3MA0 Power Contactor 3RT2016-1AK64-3MA0, 110/120 VAC Coil, 9 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RT2016-1AK64-3MA0 Power Contactor 3RT2016-1AK64-3MA0, 110/120 VAC Coil, 9 A Max Load, 3NO, 3 Poles
SKU700494
MFGR #3RT20161AK643MA0
Your Cost: $111.80/ea
List: SIEMENS 3RT20161AK643MA0 CONTACTOR S00 9A 120VAC 2N0/2NC SCREW
SIEMENS 3RT20161AK643MA0 CONTACTOR S00 9A 120VAC 2N0/2NC SCREW
Alternate Catalog Number 3RT2016-1AK64-3MA0 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20161AK643MA0 Coil Voltage 120.00000 Connection screw-type terminals Contact Rating A600 / Q600 Country of Origin DE Currency USD EU RoHS Indicator C Gross Volume Per Pack 32.96 Gross Volume UOM in Gross Weight Per Pack 0.6200 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 2.4500 in Height [Metric] 6.2230 cm Length 3.9000 in Length [Metric] 9.9060 cm Manufacturer Siemens Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Operating Temperature 60.0 -25.0 C Phase 3 Returnable Y Size S00 Standards UL Listed, CE, CSA, EAC, VDE Certified, RoHS, ARRA, Buy American Act Compliant Stock Status NONSTOCK Sub Brand Sirius Type 3RT2 contactor UNSPSC 39121529 UPC 11 04089263374 UPC 12 040892633740 Width 1.5000 in Width [Metric] 3.8100 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2016-1AK64-3MA0 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20161AK643MA0 |
| Coil Voltage | 120.00000 |
| Connection | screw-type terminals |
| Contact Rating | A600 / Q600 |
| Country of Origin | DE |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 32.96 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6200 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 2.4500 in |
| Height [Metric] | 6.2230 cm |
| Length | 3.9000 in |
| Length [Metric] | 9.9060 cm |
| Manufacturer | Siemens |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Operating Temperature | 60.0 -25.0 C |
| Phase | 3 |
| Returnable | Y |
| Size | S00 |
| Standards | UL Listed, CE, CSA, EAC, VDE Certified, RoHS, ARRA, Buy American Act Compliant |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Type | 3RT2 contactor |
| UNSPSC | 39121529 |
| UPC 11 | 04089263374 |
| UPC 12 | 040892633740 |
| Width | 1.5000 in |
| Width [Metric] | 3.8100 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
