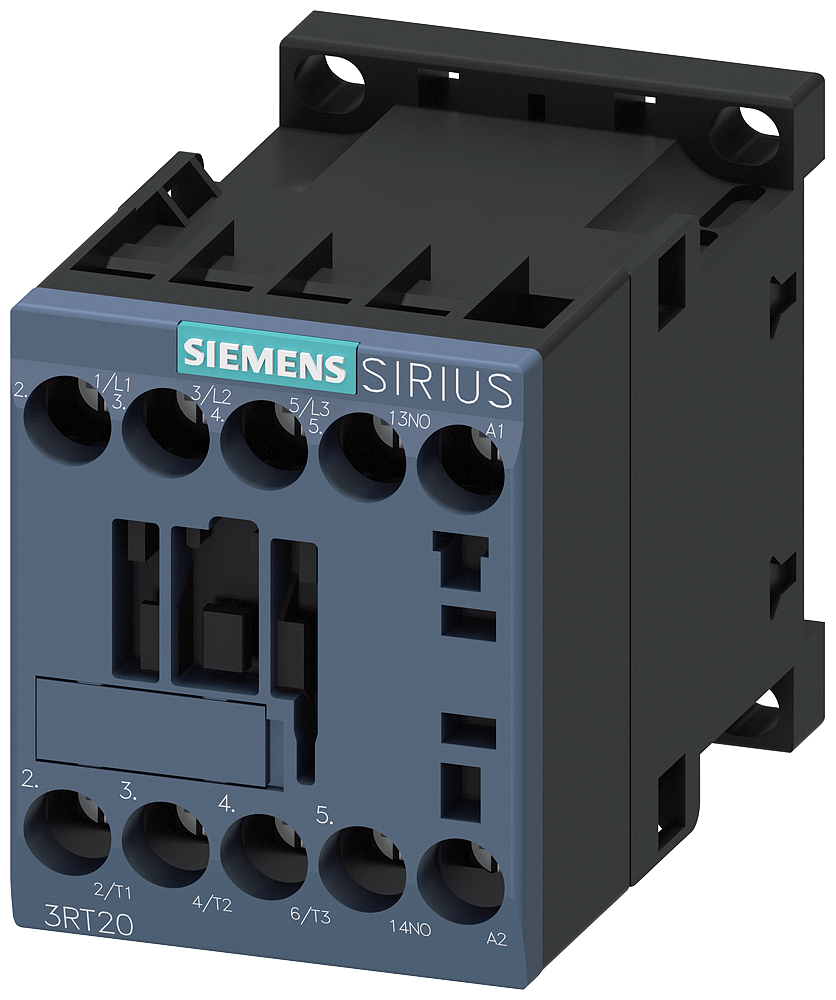

SIRIUS 3RT20151AP61 Instantaneous Switching IEC Contactor 3RT20151AP61, 120 VAC Coil, 0.29166666666666669 Max Load, 1NO
Custom_Product_Images_Illustration
SIRIUS 3RT20151AP61 Instantaneous Switching IEC Contactor 3RT20151AP61, 120 VAC Coil, 0.29166666666666669 Max Load, 1NO
SKU1058804
MFGR #3RT20151AP61
Your Cost: $60.77/ea
List: SIRIUS IEC Contactor, Instantaneous Switching, 120 VAC Coil, 27/24.3 VA Pickup/4.2/53.3 VA Holding Coil Power Rating, 3 Pole, 60 Hz, 3 kW, 1NO, 1NO Auxiliary Contacts, Power Factor: 0.8/0.75 Closing/0.25 Holding, Screw, Size S00, Screw, IP20, 30000000 Contactor/Typical Operating Cycles, -25 to 60 deg C Operating, DIN Rail Mount, 58 mm H x 45 mm W x 73 mm D
SIRIUS IEC Contactor, Instantaneous Switching, 120 VAC Coil, 27/24.3 VA Pickup/4.2/53.3 VA Holding Coil Power Rating, 3 Pole, 60 Hz, 3 kW, 1NO, 1NO Auxiliary Contacts, Power Factor: 0.8/0.75 Closing/0.25 Holding, Screw, Size S00, Screw, IP20, 30000000 Contactor/Typical Operating Cycles, -25 to 60 deg C Operating, DIN Rail Mount, 58 mm H x 45 mm W x 73 mm D
Alternate Catalog Number 3RT2015-1AP61 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20151AP61 Coil Power Rating 4.4/26.4 VA Coil Voltage 220/240 VAC Connection Type Screw Contact Configuration 1NO Country of Origin DE Currency USD Dimensions 58 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 14.87 Gross Volume UOM in Gross Weight Per Pack 0.6160 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.0800 in Height [Metric] 7.8232 cm Length 2.4500 in Length [Metric] 6.2230 cm Manufacturer Siemens Maximum Load Current 6 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 1 Number Of Poles 3 Operating Cycles 30000000 Operating Temperature -25 to 60 Replaced Catalog Number 3RT1015-1AP61 Returnable Y Size S00 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 04089263425 UPC 12 040892634259 Wattage 3 kW Width 1.9700 in Width [Metric] 5.0038 cm 26.4 VA at 50/60 Hz (pick-up), 4.4 VA at 50/60 Hz (holding) magnet coil at AC 0.24 at 50/60 Hz (holding), 0.81 at 50/60 Hz (closing) power factor 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2015-1AP61 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20151AP61 |
| Coil Power Rating | 4.4/26.4 VA |
| Coil Voltage | 220/240 VAC |
| Connection Type | Screw |
| Contact Configuration | 1NO |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 14.87 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6160 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.0800 in |
| Height [Metric] | 7.8232 cm |
| Length | 2.4500 in |
| Length [Metric] | 6.2230 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 6 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 |
| Operating Temperature | -25 to 60 |
| Replaced Catalog Number | 3RT1015-1AP61 |
| Returnable | Y |
| Size | S00 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 04089263425 |
| UPC 12 | 040892634259 |
| Wattage | 3 kW |
| Width | 1.9700 in |
| Width [Metric] | 5.0038 cm |
| 26.4 VA at 50/60 Hz (pick-up), 4.4 VA at 50/60 Hz (holding) magnet coil at AC |
| 0.24 at 50/60 Hz (holding), 0.81 at 50/60 Hz (closing) power factor |
| 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
