Siemens

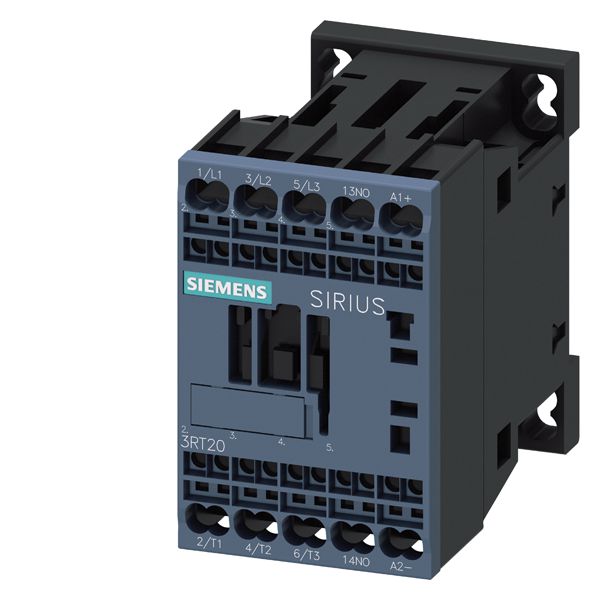

SIRIUS 3RT2015-2BB41 Power Contactor 3RT2015-2BB41, 24 VDC Coil, 7 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RT2015-2BB41 Power Contactor 3RT2015-2BB41, 24 VDC Coil, 7 A Max Load, 3NO, 3 Poles
SKU726836
MFGR #3RT20152BB41
$/ea
SIEMENS 3RT20152BB41 CONTACTOR S00 7A 24VDC 1NO SPRING
SIEMENS 3RT20152BB41 CONTACTOR S00 7A 24VDC 1NO SPRING
Alternate Catalog Number 3RT2015-2BB41 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20152BB41 Coil Power Rating 4 W Coil Voltage 24 VDC Connection spring-loaded terminals Contact Configuration 1NO Contact Rating A600 / Q600 Country of Origin DE Currency USD Dimensions 70 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 298.71 Gross Volume UOM in Gross Weight Per Pack 0.7000 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 2.8500 in Height [Metric] 7.2390 cm Length 2.8000 in Length [Metric] 7.1120 cm Manufacturer Siemens Maximum Load Current 6 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 1 Number Of Poles 3 Operating Cycles 30000000 Operating Temperature -25 to 60 Phase 3 Replaced Catalog Number 3RT1015-2BB41 Returnable Y Size S00 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Sub Brand Sirius Terminal Type Spring-Loaded Type Standard UNSPSC 39121529 UPC 11 66264390936 UPC 12 662643909364 Wattage 3 kW Width 1.7000 in Width [Metric] 4.3180 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. 4 W (closing/holding) magnet coil at DC Contactors in size S00, S0and S2 can be used to configurestar-delta (wye-delta) starters simply by plugging in function modules These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface 3 phase Screw and snap-on mounting onto 35 mm standard mounting rail 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2015-2BB41 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20152BB41 |
| Coil Power Rating | 4 W |
| Coil Voltage | 24 VDC |
| Connection | spring-loaded terminals |
| Contact Configuration | 1NO |
| Contact Rating | A600 / Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 70 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 298.71 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7000 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 2.8500 in |
| Height [Metric] | 7.2390 cm |
| Length | 2.8000 in |
| Length [Metric] | 7.1120 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 6 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Replaced Catalog Number | 3RT1015-2BB41 |
| Returnable | Y |
| Size | S00 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Spring-Loaded |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264390936 |
| UPC 12 | 662643909364 |
| Wattage | 3 kW |
| Width | 1.7000 in |
| Width [Metric] | 4.3180 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| 4 W (closing/holding) magnet coil at DC |
| Contactors in size S00, S0and S2 can be used to configurestar-delta (wye-delta) starters simply by plugging in function modules |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface |
| 3 phase |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
