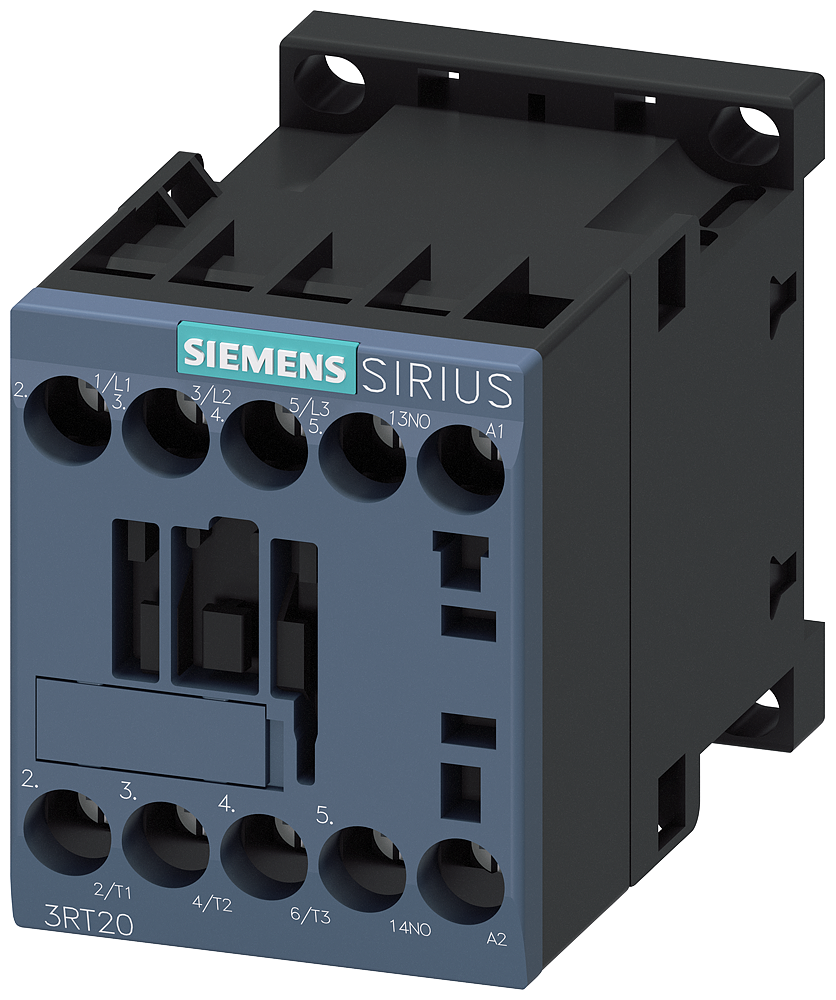

SIRIUS 3RT2015-1AP01 Power Contactor 3RT2015-1AP01, 230 VAC Coil, 7 A Max Load, 3NO, 3 Poles
Contactors
658568
MFG #: 3RT20151AP01
Siemens
54.04000
/ ea
SIEMENS 3RT20151AP01 CONTACTOR S00 7A 230VAC 1NO SCREW
- 3D Rendering URL - G_NSA0_XX_00834V.pdf(3D Rendering URL)
- Catalog URL - SIRIUS_3RA1317_8XB30_1AK6_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - Siemens_3RT20151AP01_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10991_GH30E5BWPFC14OSQ.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RT20151AP01&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RT2015-1AP01&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=3RT2015-1AP01&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Applications
- Features
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| 27 VA at 50 Hz/24.3 VA at 60 Hz (pick-up), 4.2 VA at 50 Hz/3.3 VA at 60 Hz (holding) magnet coil at AC |
| 0.25 at 50/60 Hz (holding), 0.8 at 50 Hz/0.75 at 60 Hz (closing) power factor |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| Can be tilted forward and backward by +/- 22.5 deg on vertical mounting surface |
| 3 phase |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
