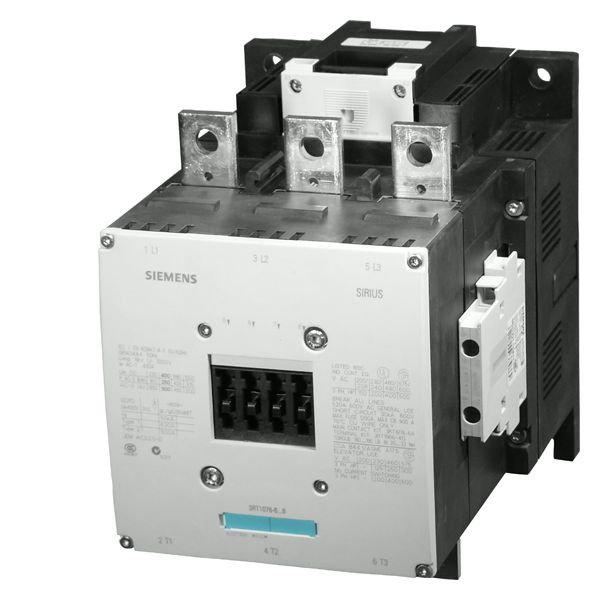

SIRIUS 3RT1075-6AR36 Power Contactor 3RT1075-6AR36, 440 to 480 VAC/VDC Coil, 400 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS 3RT1075-6AR36 Power Contactor 3RT1075-6AR36, 440 to 480 VAC/VDC Coil, 400 A Max Load, 3NO, 3 Poles
SKU474008
MFGR #3RT1075-6AR36
Your Cost: $2,302.93/ea
List: SIEMENS 3RT1075-6AR36 CONTACTOR
SIEMENS 3RT1075-6AR36 CONTACTOR
Alternate Catalog Number 3RT1075-6AR36 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT1075-6AR36 Coil Power Rating 830 VA Pickup/920 W Closing/9.2 VA/10 W Holding Coil Voltage 440 to 480 VAC//VDC Connection screw-type terminals Connection Type Screw Contact Configuration 3NO Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 214 mm H x 160 mm W x 225 mm D Enclosure Type IP20/IP00 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 1118.86 Gross Volume UOM in Gross Weight Per Pack 22.6600 lb Gross Weight per Pack Metric 10.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 10.7100 in Height [Metric] 27.2034 cm Length 9.1800 in Length [Metric] 23.3172 cm Manufacturer Siemens Maximum Load Current 400 A Mounting Screw fixing Mounting Type Threaded/Screw Fixing Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Power Factor 1.00 Returnable Y Size Size S12 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCSA CertifiedCE CertifiedUL ListedEAC Approved Stock Status NONSTOCK Sub Brand SIRIUS Terminal Type Screw/Spring Loaded Type Standard UNSPSC 39121529 UPC 11 75455477271 UPC 12 754554772714 Wattage 200 kW Width 11.3800 in Width [Metric] 28.9052 cm Contactors for switching motors Spring loaded or screw terminals These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring 3-phase
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT1075-6AR36 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT1075-6AR36 |
| Coil Power Rating | 830 VA Pickup/920 W Closing/9.2 VA/10 W Holding |
| Coil Voltage | 440 to 480 VAC//VDC |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 214 mm H x 160 mm W x 225 mm D |
| Enclosure Type | IP20/IP00 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1118.86 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 22.6600 lb |
| Gross Weight per Pack Metric | 10.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 10.7100 in |
| Height [Metric] | 27.2034 cm |
| Length | 9.1800 in |
| Length [Metric] | 23.3172 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 400 A |
| Mounting | Screw fixing |
| Mounting Type | Threaded/Screw Fixing |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Power Factor | 1.00 |
| Returnable | Y |
| Size | Size S12 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCSA CertifiedCE CertifiedUL ListedEAC Approved |
| Stock Status | NONSTOCK |
| Sub Brand | SIRIUS |
| Terminal Type | Screw/Spring Loaded |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 75455477271 |
| UPC 12 | 754554772714 |
| Wattage | 200 kW |
| Width | 11.3800 in |
| Width [Metric] | 28.9052 cm |
| Contactors for switching motors |
| Spring loaded or screw terminals |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| 3-phase |
