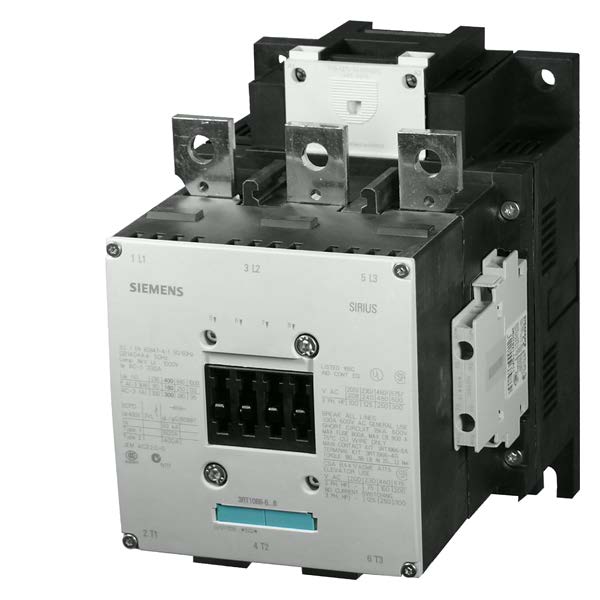

SIRIUS 3RT1064-6AB36 Power Contactor 3RT1064-6AB36, 23 to 26 VAC/VDC Coil, 225 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS 3RT1064-6AB36 Power Contactor 3RT1064-6AB36, 23 to 26 VAC/VDC Coil, 225 A Max Load, 3NO, 3 Poles
SKU372867
MFGR #3RT1064-6AB36
Your Cost: $1,162.97/ea
List: SIEMENS 3RT1064-6AB36 CONTACTOR
SIEMENS 3RT1064-6AB36 CONTACTOR
Alternate Catalog Number 3RT1064-6AB36 Application Contactors for switching motors ARRA Compliant C Buy American Compliant C Catalog Number 3RT1064-6AB36 Coil Power Rating 6.7/590 VA, 7.4/650 W Connection screw-type terminals Connection Type Screw Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 210 mm H x 145 mm W x 202 mm D Enclosure Type IP00/IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 743.11 Gross Volume UOM in Gross Weight Per Pack 14.3260 lb Gross Weight per Pack Metric 6.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 9.2200 in Height [Metric] 23.4188 cm Length 7.7200 in Length [Metric] 19.6088 cm Mounting Screw fixing Mounting Type Threaded Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Power Factor 1.00 Returnable Y Size S10 Standards RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved Sub Brand Sirius Terminal Type Busbar UNSPSC 39121529 UPC 11 75455477237 UPC 12 754554772370 Wattage 110 kW Width 10.4400 in Width [Metric] 26.5176 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Coil Voltage 23 to 26 VAC//VDC Contact Configuration 2NO-2NC Maximum Load Current 225 A Type Standard Contactors for switching motors Spring loaded or screw terminals 590 VA at 50 Hz (pick-up), 6.7 VA at 50 Hz (holding) magnet coil at AC, 650 W (closing), 7.4 W (holding) magnet coil at DC 0.9 at 50 Hz (closing/holding) power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT1064-6AB36 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 3RT1064-6AB36 |
| Coil Power Rating | 6.7/590 VA, 7.4/650 W |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 210 mm H x 145 mm W x 202 mm D |
| Enclosure Type | IP00/IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 743.11 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 14.3260 lb |
| Gross Weight per Pack Metric | 6.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 9.2200 in |
| Height [Metric] | 23.4188 cm |
| Length | 7.7200 in |
| Length [Metric] | 19.6088 cm |
| Mounting | Screw fixing |
| Mounting Type | Threaded |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Power Factor | 1.00 |
| Returnable | Y |
| Size | S10 |
| Standards | RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved |
| Sub Brand | Sirius |
| Terminal Type | Busbar |
| UNSPSC | 39121529 |
| UPC 11 | 75455477237 |
| UPC 12 | 754554772370 |
| Wattage | 110 kW |
| Width | 10.4400 in |
| Width [Metric] | 26.5176 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Coil Voltage | 23 to 26 VAC//VDC |
| Contact Configuration | 2NO-2NC |
| Maximum Load Current | 225 A |
| Type | Standard |
| Contactors for switching motors |
| Spring loaded or screw terminals |
| 590 VA at 50 Hz (pick-up), 6.7 VA at 50 Hz (holding) magnet coil at AC, 650 W (closing), 7.4 W (holding) magnet coil at DC |
| 0.9 at 50 Hz (closing/holding) power factor |
