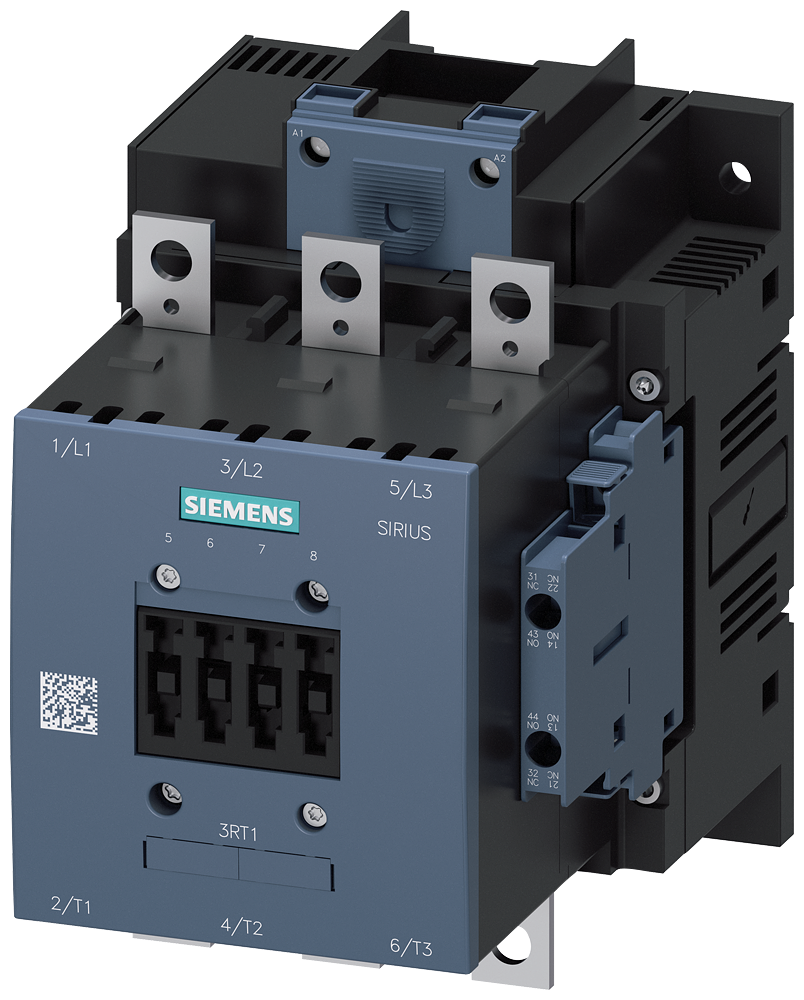

SIRIUS 3RT1056-6AF36-0UA0 Power Contactor 3RT1056-6AF36-0UA0, 110 VAC/127 VDC Coil, 185 A Max Load, 3NO, 3 Poles

Custom_Product_Images_Illustration

SKU646096

MFGR #3RT1056-6AF36-0UA0

Your Cost: $1,743.74/ea

List: ~~$3,843.00~~ /ea

SIEMENS 3RT1056-6AF36-0UA0 CONTACTOR SIRIUS NEMA SIZE 4 120V COIL

: Alternate Catalog Number
3RT1056-6AF36-0UA0
ARRA Compliant
C
Brand
Siemens
Buy American Compliant
C
Catalog Number
3RT1056-6AF36-0UA0
Coil Power Rating
5.8/300 VA, 5.2/360 W
Coil Voltage
110 to 127 VAC//VDC
Contact Configuration
2NO-2NC
Country of Origin
DE
Currency
USD
Dimensions
172 mm H x 120 mm W x 170 mm D
Enclosure Type
IP00/IP20
EU RoHS Indicator
C
Frequency Rating
40/60 Hz
Gross Volume Per Pack
271.30
Gross Volume UOM
in
Gross Weight Per Pack
7.4120 lb
Gross Weight per Pack Metric
3.36
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536490065
Height
7.1300 in
Height [Metric]
18.1102 cm
Length
5.0800 in
Length [Metric]
12.9032 cm
Manufacturer
Siemens
Maximum Load Current
185 A
Mounting Type
Threaded
Number of Auxiliary Contacts
4
Number Of Poles
3
Operating Cycles
10000000
Operating Temperature
-25 to 60
Returnable
Y
Size
S6
Standards
RoHS CompliantWEEE 2012/19/EUREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved
Stock Status
NONSTOCK
Terminal Type
Busbar
Type
Standard
UNSPSC
39121529
UPC 11
75455484896
UPC 12
754554848969
Wattage
90 kW
Width
7.4900 in
Width [Metric]
19.0246 cm
: 3D Rendering
Catalog
Computer~Aided [CAD|BIM] Model
Seller Home Page
Spec Sheet 1
Spec Sheet
Spec Sheet
Spec Sheet
User Manual
: 300 VA at 50 Hz (pick-up), 5.8 VA at 50 Hz (holding) magnet coil at AC, 360 W (closing), 5.2 W (holding) magnet coil at DC

0.9 (closing), 0.8 (holding) power factor

Alternate Catalog Number	3RT1056-6AF36-0UA0
ARRA Compliant	C
Brand	Siemens
Buy American Compliant	C
Catalog Number	3RT1056-6AF36-0UA0
Coil Power Rating	5.8/300 VA, 5.2/360 W
Coil Voltage	110 to 127 VAC//VDC
Contact Configuration	2NO-2NC
Country of Origin	DE
Currency	USD
Dimensions	172 mm H x 120 mm W x 170 mm D
Enclosure Type	IP00/IP20
EU RoHS Indicator	C
Frequency Rating	40/60 Hz
Gross Volume Per Pack	271.30
Gross Volume UOM	in
Gross Weight Per Pack	7.4120 lb
Gross Weight per Pack Metric	3.36
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536490065
Height	7.1300 in
Height [Metric]	18.1102 cm
Length	5.0800 in
Length [Metric]	12.9032 cm
Manufacturer	Siemens
Maximum Load Current	185 A
Mounting Type	Threaded
Number of Auxiliary Contacts	4
Number Of Poles	3
Operating Cycles	10000000
Operating Temperature	-25 to 60
Returnable	Y
Size	S6
Standards	RoHS CompliantWEEE 2012/19/EUREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved
Stock Status	NONSTOCK
Terminal Type	Busbar
Type	Standard
UNSPSC	39121529
UPC 11	75455484896
UPC 12	754554848969
Wattage	90 kW
Width	7.4900 in
Width [Metric]	19.0246 cm
