Siemens

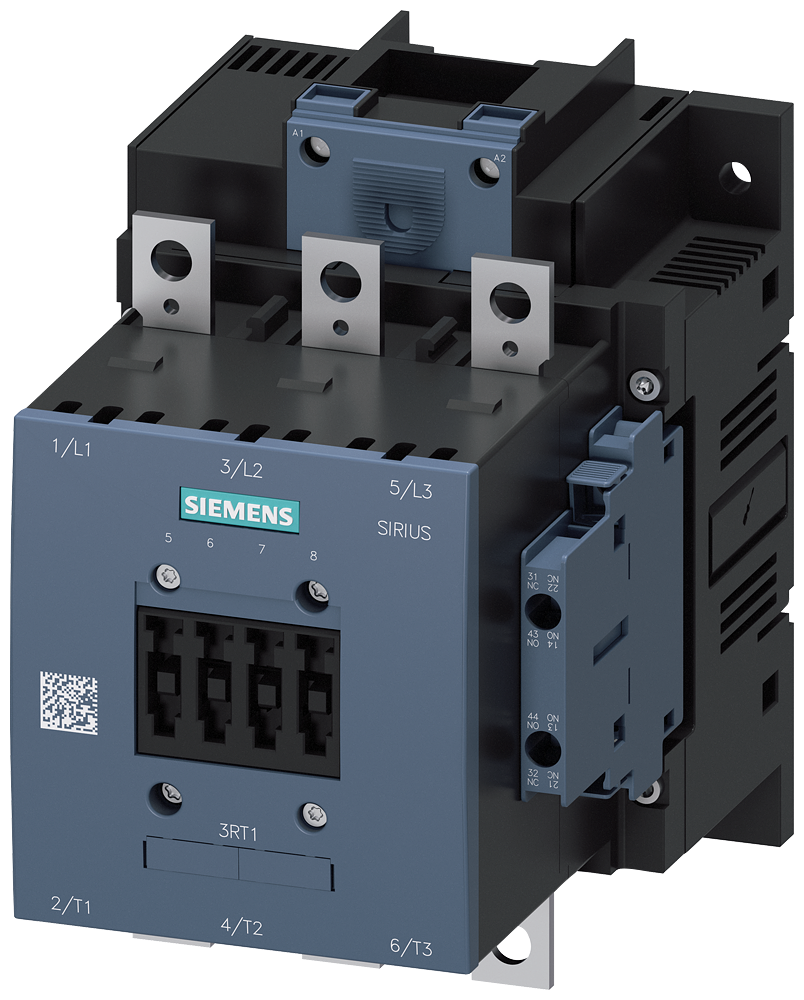

SIRIUS 3RT1054-6AP36 Standard IEC Contactor 3RT1054-6AP36, 220 VAC/240 VDC Coil, 115 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RT1054-6AP36 Standard IEC Contactor 3RT1054-6AP36, 220 VAC/240 VDC Coil, 115 A Max Load, 3NO, 3 Poles
SKU327498
MFGR #3RT1054-6AP36
Your Cost: $661.33/ea
List: SIEMENS 3RT1054-6AP36 115A CONTACTOR
SIEMENS 3RT1054-6AP36 115A CONTACTOR
Alternate Catalog Number 3RT1054-6AP36 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT1054-6AP36 Coil Power Rating 300 VA Pickup/5.8 VA Holding Coil Voltage 220 VAC/240 VDC Connection screw-type terminals Connection Type Screw Contact Configuration 3NO Contact Rating A600/Q600 Contact Type Non-Reversing Country of Origin DE Currency USD Dimensions 172 mm H x 120 mm W x 170 mm D Enclosure Type IP00 EU RoHS Indicator C Frequency Rating 40/60 Hz Gross Volume Per Pack 271.30 Gross Volume UOM in Gross Weight Per Pack 7.3000 lb Gross Weight per Pack Metric 3.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 7.1300 in Height [Metric] 18.1102 cm Length 5.0800 in Length [Metric] 12.9032 cm Manufacturer Siemens Maximum Load Current 115 A Mounting Screw fixing Mounting Type Screw Fixing Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Returnable Y Size Size S6 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E31519 (Vol 11 Sec 5) Stock Status NONSTOCK Sub Brand Sirius Terminal Type Screw/Spring Loaded Type Standard UNSPSC 39121529 UPC 11 75455477158 UPC 12 754554771588 Wattage 92 kW Width 7.4900 in Width [Metric] 19.0246 cm Contactors for switching motors Spring loaded or screw terminals Without suppression lugs 3-phase 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT1054-6AP36 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT1054-6AP36 |
| Coil Power Rating | 300 VA Pickup/5.8 VA Holding |
| Coil Voltage | 220 VAC/240 VDC |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Contact Type | Non-Reversing |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 172 mm H x 120 mm W x 170 mm D |
| Enclosure Type | IP00 |
| EU RoHS Indicator | C |
| Frequency Rating | 40/60 Hz |
| Gross Volume Per Pack | 271.30 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 7.3000 lb |
| Gross Weight per Pack Metric | 3.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 7.1300 in |
| Height [Metric] | 18.1102 cm |
| Length | 5.0800 in |
| Length [Metric] | 12.9032 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 115 A |
| Mounting | Screw fixing |
| Mounting Type | Screw Fixing |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Returnable | Y |
| Size | Size S6 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E31519 (Vol 11 Sec 5) |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Screw/Spring Loaded |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 75455477158 |
| UPC 12 | 754554771588 |
| Wattage | 92 kW |
| Width | 7.4900 in |
| Width [Metric] | 19.0246 cm |
| Contactors for switching motors |
| Spring loaded or screw terminals |
| Without suppression lugs |
| 3-phase |
| 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
