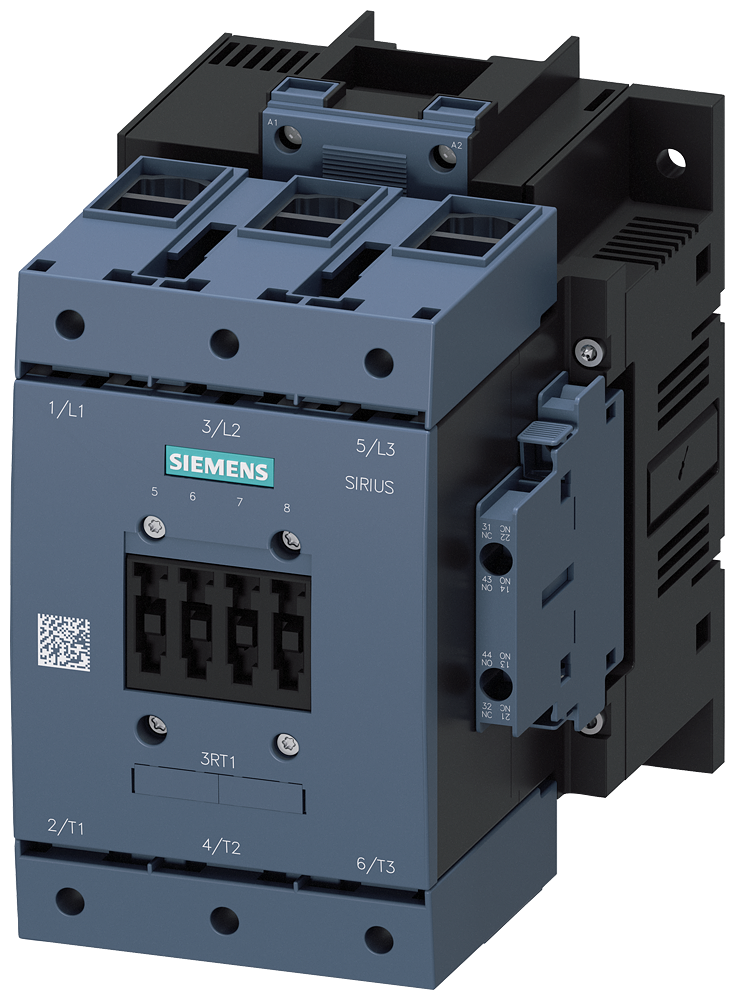

SIRIUS 3RT1054-1AR36 Power Contactor With Box Terminals, Conventional Operating Mechanical Screw Terminal, 3NO
Custom_Product_Images_Illustration
SIRIUS 3RT1054-1AR36 Power Contactor With Box Terminals, Conventional Operating Mechanical Screw Terminal, 3NO
SKU565394
MFGR #3RT1054-1AR36
Your Cost: $703.26/ea
List: SIEMENS 3RT1054-1AR36 CONTACTOR NONREV S6 115A 440-480V 3P LUG
SIEMENS 3RT1054-1AR36 CONTACTOR NONREV S6 115A 440-480V 3P LUG
Alternate Catalog Number 3RT1054-1AR36 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT1054-1AR36 Coil Power Rating 5.8/300 VA, 5.2/360 W Coil Voltage 440 to 480 VAC//VDC Contact Configuration 2NO-2NC Country of Origin DE Currency USD Dimensions 172 mm H x 120 mm W x 170 mm D Enclosure Type IP00/IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 271.30 Gross Volume UOM in Gross Weight Per Pack 8.0100 lb Gross Weight per Pack Metric 3.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 7.1300 in Height [Metric] 18.1102 cm Length 5.0800 in Length [Metric] 12.9032 cm Manufacturer Siemens Maximum Load Current 115 A Mounting Type Threaded Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Returnable Y Size S6 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved Stock Status NONSTOCK Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 75455496285 UPC 12 754554962856 Wattage 55 kW Width 7.4900 in Width [Metric] 19.0246 cm 300 VA at 50 Hz (pick-up), 5.8 VA at 50 Hz (holding) magnet coil at AC, 360 W (closing), 5.2 W (holding) magnet coil at DC 0.9 (closing), 0.8 (holding) power factor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Alternate Catalog Number | 3RT1054-1AR36 |
ARRA Compliant | C |
Brand | Siemens |
Buy American Compliant | C |
Catalog Number | 3RT1054-1AR36 |
Coil Power Rating | 5.8/300 VA, 5.2/360 W |
Coil Voltage | 440 to 480 VAC//VDC |
Contact Configuration | 2NO-2NC |
Country of Origin | DE |
Currency | USD |
Dimensions | 172 mm H x 120 mm W x 170 mm D |
Enclosure Type | IP00/IP20 |
EU RoHS Indicator | C |
Frequency Rating | 50/60 Hz |
Gross Volume Per Pack | 271.30 |
Gross Volume UOM | in |
Gross Weight Per Pack | 8.0100 lb |
Gross Weight per Pack Metric | 3.63 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 8536490065 |
Height | 7.1300 in |
Height [Metric] | 18.1102 cm |
Length | 5.0800 in |
Length [Metric] | 12.9032 cm |
Manufacturer | Siemens |
Maximum Load Current | 115 A |
Mounting Type | Threaded |
Number of Auxiliary Contacts | 4 |
Number Of Poles | 3 |
Operating Cycles | 10000000 |
Operating Temperature | -25 to 60 |
Returnable | Y |
Size | S6 |
Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved |
Stock Status | NONSTOCK |
Terminal Type | Screw |
Type | Standard |
UNSPSC | 39121529 |
UPC 11 | 75455496285 |
UPC 12 | 754554962856 |
Wattage | 55 kW |
Width | 7.4900 in |
Width [Metric] | 19.0246 cm |
300 VA at 50 Hz (pick-up), 5.8 VA at 50 Hz (holding) magnet coil at AC, 360 W (closing), 5.2 W (holding) magnet coil at DC |
0.9 (closing), 0.8 (holding) power factor |
