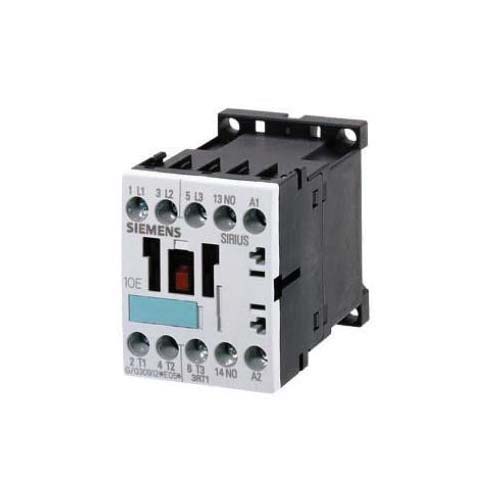

SIRIUS 3RT1017-1AV61 Power Contactor 3RT1017-1AV61, 480 VAC Coil, 12 A Max Load, 3NO/0NC, 3 Poles

SKU182834

MFGR #3RT1017-1AV61

Your Cost: $69.23/ea

List: ~~$155.14~~ /ea

SIEMENS 3RT1017-1AV61 12A 480V CONTACTR

: Brand
SIRIUS (Siemens)
Catalog Number
3RT1017-1AV61
Coil Power Rating
31.7 VA Pickup/5.1 VA Holding
Coil Voltage
480 VAC
Contact Configuration
3NO/0NC
Country of Origin
DE
Dimensions
57-1/2 mm H x 45 mm W x 72 mm D
Enclosure Type
IP20
Frequency Rating
60 Hz
Gross Weight Per Pack
0.4500 lb
Manufacturer
Siemens
Maximum Load Current
12 A
Mounting Type
Threaded/Snap-On/DIN Rail
Number of Auxiliary Contacts
1NO
Number Of Poles
3
Operating Cycles
30000000
Operating Temperature
-25 to 60 °C
Returnable
N
Size
Size S00
Standards
UL Listed, CCC, CE, CSA, EAC Certified
Stock Status
NONSTOCK
Terminal
Screw
UNSPSC
39121529
UPC 11
75455448238
UPC 12
75455448238
Wattage
5.5 kW
: Seller Home Page
Spec Sheet 1
: These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring

Seller Home Page
Spec Sheet 1

Brand	SIRIUS (Siemens)
Catalog Number	3RT1017-1AV61
Coil Power Rating	31.7 VA Pickup/5.1 VA Holding
Coil Voltage	480 VAC
Contact Configuration	3NO/0NC
Country of Origin	DE
Dimensions	57-1/2 mm H x 45 mm W x 72 mm D
Enclosure Type	IP20
Frequency Rating	60 Hz
Gross Weight Per Pack	0.4500 lb
Manufacturer	Siemens
Maximum Load Current	12 A
Mounting Type	Threaded/Snap-On/DIN Rail
Number of Auxiliary Contacts	1NO
Number Of Poles	3
Operating Cycles	30000000
Operating Temperature	-25 to 60 °C
Returnable	N
Size	Size S00
Standards	UL Listed, CCC, CE, CSA, EAC Certified
Stock Status	NONSTOCK
Terminal	Screw
UNSPSC	39121529
UPC 11	75455448238
UPC 12	75455448238
Wattage	5.5 kW
