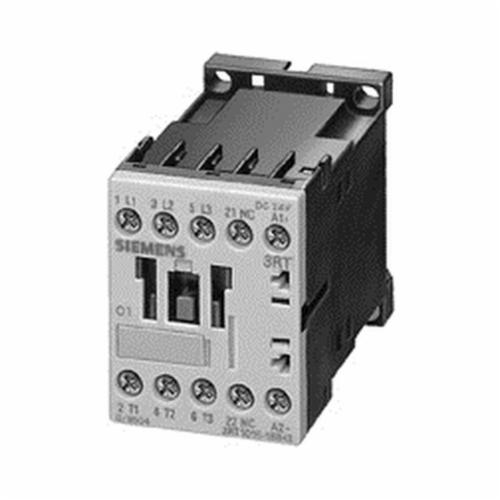

SIRIUS 3RT1017-1AK62 Power Contactor 3RT1017-1AK62, 110/120 VAC Coil, 12 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS 3RT1017-1AK62 Power Contactor 3RT1017-1AK62, 110/120 VAC Coil, 12 A Max Load, 3NO, 3 Poles
SKU82298
MFGR #3RT1017-1AK62
Your Cost: $72.72/ea
List: SIEMENS 3RT1017-1AK62 12A 120V CONTACTR
SIEMENS 3RT1017-1AK62 12A 120V CONTACTR
Brand SIRIUS (Siemens) Catalog Number 3RT1017-1AK62 Coil Power Rating 31.7 VA Pickup/5.1 VA Holding Coil Voltage 110/120 VAC Contact Configuration 3NO Country of Origin DE Dimensions 57-1/2mm H x 45mm W x 72 mm D Enclosure Type IP20 Frequency Rating 50/60 Hz Gross Weight Per Pack 0.4500 lb Manufacturer Siemens Maximum Load Current 12 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 1NC Number Of Poles 3 Operating Cycles 30000000 Operating Temperature -25 to 60 Returnable N Size Size S00 Standards UL Listed, CCC, CE, CSA, EAC Certified, RoHS, ARRA, Buy American Act Compliant Stock Status NONSTOCK Terminal Type Screw UNSPSC 39121529 UPC 11 75455441072 UPC 12 75455441072 Wattage 5.5 kW These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Brand | SIRIUS (Siemens) |
| Catalog Number | 3RT1017-1AK62 |
| Coil Power Rating | 31.7 VA Pickup/5.1 VA Holding |
| Coil Voltage | 110/120 VAC |
| Contact Configuration | 3NO |
| Country of Origin | DE |
| Dimensions | 57-1/2mm H x 45mm W x 72 mm D |
| Enclosure Type | IP20 |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.4500 lb |
| Manufacturer | Siemens |
| Maximum Load Current | 12 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 1NC |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 |
| Operating Temperature | -25 to 60 |
| Returnable | N |
| Size | Size S00 |
| Standards | UL Listed, CCC, CE, CSA, EAC Certified, RoHS, ARRA, Buy American Act Compliant |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| UNSPSC | 39121529 |
| UPC 11 | 75455441072 |
| UPC 12 | 75455441072 |
| Wattage | 5.5 kW |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
