Siemens

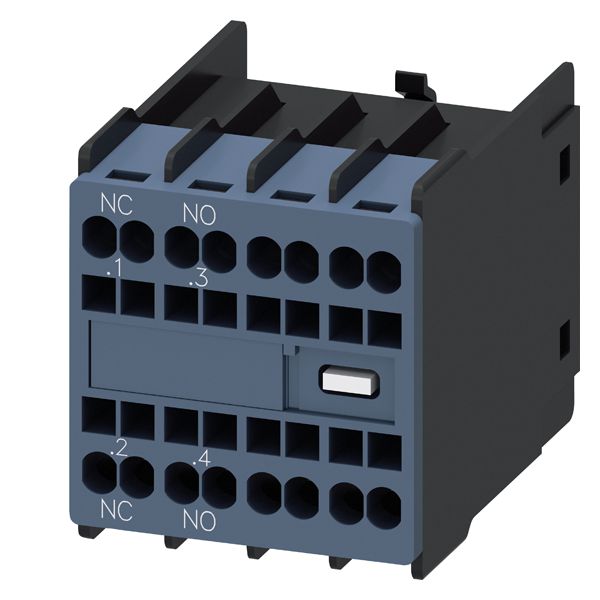

SIRIUS 3RH29112HA11 Auxiliary Switch Block, 690 VAC/600 VDC, 1/0.26 A, 2 Contacts
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RH29112HA11 Auxiliary Switch Block, 690 VAC/600 VDC, 1/0.26 A, 2 Contacts
SKU726813
MFGR #3RH29112HA11
Your Cost: $17.05/ea
List: SIRIUS Auxiliary Switch Block, 690 VAC/600 VDC, 1/0.26 A, 2 Contacts, Snap-On Mount, 200000 Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C Temperature, For Use With: 3RT2 S00, S0 Contactor, 41.5mm H x 36 mm W x 47.7mm D
SIRIUS Auxiliary Switch Block, 690 VAC/600 VDC, 1/0.26 A, 2 Contacts, Snap-On Mount, 200000 Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C Temperature, For Use With: 3RT2 S00, S0 Contactor, 41.5mm H x 36 mm W x 47.7mm D
Alternate Catalog Number 3RH2911-2HA11 Amperage Rating 1/3/10 A ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RH29112HA11 Contact Resistance 6 Country of Origin CZ Currency USD Dimensions 41.5 mm H x 36 mm W x 47.7 mm D Environmental Conditions -55 to 80 deg C Storage Temperature EU RoHS Indicator C Gross Volume Per Pack 225.80 Gross Volume UOM in Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509065 Height 2.3000 in Height [Metric] 5.8420 cm Length 10.5000 in Length [Metric] 26.6700 cm Manufacturer Siemens Mounting Type Snap-On Number of Contacts 2 Operating Cycles 200000 Cycles Operating Temperature -25 to 60 °C Replaced Catalog Number 3RH1921-2HA22 Returnable Y Size Size S00 Standards CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedRoHS CompliantABS ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedVDE Approved Stock Status NONSTOCK Suitable For Use With 3RH Contactor Relay, 3RT Contactor, Power Contactor UNSPSC 39121522 UPC 11 66264391039 UPC 12 662643910391 Voltage Rating 24/230 VAC/24/110/220 VDC Width 9.3500 in Width [Metric] 23.7490 cm 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC 10000000 mechanical/200000 electrical cycles 6 A/1 A at 24/690 VAC AC-15, 10 A/0.26 A at 24/600 VDC DC-13 1NO-1NC contact configuration Auxiliary switch can be snapped onto the front side
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RH2911-2HA11 |
| Amperage Rating | 1/3/10 A |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RH29112HA11 |
| Contact Resistance | 6 |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 41.5 mm H x 36 mm W x 47.7 mm D |
| Environmental Conditions | -55 to 80 deg C Storage Temperature |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 225.80 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 2.3000 in |
| Height [Metric] | 5.8420 cm |
| Length | 10.5000 in |
| Length [Metric] | 26.6700 cm |
| Manufacturer | Siemens |
| Mounting Type | Snap-On |
| Number of Contacts | 2 |
| Operating Cycles | 200000 Cycles |
| Operating Temperature | -25 to 60 °C |
| Replaced Catalog Number | 3RH1921-2HA22 |
| Returnable | Y |
| Size | Size S00 |
| Standards | CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedRoHS CompliantABS ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Suitable For Use With | 3RH Contactor Relay, 3RT Contactor, Power Contactor |
| UNSPSC | 39121522 |
| UPC 11 | 66264391039 |
| UPC 12 | 662643910391 |
| Voltage Rating | 24/230 VAC/24/110/220 VDC |
| Width | 9.3500 in |
| Width [Metric] | 23.7490 cm |
| 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC |
| 10000000 mechanical/200000 electrical cycles |
| 6 A/1 A at 24/690 VAC AC-15, 10 A/0.26 A at 24/600 VDC DC-13 |
| 1NO-1NC contact configuration |
| Auxiliary switch can be snapped onto the front side |
