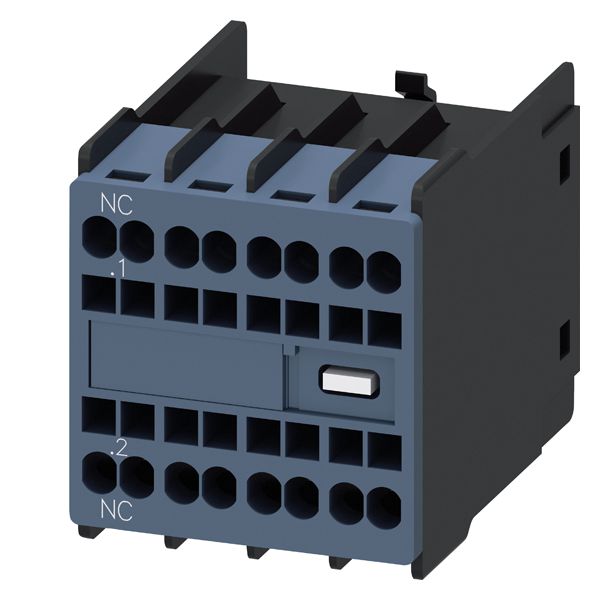

SIRIUS 3RH29112HA01 Auxiliary Switch Block, 690 VAC/600 VDC, 1/0.26 A, 1 Contact
Custom_Product_Images_Illustration
SIRIUS 3RH29112HA01 Auxiliary Switch Block, 690 VAC/600 VDC, 1/0.26 A, 1 Contact
SKU726811
MFGR #3RH29112HA01
Your Cost: $13.50/ea
List: SIRIUS Auxiliary Switch Block, 690 VAC/600 VDC, 1/0.26 A, 1 Contact, Snap-On Mount, 200000 Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C Temperature, For Use With: 3RT2 S00, S0 Contactor, 41.5mm H x 36 mm W x 47.7mm D
SIRIUS Auxiliary Switch Block, 690 VAC/600 VDC, 1/0.26 A, 1 Contact, Snap-On Mount, 200000 Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C Temperature, For Use With: 3RT2 S00, S0 Contactor, 41.5mm H x 36 mm W x 47.7mm D
Alternate Catalog Number 3RH2911-2HA01 Amperage Rating 1/3/10 A ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RH29112HA01 Country of Origin CZ Currency USD Dimensions 41.5 mm H x 36 mm W x 47.7 mm D Environmental Conditions -55 to 80 deg C Storage Temperature EU RoHS Indicator C Gross Volume Per Pack 9.97 Gross Volume UOM in Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509065 Height 1.8500 in Height [Metric] 4.6990 cm Length 2.4500 in Length [Metric] 6.2230 cm Manufacturer Siemens Mounting Type Snap-On Number of Contacts 1 Operating Temperature -25 to 60 °C Replaced Catalog Number 3RH1911-2HA01 Returnable Y Standards CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedRoHS CompliantABS ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedVDE Approved Stock Status NONSTOCK Suitable For Use With 3RH Contactor Relay, 3RT Contactor, Power Contactor UNSPSC 39121522 UPC 11 66264391035 UPC 12 662643910353 Voltage Rating 24/230 VAC/24/110/220 VDC Width 2.2000 in Width [Metric] 5.5880 cm 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC 10000000 mechanical/200000 electrical cycles 6 A/1 A at 24/690 VAC AC-15, 10 A/0.26 A at 24/600 VDC DC-13 1NC contact configuration Auxiliary switch can be snapped onto the front side
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RH2911-2HA01 |
| Amperage Rating | 1/3/10 A |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RH29112HA01 |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 41.5 mm H x 36 mm W x 47.7 mm D |
| Environmental Conditions | -55 to 80 deg C Storage Temperature |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 9.97 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 1.8500 in |
| Height [Metric] | 4.6990 cm |
| Length | 2.4500 in |
| Length [Metric] | 6.2230 cm |
| Manufacturer | Siemens |
| Mounting Type | Snap-On |
| Number of Contacts | 1 |
| Operating Temperature | -25 to 60 °C |
| Replaced Catalog Number | 3RH1911-2HA01 |
| Returnable | Y |
| Standards | CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedRoHS CompliantABS ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Suitable For Use With | 3RH Contactor Relay, 3RT Contactor, Power Contactor |
| UNSPSC | 39121522 |
| UPC 11 | 66264391035 |
| UPC 12 | 662643910353 |
| Voltage Rating | 24/230 VAC/24/110/220 VDC |
| Width | 2.2000 in |
| Width [Metric] | 5.5880 cm |
| 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC |
| 10000000 mechanical/200000 electrical cycles |
| 6 A/1 A at 24/690 VAC AC-15, 10 A/0.26 A at 24/600 VDC DC-13 |
| 1NC contact configuration |
| Auxiliary switch can be snapped onto the front side |
