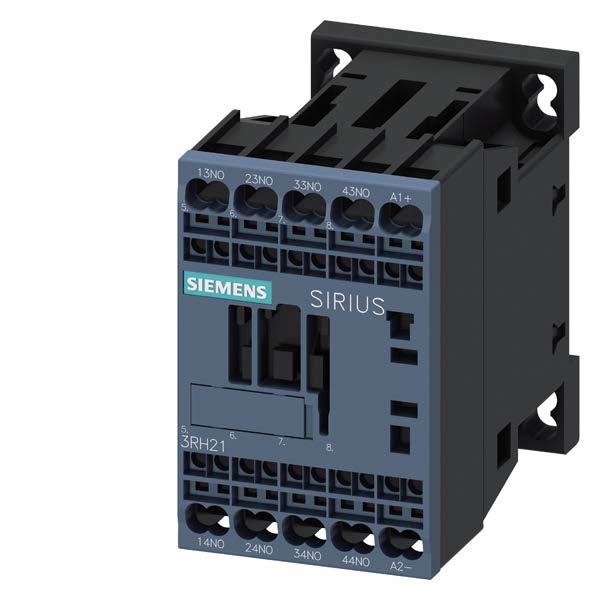

SIRIUS 3RH21402BB40 Contactor Control Relay, 4NO Contact Form, 24 VDC Coil
Custom_Product_Images_Illustration
SIRIUS 3RH21402BB40 Contactor Control Relay, 4NO Contact Form, 24 VDC Coil
SKU726807
MFGR #3RH21402BB40
Your Cost: $84.34/ea
List: SIEMENS 3RH21402BB40 CONTACTOR RELAY 4NO DC 24V SPRING
SIEMENS 3RH21402BB40 CONTACTOR RELAY 4NO DC 24V SPRING
Alternate Catalog Number 3RH2140-2BB40 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RH21402BB40 Coil Voltage 24 VDC Contact Form 4NO Contact Rating 10/1 A at 230/690 VAC, 10/0.15 A at 24/600 VDC Country of Origin DE Currency USD Dimensions 57.5 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 18.34 Gross Volume UOM in Gross Weight Per Pack 0.6600 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 2.8500 in Height [Metric] 7.2390 cm Length 3.3000 in Length [Metric] 8.3820 cm Manufacturer Siemens Mounting Type Snap-On Number Of Poles 4 Replaced Catalog Number 3RH1140-2BB40 Returnable Y Standards ARRA, Buy American Act and RoHS Compliant, CE, CCC, CSA Certified, EAC Standard, EN 60947-1, EN 60947-5-1, IEC 60947-1, IEC 60947-5-1, UL Listed Stock Status NONSTOCK Temperature Rating -25 to 60 °C Terminal Type Spring Loaded UNSPSC 39121521 UPC 11 66264390705 UPC 12 662643907056 Width 1.9500 in Width [Metric] 4.9530 cm The 3RH2 contactor relays are suitable for use in any climate The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals S00 size of contactor Contact rating of auxiliary contacts according to UL is A600, Q600 They are finger safe according to EN 50274 10/1 A at 230/690 VAC AC-15, 10/0.15 A at 24/600 VDC DC-12 Four contacts are available in the basic unit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RH2140-2BB40 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RH21402BB40 |
| Coil Voltage | 24 VDC |
| Contact Form | 4NO |
| Contact Rating | 10/1 A at 230/690 VAC, 10/0.15 A at 24/600 VDC |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 18.34 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6600 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 2.8500 in |
| Height [Metric] | 7.2390 cm |
| Length | 3.3000 in |
| Length [Metric] | 8.3820 cm |
| Manufacturer | Siemens |
| Mounting Type | Snap-On |
| Number Of Poles | 4 |
| Replaced Catalog Number | 3RH1140-2BB40 |
| Returnable | Y |
| Standards | ARRA, Buy American Act and RoHS Compliant, CE, CCC, CSA Certified, EAC Standard, EN 60947-1, EN 60947-5-1, IEC 60947-1, IEC 60947-5-1, UL Listed |
| Stock Status | NONSTOCK |
| Temperature Rating | -25 to 60 °C |
| Terminal Type | Spring Loaded |
| UNSPSC | 39121521 |
| UPC 11 | 66264390705 |
| UPC 12 | 662643907056 |
| Width | 1.9500 in |
| Width [Metric] | 4.9530 cm |
| The 3RH2 contactor relays are suitable for use in any climate |
| The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals |
| S00 size of contactor |
| Contact rating of auxiliary contacts according to UL is A600, Q600 |
| They are finger safe according to EN 50274 |
| 10/1 A at 230/690 VAC AC-15, 10/0.15 A at 24/600 VDC DC-12 |
| Four contacts are available in the basic unit |
