Siemens

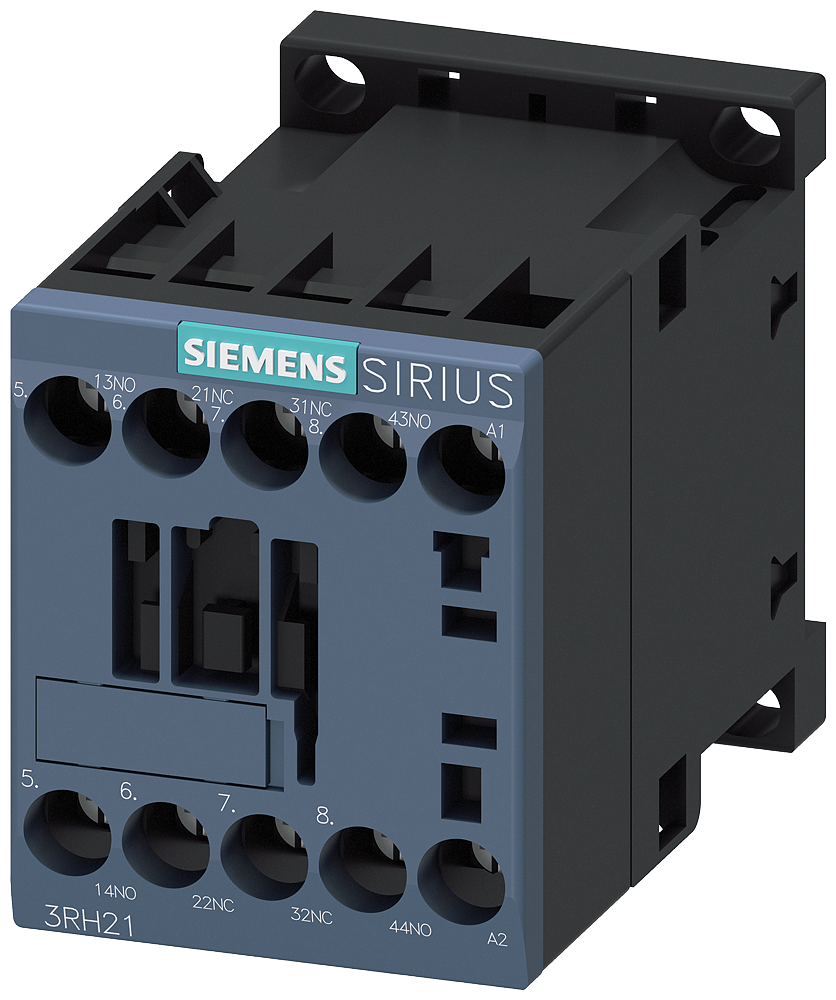

SIRIUS 3RH21221AF00 Contactor Control Relay, 2NO-2NC Contact Form, 110 VAC Coil
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RH21221AF00 Contactor Control Relay, 2NO-2NC Contact Form, 110 VAC Coil
SKU879279
MFGR #3RH21221AF00
Your Cost: $73.14/ea
List: SIEMENS 3RH21221AF00 CONTACTOR RELAY 2NO+2NC AC 110V SCREW
SIEMENS 3RH21221AF00 CONTACTOR RELAY 2NO+2NC AC 110V SCREW
Alternate Catalog Number 3RH2122-1AF00 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RH21221AF00 Coil Voltage 110 VAC Contact Form 2NO-2NC Contact Rating 1/10 A at 230/690 VAC, 0.15/10 A at 24/600 VDC Country of Origin DE Currency USD Depth 73 mm Dimensions 57.5 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 28.08 Gross Volume UOM in Gross Weight Per Pack 0.4800 lb Gross Weight per Pack Metric 0.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 2.4000 in Height [Metric] 6.0960 cm Length 3.2500 in Length [Metric] 8.2550 cm Manufacturer Siemens Mounting Type Rail/Snap-On/Threaded Number Of Poles 4 Replaced Catalog Number 3RH1122-1AF00 Returnable Y Stock Status NONSTOCK Temperature Rating -25 to 55 °C Terminal Type Screw Type Standard UNSPSC 39122331 UPC 11 66264390333 UPC 12 662643903331 Width 3.6000 in Width [Metric] 9.1440 cm Relays have screw, ring lug terminal or spring type terminals, finger safe High contact stability at low voltages and currents RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) can be plugged onto all 3RH2 contactor relays from the front for damping opening surges in the coil Depending on the version, the solenoid coils of the coupling contactor relays are supplied without overvoltage damping The auxiliary switch block can easily be snapped onto the front of the contactor relays 10 A at 230 VAC/3 A at 400 VAC/2 A at 500 VAC/1 A at 690 VAC AC-15, 10 A at 24 VAC/3 A at 110 VAC/1 A at 220 VAC/0.3 A at 440 VAC/0.15 A at 600 VAC DC-12 contact rating Without coil circuit Four contacts are available in the basic unit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RH2122-1AF00 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RH21221AF00 |
| Coil Voltage | 110 VAC |
| Contact Form | 2NO-2NC |
| Contact Rating | 1/10 A at 230/690 VAC, 0.15/10 A at 24/600 VDC |
| Country of Origin | DE |
| Currency | USD |
| Depth | 73 mm |
| Dimensions | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 28.08 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.4800 lb |
| Gross Weight per Pack Metric | 0.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 2.4000 in |
| Height [Metric] | 6.0960 cm |
| Length | 3.2500 in |
| Length [Metric] | 8.2550 cm |
| Manufacturer | Siemens |
| Mounting Type | Rail/Snap-On/Threaded |
| Number Of Poles | 4 |
| Replaced Catalog Number | 3RH1122-1AF00 |
| Returnable | Y |
| Stock Status | NONSTOCK |
| Temperature Rating | -25 to 55 °C |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39122331 |
| UPC 11 | 66264390333 |
| UPC 12 | 662643903331 |
| Width | 3.6000 in |
| Width [Metric] | 9.1440 cm |
| Relays have screw, ring lug terminal or spring type terminals, finger safe |
| High contact stability at low voltages and currents |
| RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) can be plugged onto all 3RH2 contactor relays from the front for damping opening surges in the coil |
| Depending on the version, the solenoid coils of the coupling contactor relays are supplied without overvoltage damping |
| The auxiliary switch block can easily be snapped onto the front of the contactor relays |
| 10 A at 230 VAC/3 A at 400 VAC/2 A at 500 VAC/1 A at 690 VAC AC-15, 10 A at 24 VAC/3 A at 110 VAC/1 A at 220 VAC/0.3 A at 440 VAC/0.15 A at 600 VAC DC-12 contact rating |
| Without coil circuit |
| Four contacts are available in the basic unit |
