Siemens

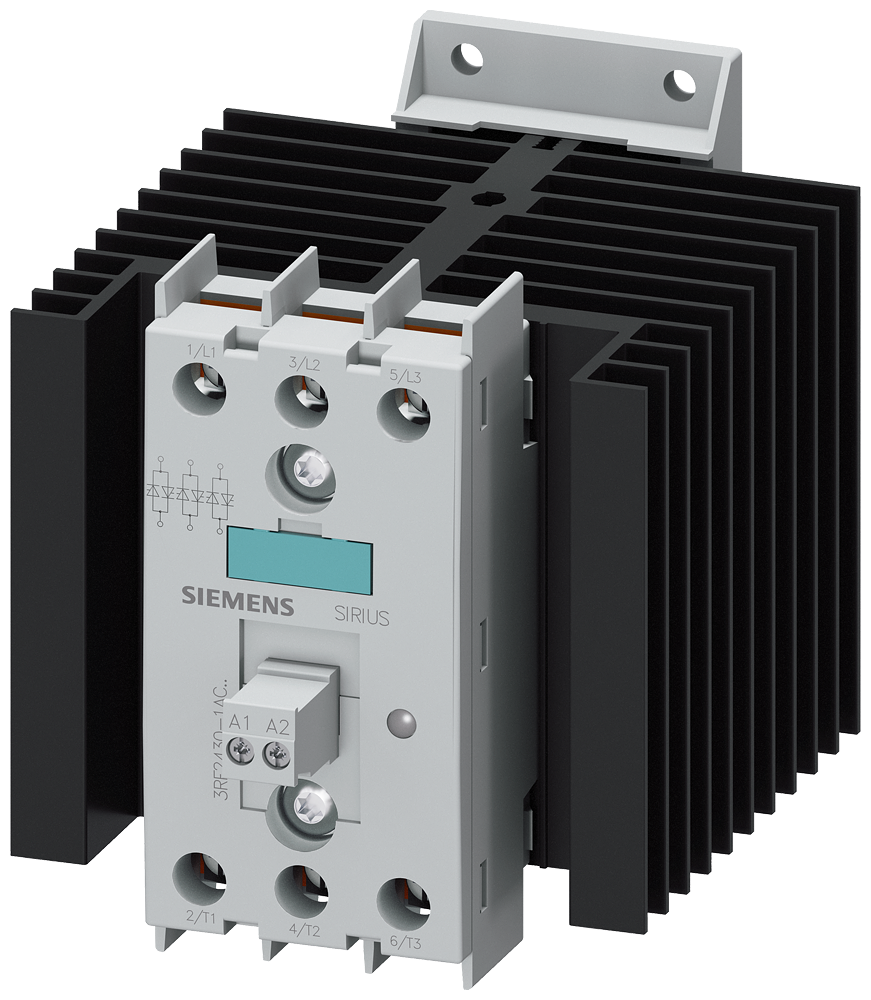

SIRIUS 3RF2430-1AC45 Solid State Contactor, 48 to 600 VAC/4 to 30 VDC Coil, 30 A Max Load, 3NO, 3 Poles

Custom_Product_Images_Illustration

Siemens

SKU435949

MFGR #3RF2430-1AC45

Your Cost: $459.33/ea

List: ~~$573.00~~ /ea

SIEMENS 3RF2430-1AC45 SS CONT,30A,48-600V,3P,4-30VDC,ZP,SCRE

: Alternate Catalog Number
3RF2430-1AC45
ARRA Compliant
C
Brand
Siemens
Buy American Compliant
C
Catalog Number
3RF2430-1AC45
Coil Voltage
4 to 30 VDC
Connection Type
Plug-In
Contact Configuration
3NO
Country of Origin
DE
Currency
USD
Dimensions
100 mm H x 113.5 mm W x 121 mm D
Enclosure Type
IP20
EU RoHS Indicator
C
Frequency Rating
50/60 Hz
Gross Volume Per Pack
145.07
Gross Volume UOM
in
Gross Weight Per Pack
0.1700 lb
Gross Weight per Pack Metric
0.08
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536490065
Height
6.7800 in
Height [Metric]
17.2212 cm
Length
4.9300 in
Length [Metric]
12.5222 cm
Manufacturer
Siemens
Maximum Load Current
30 A
Mounting Type
Threaded
Number Of Poles
3
Operating Temperature
-25 to 60
Returnable
Y
Standards
RoHS CompliantREACH Article 33CSA CertifiedUL ListedEAC ApprovedRCM ApprovedCE CertifiedIEC 60947-4-3UL 508C-Tick
Stock Status
NONSTOCK
Terminal Type
Screw
Type
3-Phase Zero Point Switching
UNSPSC
39121529
UPC 11
75455493562
UPC 12
754554935621
Width
4.3400 in
Width [Metric]
11.0236 cm
: 3D Rendering
Catalog
Computer~Aided [CAD|BIM] Model
Seller Home Page
Spec Sheet 1
Spec Sheet
Spec Sheet
Spec Sheet
User Manual
User Manual
: Compact and space-saving design

Insulated enclosure with integrated heat sink

Integrated mounting foot to snap on a standard mounting rail or for assembly onto a support plate

Reversing contactors with integrated interlocking

Plug-in control connection

Alternate Catalog Number	3RF2430-1AC45
ARRA Compliant	C
Brand	Siemens
Buy American Compliant	C
Catalog Number	3RF2430-1AC45
Coil Voltage	4 to 30 VDC
Connection Type	Plug-In
Contact Configuration	3NO
Country of Origin	DE
Currency	USD
Dimensions	100 mm H x 113.5 mm W x 121 mm D
Enclosure Type	IP20
EU RoHS Indicator	C
Frequency Rating	50/60 Hz
Gross Volume Per Pack	145.07
Gross Volume UOM	in
Gross Weight Per Pack	0.1700 lb
Gross Weight per Pack Metric	0.08
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536490065
Height	6.7800 in
Height [Metric]	17.2212 cm
Length	4.9300 in
Length [Metric]	12.5222 cm
Manufacturer	Siemens
Maximum Load Current	30 A
Mounting Type	Threaded
Number Of Poles	3
Operating Temperature	-25 to 60
Returnable	Y
Standards	RoHS CompliantREACH Article 33CSA CertifiedUL ListedEAC ApprovedRCM ApprovedCE CertifiedIEC 60947-4-3UL 508C-Tick
Stock Status	NONSTOCK
Terminal Type	Screw
Type	3-Phase Zero Point Switching
UNSPSC	39121529
UPC 11	75455493562
UPC 12	754554935621
Width	4.3400 in
Width [Metric]	11.0236 cm
