Siemens

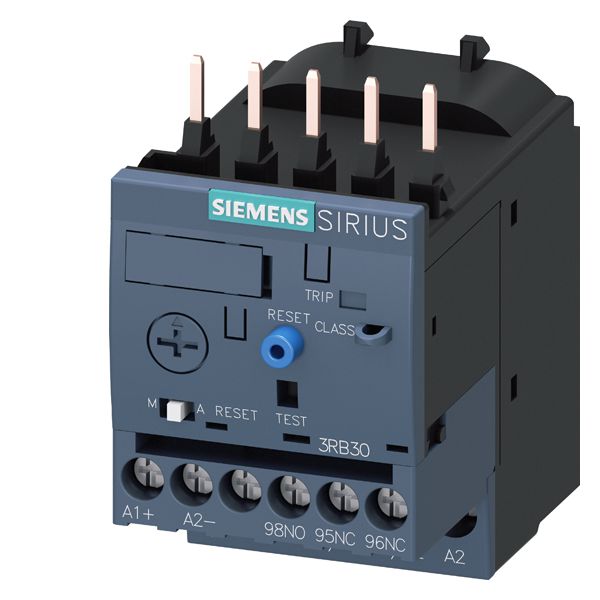

SIRIUS 3RB30162SB0 Solid State Overload Relay, 1NO-1NC Contact Form
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RB30162SB0 Solid State Overload Relay, 1NO-1NC Contact Form
SKU817609
MFGR #3RB30162SB0
Your Cost: $120.66/ea
List: SIEMENS 3RB30162SB0 OVERLOAD S.S. CL20 S00 3-12A SCREW
SIEMENS 3RB30162SB0 OVERLOAD S.S. CL20 S00 3-12A SCREW
Alternate Catalog Number 3RB3016-2SB0 Amperage Rating 3 to 12 Application Solid-state overload relay ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RB30162SB0 Coil Voltage 690 Contact Configuration 1NC 1NO Contact Form 1NO-1NC Contact Rating 12 A at 690 VAC Country of Origin CZ Currency USD Dimensions 79 mm H x 45 mm W x 73 mm D Enclosure Type IP20 Environmental Conditions 80 -40 C EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 31.44 Gross Volume UOM in Gross Weight Per Pack 0.3780 lb Gross Weight per Pack Metric 0.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490080 Height 3.9800 in Height [Metric] 10.1092 cm Length 3.5100 in Length [Metric] 8.9154 cm Manufacturer Siemens Mounting direct mounting any Mounting Type Contactor Number Of Poles 3 Operating Temperature 60.0 -25.0 C Power Rating 2.2 to 7.5 Replaced Catalog Number 3RB2016-2SB0 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCE CertifiedCSA CertifiedEAC ApprovedUL Listed Stock Status NONSTOCK Sub Brand SIRIUS Temperature Rating -25 to 60 °C Terminal Type Threaded Type Solid State UNSPSC 39122330 UPC 11 66264390280 UPC 12 662643902808 Width 2.2500 in Width [Metric] 5.7150 cm Solid-state overload relay Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials Overload protection, phase failure protection and unbalance protection Internal power supply Manual and automatic reset Switch position indicator TEST function and self-monitoring Size S00 Class 20 Device is directly mounted onto the contactor Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials -40 to 80 deg C environmental conditions B600/R300 contact -40 to 80 deg C environmental conditions B600/R300 contact
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RB3016-2SB0 |
| Amperage Rating | 3 to 12 |
| Application | Solid-state overload relay |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RB30162SB0 |
| Coil Voltage | 690 |
| Contact Configuration | 1NC 1NO |
| Contact Form | 1NO-1NC |
| Contact Rating | 12 A at 690 VAC |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 79 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| Environmental Conditions | 80 -40 C |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 31.44 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3780 lb |
| Gross Weight per Pack Metric | 0.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 3.9800 in |
| Height [Metric] | 10.1092 cm |
| Length | 3.5100 in |
| Length [Metric] | 8.9154 cm |
| Manufacturer | Siemens |
| Mounting | direct mounting any |
| Mounting Type | Contactor |
| Number Of Poles | 3 |
| Operating Temperature | 60.0 -25.0 C |
| Power Rating | 2.2 to 7.5 |
| Replaced Catalog Number | 3RB2016-2SB0 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCCC CertifiedCE CertifiedCSA CertifiedEAC ApprovedUL Listed |
| Stock Status | NONSTOCK |
| Sub Brand | SIRIUS |
| Temperature Rating | -25 to 60 °C |
| Terminal Type | Threaded |
| Type | Solid State |
| UNSPSC | 39122330 |
| UPC 11 | 66264390280 |
| UPC 12 | 662643902808 |
| Width | 2.2500 in |
| Width [Metric] | 5.7150 cm |
| Solid-state overload relay |
| Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials |
| Overload protection, phase failure protection and unbalance protection |
| Internal power supply |
| Manual and automatic reset |
| Switch position indicator |
| TEST function and self-monitoring |
| Size S00 |
| Class 20 |
| Device is directly mounted onto the contactor |
| Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials |
| -40 to 80 deg C environmental conditions |
| B600/R300 contact |
| -40 to 80 deg C environmental conditions |
| B600/R300 contact |
