Siemens

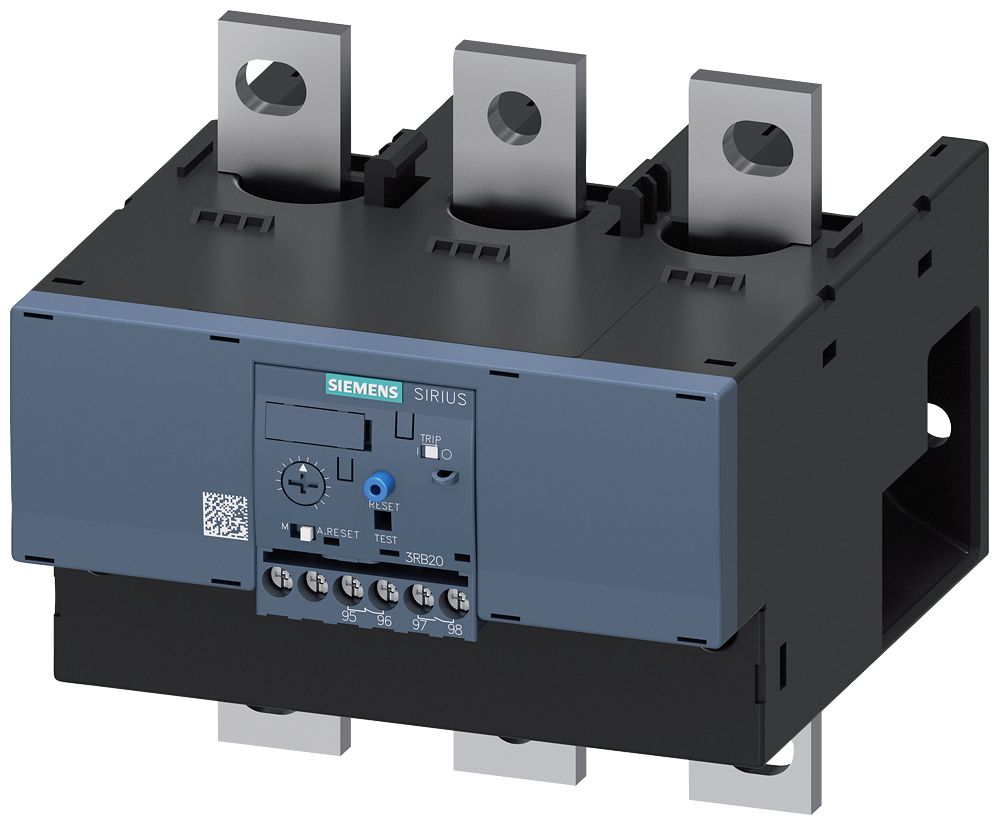

SIRIUS 3RB2066-1GC2 Solid State Overload Relay, 1NO-1NC Contact Form
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RB2066-1GC2 Solid State Overload Relay, 1NO-1NC Contact Form
SKU290010
MFGR #3RB2066-1GC2
Your Cost: $613.24/ea
List: SIEMENS 3RB2066-1GC2 OVERLOAD, S10, 55-250A
SIEMENS 3RB2066-1GC2 OVERLOAD, S10, 55-250A
Alternate Catalog Number 3RB2066-1GC2 Amperage Rating 55 to 250 A Application Solid-state overload relay ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RB2066-1GC2 Coil Voltage 1000 VAC Contact Form 1NO-1NC Contact Rating 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC Country of Origin DE Currency USD Dimensions 119 mm H x 120 mm W x 155 mm D Enclosure Type IP00/IP20 Environmental Conditions 80 -40 C EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 251.84 Gross Volume UOM in Gross Weight Per Pack 3.2500 lb Gross Weight per Pack Metric 1.47 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490080 Height 6.1500 in Height [Metric] 15.6210 cm Length 6.5000 in Length [Metric] 16.5100 cm Manufacturer Siemens Mounting direct mounting / stand-alone installation any Mounting Type Contactor/Stand Alone Number Of Poles 3 Operating Temperature 60.0 -25.0 C Returnable Y Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickATEX CertifiedCE CertifiedABS ApprovedLRS ListedRINA CertifiedDNV-GL Approved Stock Status NONSTOCK Sub Brand Sirius Temperature Rating -25 to 60 °C Terminal Type Screw Type Solid State UNSPSC 39122330 UPC 11 04089257732 UPC 12 040892577327 Width 6.3000 in Width [Metric] 16.0020 cm Solid-state overload relay Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials Manual automatic reset Switch position indicator Test function Reset button 4 A at 24/110/120/125 VAC, 3 A at 230 VAC operating current of auxiliary contacts at AC-15, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC operating current of auxiliary contacts at DC-13 Size S10/12 Class 10 Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials -40 to 80 deg C environmental conditions Stand alone installation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RB2066-1GC2 |
| Amperage Rating | 55 to 250 A |
| Application | Solid-state overload relay |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RB2066-1GC2 |
| Coil Voltage | 1000 VAC |
| Contact Form | 1NO-1NC |
| Contact Rating | 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 119 mm H x 120 mm W x 155 mm D |
| Enclosure Type | IP00/IP20 |
| Environmental Conditions | 80 -40 C |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 251.84 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.2500 lb |
| Gross Weight per Pack Metric | 1.47 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 6.1500 in |
| Height [Metric] | 15.6210 cm |
| Length | 6.5000 in |
| Length [Metric] | 16.5100 cm |
| Manufacturer | Siemens |
| Mounting | direct mounting / stand-alone installation any |
| Mounting Type | Contactor/Stand Alone |
| Number Of Poles | 3 |
| Operating Temperature | 60.0 -25.0 C |
| Returnable | Y |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickATEX CertifiedCE CertifiedABS ApprovedLRS ListedRINA CertifiedDNV-GL Approved |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Temperature Rating | -25 to 60 °C |
| Terminal Type | Screw |
| Type | Solid State |
| UNSPSC | 39122330 |
| UPC 11 | 04089257732 |
| UPC 12 | 040892577327 |
| Width | 6.3000 in |
| Width [Metric] | 16.0020 cm |
| Solid-state overload relay |
| Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials |
| Manual automatic reset |
| Switch position indicator |
| Test function |
| Reset button |
| 4 A at 24/110/120/125 VAC, 3 A at 230 VAC operating current of auxiliary contacts at AC-15, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC operating current of auxiliary contacts at DC-13 |
| Size S10/12 |
| Class 10 |
| Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials |
| -40 to 80 deg C environmental conditions |
| Stand alone installation |
