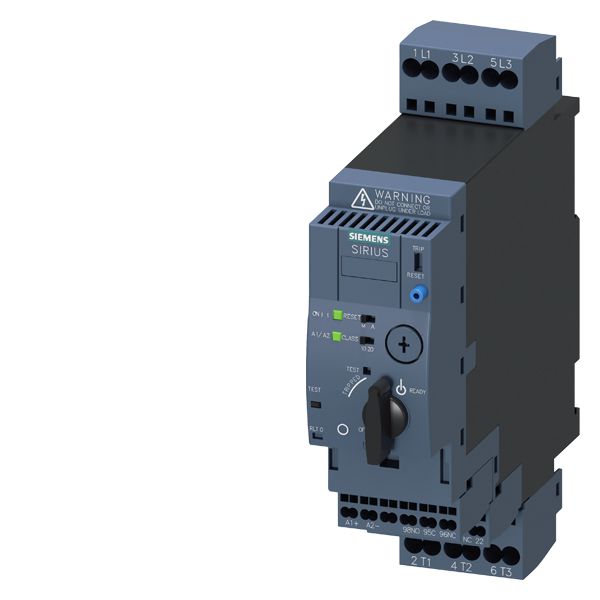

SIRIUS 3RA61202AB32 3RA6 Fuseless Compact Starter, 24 VAC/VDC Coil, 3 Poles, IP20 Enclosure
Custom_Product_Images_Illustration
SIRIUS 3RA61202AB32 3RA6 Fuseless Compact Starter, 24 VAC/VDC Coil, 3 Poles, IP20 Enclosure
SKU722226
MFGR #3RA61202AB32
Your Cost: $597.71/ea
List: SIEMENS 3RA61202AB32 DOL COMPACT STARTER 24V 0.1-0.4A
SIEMENS 3RA61202AB32 DOL COMPACT STARTER 24V 0.1-0.4A
Alternate Catalog Number 3RA6120-2AB32 Amperage Rating 0.4 A ARRA Compliant C Auxiliary Contact Rating 1NC Brand Siemens Buy American Compliant C Catalog Number 3RA61202AB32 Coil Voltage 24 VAC//VDC Connection Type Spring Loaded Country of Origin DE Currency USD Dimensions 191 mm H x 45 mm W x 165 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 152.60 Gross Volume UOM in Gross Weight Per Pack 3.3020 lb Gross Weight per Pack Metric 1.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490080 Height 2.3700 in Height [Metric] 6.0198 cm Length 8.9800 in Length [Metric] 22.8092 cm Manufacturer Siemens Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -20 to 60 °C Overload Relay Solid State Phase 3 pH Reset Type Automatic/Manual Returnable Y Series 3RA6 Standards UL Listed, CCC, CSA, EAC Certified, IEC, EN 60947-6-2, RoHS, ARRA, Buy American Act Compliant Starting Modes Direct On-Line Stock Status NONSTOCK Type Fuseless UNSPSC 39121521 UPC 11 66264335911 UPC 12 662643359114 Voltage Rating 690 VAC Wattage 180 W Width 7.1700 in Width [Metric] 18.2118 cm Integrated functionality, permanent wiring, easy replacement Compact design saves space in the control cabinet Little planning and assembly work and far less wiring thanks to a single complete unit with one article number High plant availability through integrated functionalities such as prevention of main contact welding and disconnection at end of service life Greater productivity through automatic device reset in case of overload and differentiated detection of overload and short circuit Easy checking of the wiring and testing of the motor direction prior to start up thanks to optional control kits Speedy replacement of devices thanks to removable terminals with spring type and screw connections in the main and control circuit Efficient power distribution through the related SIRIUS infeed system for 3RA6 Direct connection of the motor feeder cable to the SIRIUS infeed system for 3RA6 thanks to integrated PE bar Connecting and looping through incoming feeders up to a cross section of 70 sq-mm Integration in totally integrated automation thanks to the optional connection to AS-Interface or IO-Link Direct connection of the motor feeder cable to the SIRIUS infeed system for 3RA6 thanks to integrated PE bar Connecting and looping through incoming feeders up to a cross-section of 70 sq-mm Integration in Totally Integrated Automation thanks to the optional connection to AS-Interface or IO-Link Screw and snap-on mounting 10000000 operating cycles -20 to 60 deg C operating temperature -55 to 80 deg C environmental condition 0.4 FLA at 480/600 V
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RA6120-2AB32 |
| Amperage Rating | 0.4 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NC |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RA61202AB32 |
| Coil Voltage | 24 VAC//VDC |
| Connection Type | Spring Loaded |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 191 mm H x 45 mm W x 165 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 152.60 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.3020 lb |
| Gross Weight per Pack Metric | 1.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 2.3700 in |
| Height [Metric] | 6.0198 cm |
| Length | 8.9800 in |
| Length [Metric] | 22.8092 cm |
| Manufacturer | Siemens |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -20 to 60 °C |
| Overload Relay | Solid State |
| Phase | 3 pH |
| Reset Type | Automatic/Manual |
| Returnable | Y |
| Series | 3RA6 |
| Standards | UL Listed, CCC, CSA, EAC Certified, IEC, EN 60947-6-2, RoHS, ARRA, Buy American Act Compliant |
| Starting Modes | Direct On-Line |
| Stock Status | NONSTOCK |
| Type | Fuseless |
| UNSPSC | 39121521 |
| UPC 11 | 66264335911 |
| UPC 12 | 662643359114 |
| Voltage Rating | 690 VAC |
| Wattage | 180 W |
| Width | 7.1700 in |
| Width [Metric] | 18.2118 cm |
| Integrated functionality, permanent wiring, easy replacement |
| Compact design saves space in the control cabinet |
| Little planning and assembly work and far less wiring thanks to a single complete unit with one article number |
| High plant availability through integrated functionalities such as prevention of main contact welding and disconnection at end of service life |
| Greater productivity through automatic device reset in case of overload and differentiated detection of overload and short circuit |
| Easy checking of the wiring and testing of the motor direction prior to start up thanks to optional control kits |
| Speedy replacement of devices thanks to removable terminals with spring type and screw connections in the main and control circuit |
| Efficient power distribution through the related SIRIUS infeed system for 3RA6 |
| Direct connection of the motor feeder cable to the SIRIUS infeed system for 3RA6 thanks to integrated PE bar |
| Connecting and looping through incoming feeders up to a cross section of 70 sq-mm |
| Integration in totally integrated automation thanks to the optional connection to AS-Interface or IO-Link |
| Direct connection of the motor feeder cable to the SIRIUS infeed system for 3RA6 thanks to integrated PE bar |
| Connecting and looping through incoming feeders up to a cross-section of 70 sq-mm |
| Integration in Totally Integrated Automation thanks to the optional connection to AS-Interface or IO-Link |
| Screw and snap-on mounting |
| 10000000 operating cycles |
| -20 to 60 deg C operating temperature |
| -55 to 80 deg C environmental condition |
| 0.4 FLA at 480/600 V |
