Siemens

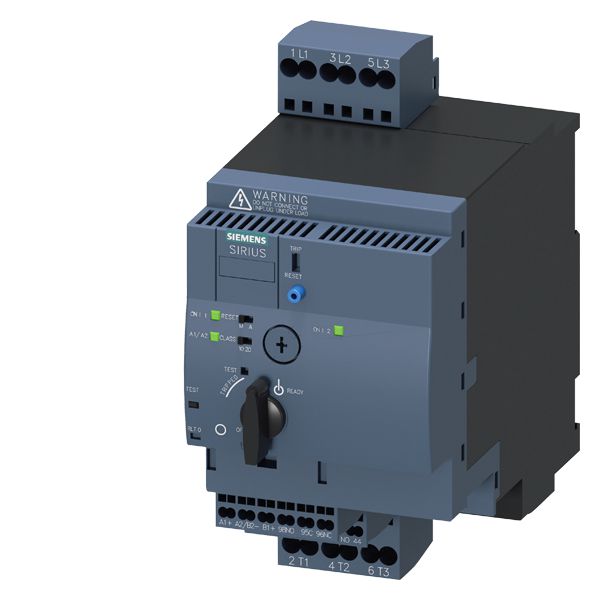

SIRIUS 3RA6 Load Feeder Reversing Compact Starter, 24 VAC/VDC Coil, 3 Poles, IP20 Enclosure
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RA6 Load Feeder Reversing Compact Starter, 24 VAC/VDC Coil, 3 Poles, IP20 Enclosure
SKU728454
MFGR #3RA62502BB32
Your Cost: $1,162.48/ea
List: SIEMENS 3RA62502BB32 REV COMPACT STARTER 24V 0.32-1.25A
SIEMENS 3RA62502BB32 REV COMPACT STARTER 24V 0.32-1.25A
Alternate Catalog Number 3RA6250-2BB32 Amperage Rating 1.1/1.2 A ARRA Compliant C Auxiliary Contact Rating 2NO-1CO Brand Siemens Buy American Compliant C Catalog Number 3RA62502BB32 Coil Voltage 24 VAC//VDC Connection Type Spring Country of Origin DE Currency USD Dimensions 191 mm H x 90 mm W x 165 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Full Load Current 1.25 A Gross Volume Per Pack 281.00 Gross Volume UOM in Gross Weight Per Pack 5.6640 lb Gross Weight per Pack Metric 2.57 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 4.3400 in Height [Metric] 11.0236 cm Length 8.9800 in Length [Metric] 22.8092 cm Manufacturer Siemens Motor Power 1/2 HP Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -20 to 60 °C Overload Relay Class 10/20 Adjustable Electronic Phase 3 pH Reset Type Automatic/Manual Returnable Y Standards RoHS CompliantREACH Article 33UL ListedCE CertifiedCSA CertifiedEAC ApprovedC-TickVDE ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedCCC CertifiedIEC/EN 60947-6-2 Stock Status NONSTOCK Type Compact Load Feeder Reversing UNSPSC 39121521 UPC 11 66264336024 UPC 12 662643360240 Voltage Rating 690 VAC Wattage 370/550/750 W Width 7.2100 in Width [Metric] 18.3134 cm 370 W at 400 VAC, 550 W at 500 VAC, 750 W at 690 VAC 1.1 A at 400 VAC, 1.2 A at 500 VAC, 1.1 A at 690 VAC 1/2 hp at 460/480/575/600 VAC High plant availability through integrated functionalities such as prevention of main contact welding and disconnection at end of service life Greater productivity through automatic device reset in case of overload and differentiated detection of overload and short circuit Easy checking of the wiring and testing of the motor direction prior to start-up thanks to optional "control kits" Speedy replacement of devices thanks to removable terminals with spring-type and screw connections in the main and control circuit Efficient power distribution through the related SIRIUS infeed system for 3RA6 Direct connection of the motor feeder cable to the SIRIUS infeed system for 3RA6 thanks to integrated PE bar Connecting and looping through incoming feeders up to a cross-section of 70 mm-sq When using the infeed system for 3RA6, possibility of directly connecting the motor cable without intermediate terminals Integration in Totally Integrated Automation thanks to the optional connection to AS-Interface or IO-Link Screw and snap-on mounting, vertical, on horizontal standard mounting rail -55 to 80 deg C storage temperature rating 0.75kW at 690 V
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RA6250-2BB32 |
| Amperage Rating | 1.1/1.2 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 2NO-1CO |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RA62502BB32 |
| Coil Voltage | 24 VAC//VDC |
| Connection Type | Spring |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 191 mm H x 90 mm W x 165 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Full Load Current | 1.25 A |
| Gross Volume Per Pack | 281.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 5.6640 lb |
| Gross Weight per Pack Metric | 2.57 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 4.3400 in |
| Height [Metric] | 11.0236 cm |
| Length | 8.9800 in |
| Length [Metric] | 22.8092 cm |
| Manufacturer | Siemens |
| Motor Power | 1/2 HP |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -20 to 60 °C |
| Overload Relay | Class 10/20 Adjustable Electronic |
| Phase | 3 pH |
| Reset Type | Automatic/Manual |
| Returnable | Y |
| Standards | RoHS CompliantREACH Article 33UL ListedCE CertifiedCSA CertifiedEAC ApprovedC-TickVDE ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedCCC CertifiedIEC/EN 60947-6-2 |
| Stock Status | NONSTOCK |
| Type | Compact Load Feeder Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 66264336024 |
| UPC 12 | 662643360240 |
| Voltage Rating | 690 VAC |
| Wattage | 370/550/750 W |
| Width | 7.2100 in |
| Width [Metric] | 18.3134 cm |
| 370 W at 400 VAC, 550 W at 500 VAC, 750 W at 690 VAC |
| 1.1 A at 400 VAC, 1.2 A at 500 VAC, 1.1 A at 690 VAC |
| 1/2 hp at 460/480/575/600 VAC |
| High plant availability through integrated functionalities such as prevention of main contact welding and disconnection at end of service life |
| Greater productivity through automatic device reset in case of overload and differentiated detection of overload and short circuit |
| Easy checking of the wiring and testing of the motor direction prior to start-up thanks to optional "control kits" |
| Speedy replacement of devices thanks to removable terminals with spring-type and screw connections in the main and control circuit |
| Efficient power distribution through the related SIRIUS infeed system for 3RA6 |
| Direct connection of the motor feeder cable to the SIRIUS infeed system for 3RA6 thanks to integrated PE bar |
| Connecting and looping through incoming feeders up to a cross-section of 70 mm-sq |
| When using the infeed system for 3RA6, possibility of directly connecting the motor cable without intermediate terminals |
| Integration in Totally Integrated Automation thanks to the optional connection to AS-Interface or IO-Link |
| Screw and snap-on mounting, vertical, on horizontal standard mounting rail |
| -55 to 80 deg C storage temperature rating |
| 0.75kW at 690 V |
