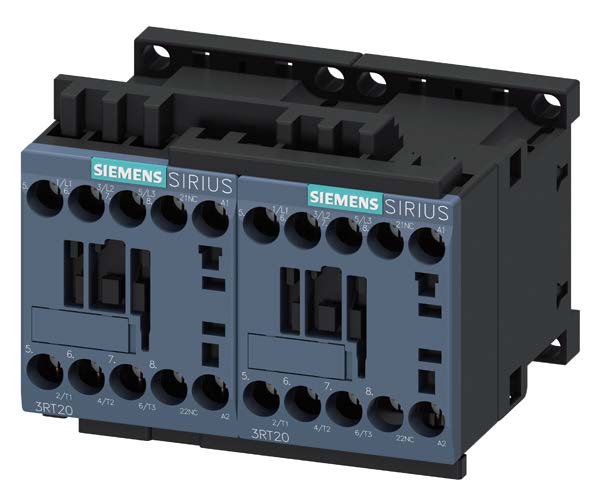

SIRIUS 3RA2315-8XB30-1AK6 Reversing Contactor Assembly 3RA2315-8XB30-1AK6, 110/120 VAC Coil, 7 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS 3RA2315-8XB30-1AK6 Reversing Contactor Assembly 3RA2315-8XB30-1AK6, 110/120 VAC Coil, 7 A Max Load, 3NO, 3 Poles
SKU731515
MFGR #3RA23158XB301AK6
Your Cost: $225.96/ea
List: SIEMENS 3RA23158XB301AK6 CONTACTOR REV S00 7A 120VAC SCREW
SIEMENS 3RA23158XB301AK6 CONTACTOR REV S00 7A 120VAC SCREW
Alternate Catalog Number 3RA2315-8XB30-1AK6 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RA23158XB301AK6 Coil Power Rating 27 VA Pickup/4.2 VA Holding Coil Voltage 110/120 VAC Contact Configuration 3NO Country of Origin DE Currency USD Dimensions 68 mm H x 90 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 36.43 Gross Volume UOM in Gross Weight Per Pack 1.0100 lb Gross Weight per Pack Metric 0.46 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.2500 in Height [Metric] 8.2550 cm Length 3.8000 in Length [Metric] 9.6520 cm Manufacturer Siemens Maximum Load Current 7 A Mounting Type DIN Rail/Snap-On/Threaded Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Replaced Catalog Number 3RA1315-8XB30-1AK6 Returnable Y Size Size S00 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedCE CertifiedUL ListedEAC Certified Stock Status NONSTOCK Terminal Type Screw Type Reversing UNSPSC 39121529 UPC 11 66264389778 UPC 12 662643897784 Wattage 3 kW Width 2.9500 in Width [Metric] 7.4930 cm Reversing contactor assembly Screw and snap-on mounting onto 35 mm standard mounting rail 10000000 of contactor/typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RA2315-8XB30-1AK6 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RA23158XB301AK6 |
| Coil Power Rating | 27 VA Pickup/4.2 VA Holding |
| Coil Voltage | 110/120 VAC |
| Contact Configuration | 3NO |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 68 mm H x 90 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 36.43 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0100 lb |
| Gross Weight per Pack Metric | 0.46 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.2500 in |
| Height [Metric] | 8.2550 cm |
| Length | 3.8000 in |
| Length [Metric] | 9.6520 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 7 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Replaced Catalog Number | 3RA1315-8XB30-1AK6 |
| Returnable | Y |
| Size | Size S00 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedCE CertifiedUL ListedEAC Certified |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 66264389778 |
| UPC 12 | 662643897784 |
| Wattage | 3 kW |
| Width | 2.9500 in |
| Width [Metric] | 7.4930 cm |
| Reversing contactor assembly |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 10000000 of contactor/typical, 10000000 of the contactor with added auxiliary switch block typical |
