Siemens

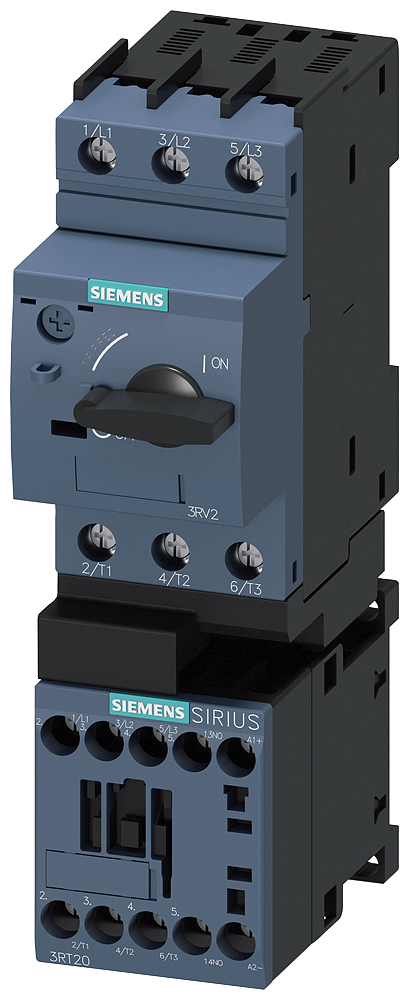

SIRIUS 3RA21101JA161BB4 3RA2 Fuseless Load Feeder Starter, 24 VDC Coil, 3 Poles, IP20 Enclosure
Custom_Product_Images_Illustration
Siemens
SIRIUS 3RA21101JA161BB4 3RA2 Fuseless Load Feeder Starter, 24 VDC Coil, 3 Poles, IP20 Enclosure
SKU700391
MFGR #3RA21101JA161BB4
Your Cost: $304.50/ea
List: SIEMENS 3RA21101JA161BB4 STARTER DOL S00 7-10A 24VDC SCREW
SIEMENS 3RA21101JA161BB4 STARTER DOL S00 7-10A 24VDC SCREW
Action Reversing Alternate Catalog Number 3RA2110-1JA16-1BB4 Amperage Rating 7 to 10 A ARRA Compliant C Auxiliary Contact Rating 1NO Brand Siemens Buy American Compliant C Catalog Number 3RA21101JA161BB4 Coil Voltage 24 VDC Connection Type Threaded Country of Origin DE Currency USD Dimensions 167 mm H x 45 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 59.60 Gross Volume UOM in Gross Weight Per Pack 1.3860 lb Gross Weight per Pack Metric 0.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 4.4100 in Height [Metric] 11.2014 cm Length 6.8600 in Length [Metric] 17.4244 cm Manufacturer Siemens Number Of Poles 3 Operating Cycles 30000000 Cycles Operating Temperature -20 to 60 °C Overload Relay Solid State Phase 3 pH Returnable Y Series 3RA2 Standards UL Listed, CE, CSA, EAC Certified, IEC, EN 60947-1, 60947-2, 60947-4-1, RoHS, ARRA, Buy American Act Compliant Starting Modes Direct On-Line Stock Status NONSTOCK Type Fuseless UNSPSC 39121521 UPC 11 66264389974 UPC 12 662643899740 Voltage Rating 690 VAC Width 1.9700 in Width [Metric] 5.0038 cm Plug in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error free assembly of feeders with screw and spring type connection High planning reliability through consistent combination tests for fuseless and fused configuration High operational reliability through short circuit breaking capacity of 150 kA with type of coordination 1 and 2 Spring type connection possible throughout enhanced operational reliability and less wiring work thanks to plug in connections Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption Connection of feeders to the control system through standardized system connection, for fast integration in TIA and less wiring work
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Reversing |
| Alternate Catalog Number | 3RA2110-1JA16-1BB4 |
| Amperage Rating | 7 to 10 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RA21101JA161BB4 |
| Coil Voltage | 24 VDC |
| Connection Type | Threaded |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 167 mm H x 45 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 59.60 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.3860 lb |
| Gross Weight per Pack Metric | 0.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 4.4100 in |
| Height [Metric] | 11.2014 cm |
| Length | 6.8600 in |
| Length [Metric] | 17.4244 cm |
| Manufacturer | Siemens |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 Cycles |
| Operating Temperature | -20 to 60 °C |
| Overload Relay | Solid State |
| Phase | 3 pH |
| Returnable | Y |
| Series | 3RA2 |
| Standards | UL Listed, CE, CSA, EAC Certified, IEC, EN 60947-1, 60947-2, 60947-4-1, RoHS, ARRA, Buy American Act Compliant |
| Starting Modes | Direct On-Line |
| Stock Status | NONSTOCK |
| Type | Fuseless |
| UNSPSC | 39121521 |
| UPC 11 | 66264389974 |
| UPC 12 | 662643899740 |
| Voltage Rating | 690 VAC |
| Width | 1.9700 in |
| Width [Metric] | 5.0038 cm |
| Plug in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error free assembly of feeders with screw and spring type connection |
| High planning reliability through consistent combination tests for fuseless and fused configuration |
| High operational reliability through short circuit breaking capacity of 150 kA with type of coordination 1 and 2 |
| Spring type connection possible throughout enhanced operational reliability and less wiring work thanks to plug in connections |
| Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption |
| Connection of feeders to the control system through standardized system connection, for fast integration in TIA and less wiring work |
