0.008 in insulation thickness |
0.08 in insulated nominal conductor diameter |
UL 1666 riser flame test rating |
4 in nominal lay length |
79 Pf/ft capacitance between conductors at 1 kHz, 146 pF/ft capacitance between conductors to shield at 1 kHz |
Black, red insulation colors |

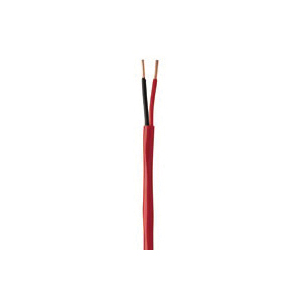

This cable consists of two bare copper insulated conductors with an overall shield with a drain |
0.017 in insulation thickness |
Aluminum/mylar shield |
24 AWG tinned copper drain |
38.7 Ohm/1 m at 20 deg C DC resistance per conductor |
Overall shielded(OAS) |
