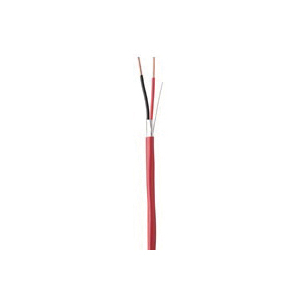

SIGNAL® 858020604 Type FPLP Shielded Fire Alarm Cable, 300 VAC, (2) 18 AWG Bare Solid Copper Conductors, 1000 ft Reel L
SIGNAL® 858020604 Type FPLP Shielded Fire Alarm Cable, 300 VAC, (2) 18 AWG Bare Solid Copper Conductors, 1000 ft Reel L
SKU780
MFGR #85802-06-04
Your Cost: $0.1874/ft($187.44 / m)
Marketed under the signal ® brand name, Coleman Cable manufacturers one of the most comprehensive security, home technology and datacom cable packages available today. Our product offering provides cable solutions for virtually every security and home technology application. Coleman Cable's technical expertise and commitment to innovation ensure the most advanced and highest quality security, home technology and datacom cable in the market. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
Marketed under the signal ® brand name, Coleman Cable manufacturers one of the most comprehensive security, home technology and datacom cable packages available today. Our product offering provides cable solutions for virtually every security and home technology application. Coleman Cable's technical expertise and commitment to innovation ensure the most advanced and highest quality security, home technology and datacom cable in the market. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
Catalog Number 85802-06-04 Color Red Country of Origin USA Gross Weight Per Pack 0.0210 lb Insulation Material PVC Jacket Color Red Jacket Material PVC Number Of Conductors 2 Outside Diameter 0.158 in Resistance 6.32 Ohm Standards UL 1424, 444 Listed, NEC Articles 760 and 800 Temperature Rating -20 to 75 °C Type Type FPLP Shielded UNSPSC 26121639 UPC 11 02989239100 UPC 12 02989239100 Stock Status NONSTOCK Brand Coleman Cable Manufacturer Coleman Wires and Cables Conductor Size 18 AWG Conductor Type Bare Solid Copper Length 1000 ft Voltage Rating 300 VAC Black, red insulation colors 0.01 in insulation thickness 0.06 in insulated nominal conductor diameter 0.014 in insulation thickness 4 in nominal lay length NFPA 262 Steiner tunnel smoke and flame test flame rating Aluminum/mylar shield material 52 pF/ft nominal capacitance between conductors at 1 kHz 96 pF/ft nominal capacitance between conductors to shield at 1 kHz This cable consists of four bare copper insulated conductors with an overall shield with a drain The overall assembly has an overall jacket 6.32 Ohm/1 m at 20 deg C DC resistance per conductor Overall shielded(OAS)
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 85802-06-04 |
| Color | Red |
| Country of Origin | USA |
| Gross Weight Per Pack | 0.0210 lb |
| Insulation Material | PVC |
| Jacket Color | Red |
| Jacket Material | PVC |
| Number Of Conductors | 2 |
| Outside Diameter | 0.158 in |
| Resistance | 6.32 Ohm |
| Standards | UL 1424, 444 Listed, NEC Articles 760 and 800 |
| Temperature Rating | -20 to 75 °C |
| Type | Type FPLP Shielded |
| UNSPSC | 26121639 |
| UPC 11 | 02989239100 |
| UPC 12 | 02989239100 |
| Stock Status | NONSTOCK |
| Brand | Coleman Cable |
| Manufacturer | Coleman Wires and Cables |
| Conductor Size | 18 AWG |
| Conductor Type | Bare Solid Copper |
| Length | 1000 ft |
| Voltage Rating | 300 VAC |
| Black, red insulation colors |
| 0.01 in insulation thickness |
| 0.06 in insulated nominal conductor diameter |
| 0.014 in insulation thickness |
| 4 in nominal lay length |
| NFPA 262 Steiner tunnel smoke and flame test flame rating |
| Aluminum/mylar shield material |
| 52 pF/ft nominal capacitance between conductors at 1 kHz |
| 96 pF/ft nominal capacitance between conductors to shield at 1 kHz |
| This cable consists of four bare copper insulated conductors with an overall shield with a drain |
| The overall assembly has an overall jacket |
| 6.32 Ohm/1 m at 20 deg C DC resistance per conductor |
| Overall shielded(OAS) |
