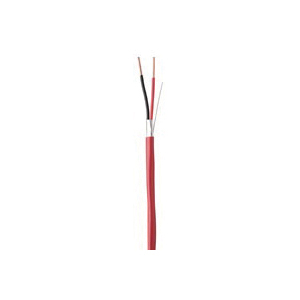

SIGNAL® 854020604 Type FPLP Unshielded Fire Alarm Cable, 300 VAC, (2) 14 AWG Bare Solid Copper Conductors, 1000 ft Reel L

Fire Alarm Cables
776 MFG #: 854020604
Coleman Cable
486.43000 / ea
Marketed under the signal ® brand name, Coleman Cable manufacturers one of the most comprehensive security, home technology and datacom cable packages available today. Our product offering provides cable solutions for virtually every security and home technology application. Coleman Cable's technical expertise and commitment to innovation ensure the most advanced and highest quality security, home technology and datacom cable in the market.
QTY
  • Features
Black, red insulation colors
0.01 in insulation thickness
0.084 in insulated nominal conductor diameter
0.017 in insulation thickness
4 in nominal lay length
NFPA 262 Steiner tunnel smoke and flame test flame rating
Aluminum/mylar shield material
67 pF/ft nominal capacitance between conductors at 1 kHz
123 pF/ft nominal capacitance between conductors to shield at 1 kHz
This cable consists of four bare copper insulated conductors with an overall shield with a drain
The overall assembly has an overall jacket
2.54 Ohm/1 m at 20 deg C DC resistance per conductor
Overall shielded(OAS)
