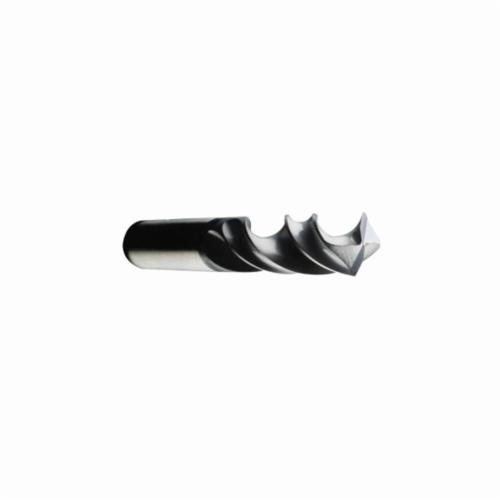

SGS® 51604 HI-PERCARB® 135 Double Margin High Performance Drill, D, 3-1/8 in L, Micro Grain Solid Carbide, AlTiN Coated
SGS® 51604 HI-PERCARB® 135 Double Margin High Performance Drill, D, 3-1/8 in L, Micro Grain Solid Carbide, AlTiN Coated
SKUPDW~10682730
MFGR #51604
$/ea
The SGS Hi-Per Carb drill is designed to provide absolute accuracy and stability in the most challenging applications. The double margin design is absolutely the best choice when encountering tolerance problems due to precast holes, cross holes or interruptions. In addition the second margin offers reamer quality finishes, while providing an access channel for coolant to flow.
The SGS Hi-Per Carb drill is designed to provide absolute accuracy and stability in the most challenging applications. The double margin design is absolutely the best choice when encountering tolerance problems due to precast holes, cross holes or interruptions. In addition the second margin offers reamer quality finishes, while providing an access channel for coolant to flow.
Applicable Materials Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel Brand SGS Catalog Number 51604 Country of Origin US Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Size ~ Letter D Finish AlTiN Coated Flute Length 1-5/16 in Flute Type Right Spiral Gross Weight Per Pack 0.1000 lb Manufacturer KYOCERA SGS Precision Tools Material Solid Carbide Number of Flutes 2 Overall Length 3-1/8 in Point Type Notched Series HI-PERCARB® 135 Shank Type Straight Standards ISO 9001 Stock Status NONSTOCK Type High Performance UPC 11 69178151604
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Applicable Materials | Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel |
| Brand | SGS |
| Catalog Number | 51604 |
| Country of Origin | US |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Size ~ Letter | D |
| Finish | AlTiN Coated |
| Flute Length | 1-5/16 in |
| Flute Type | Right Spiral |
| Gross Weight Per Pack | 0.1000 lb |
| Manufacturer | KYOCERA SGS Precision Tools |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Overall Length | 3-1/8 in |
| Point Type | Notched |
| Series | HI-PERCARB® 135 |
| Shank Type | Straight |
| Standards | ISO 9001 |
| Stock Status | NONSTOCK |
| Type | High Performance |
| UPC 11 | 69178151604 |
