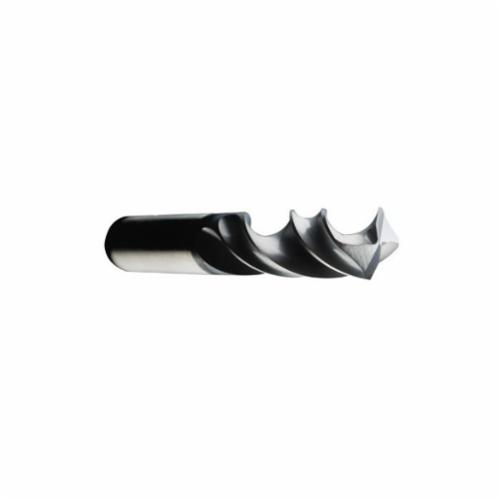

SGS® 51351 Double Margin Screw Machine Length High Performance Drill With Coolant Holes, Q, 3-1/2 in L, TiN Coated
SGS® 51351 Double Margin Screw Machine Length High Performance Drill With Coolant Holes, Q, 3-1/2 in L, TiN Coated
SKU448833
MFGR #51351
Your Cost: $106.94/ea
List: The SGS Hi-Per Carb drill is designed to provide absolute accuracy and stability in the most challenging applications. The double margin design is absolutely the best choice when encountering tolerance problems due to precast holes, cross holes or interruptions. In addition the second margin offers reamer quality finishes, while providing an access channel for coolant to flow.
The SGS Hi-Per Carb drill is designed to provide absolute accuracy and stability in the most challenging applications. The double margin design is absolutely the best choice when encountering tolerance problems due to precast holes, cross holes or interruptions. In addition the second margin offers reamer quality finishes, while providing an access channel for coolant to flow.
Applicable Materials Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel Brand SGS Catalog Number 51351 Country of Origin US Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Size ~ Letter Q Finish AlTiN Coated Flute Type Right Spiral Gross Weight Per Pack 0.1400 lb Manufacturer KYOCERA SGS Precision Tools Material Solid Carbide Number of Flutes 2 Overall Length 3-1/2 in Point Type Notched Series HI-PERCARB® 135 Shank Type Straight Stock Status NONSTOCK Type High Performance UNSPSC 23241605 UPC 11 69178151351 UPC 12 69178151351
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Applicable Materials | Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel |
| Brand | SGS |
| Catalog Number | 51351 |
| Country of Origin | US |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Size ~ Letter | Q |
| Finish | AlTiN Coated |
| Flute Type | Right Spiral |
| Gross Weight Per Pack | 0.1400 lb |
| Manufacturer | KYOCERA SGS Precision Tools |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Overall Length | 3-1/2 in |
| Point Type | Notched |
| Series | HI-PERCARB® 135 |
| Shank Type | Straight |
| Stock Status | NONSTOCK |
| Type | High Performance |
| UNSPSC | 23241605 |
| UPC 11 | 69178151351 |
| UPC 12 | 69178151351 |
