S-A 5SY6310-6 UL1077 SUP. PROT, 6KA
SKU1094160
MFGR #5SY6310-6
Your Cost: $99.10/ea

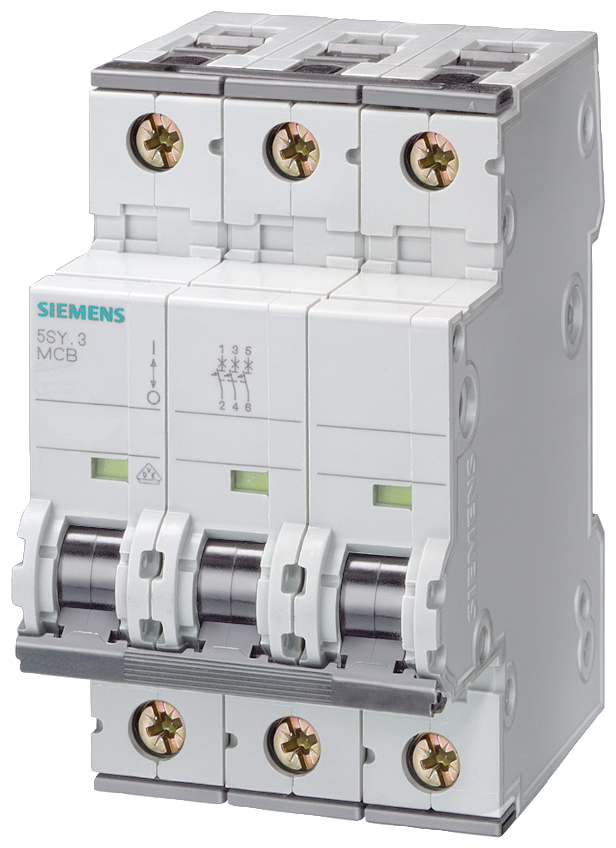

List: Sentron™ Miniature Circuit Breaker, Series: 5SY, 400 VAC, 10 A, 50/60 Hz, 5 kA Interrupt, Thermal Magnetic Trip, 1.13 to 1.45 A Trip, 3 Poles, Handle Actuator, Screw, 14 to 4 AWG Wire, IP20/IP40, DIN Rail Mount, -25 to 55 deg C, 90 mm H x 54 mm W x 76 mm D
Sentron™ Miniature Circuit Breaker, Series: 5SY, 400 VAC, 10 A, 50/60 Hz, 5 kA Interrupt, Thermal Magnetic Trip, 1.13 to 1.45 A Trip, 3 Poles, Handle Actuator, Screw, 14 to 4 AWG Wire, IP20/IP40, DIN Rail Mount, -25 to 55 deg C, 90 mm H x 54 mm W x 76 mm D
Actuator Type Handle Alternate Catalog Number 5SY6310-6 Application SUPPLEMENTARY PROTECTION ARRA Compliant C Buy American Compliant C Catalog Number 5SY6310-6 Connection Identical wire screw connections on line and load side. Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 54 mm W x 76 mm D Enclosure Type IP20/IP40 EU RoHS Indicator C Frequency Rating 50 Hz Gross Volume Per Pack 27.97 Gross Volume UOM in Gross Weight Per Pack 1.0050 lb Gross Weight per Pack Metric 0.46 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.3100 in Height [Metric] 8.4074 cm Length 3.7010 in Length [Metric] 9.4005 cm Material N/A Mounting Type DIN Rail Number Of Poles 3 Returnable Y Series 5SY Standard UL 1077 and CSA C22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2 Standards CSA C22.2 No. 235IEC/EN 60898-1/IEC/EN 60947-2CE CertifiedCCC CertifiedIMQ CertifiedUL 1077 Sub Brand SENTRON Temperature Rating -25 to 55 °C Trip Range 1.13 to 1.45 A Type MINIATURE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 04089262083 UPC 12 040892620832 Width 2.2830 in Width [Metric] 5.7988 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 10 A Interrupt Rating 5 kA Trip Type Thermal Magnetic Voltage Rating 400 VAC SUPPLEMENTARY PROTECTION Type B characteristic designed for European residential circuit protection. This characteristic can also be used for protection of computers and electronic equipment. Magnetic trip point - 3 to 5 times In rating. Thermal trip point - 1.13 to 1.45 protecto Clear and visible conductor connection in front of the rear busbar facilitates controls The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space Double terminal chambers permit accommodation of two wires of different cross-sections Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices For the quick and easy mounting of auxiliary switches and fault signal contacts Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools Class B trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SY6310-6 |
| Application | SUPPLEMENTARY PROTECTION |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SY6310-6 |
| Connection | Identical wire screw connections on line and load side. |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 54 mm W x 76 mm D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 27.97 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0050 lb |
| Gross Weight per Pack Metric | 0.46 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.3100 in |
| Height [Metric] | 8.4074 cm |
| Length | 3.7010 in |
| Length [Metric] | 9.4005 cm |
| Material | N/A |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Returnable | Y |
| Series | 5SY |
| Standard | UL 1077 and CSA C22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2 |
| Standards | CSA C22.2 No. 235IEC/EN 60898-1/IEC/EN 60947-2CE CertifiedCCC CertifiedIMQ CertifiedUL 1077 |
| Sub Brand | SENTRON |
| Temperature Rating | -25 to 55 °C |
| Trip Range | 1.13 to 1.45 A |
| Type | MINIATURE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 04089262083 |
| UPC 12 | 040892620832 |
| Width | 2.2830 in |
| Width [Metric] | 5.7988 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 10 A |
| Interrupt Rating | 5 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 400 VAC |
| SUPPLEMENTARY PROTECTION |
| Type B characteristic designed for European residential circuit protection. This characteristic can also be used for protection of computers and electronic equipment. Magnetic trip point - 3 to 5 times In rating. Thermal trip point - 1.13 to 1.45 protecto |
| Clear and visible conductor connection in front of the rear busbar facilitates controls |
| The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space |
| Double terminal chambers permit accommodation of two wires of different cross-sections |
| Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed |
| Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices |
| For the quick and easy mounting of auxiliary switches and fault signal contacts |
| Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools |
| Class B trip |
