Siemens

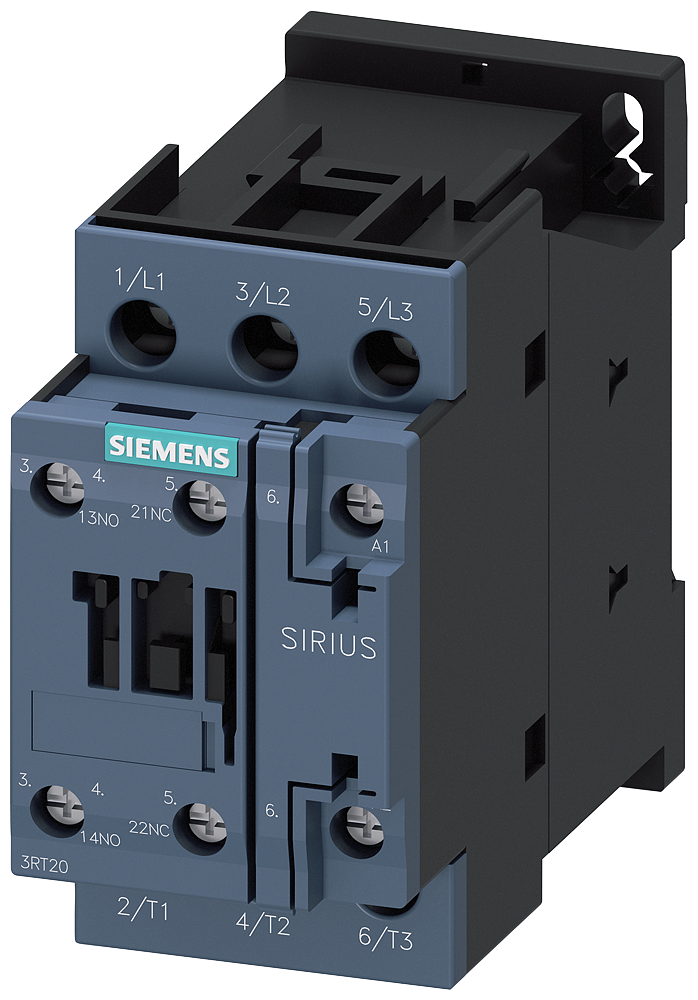

S-A 3RT20281AP60 CONTACTOR S0 38A 2
Custom_Product_Images_Illustration
Siemens
S-A 3RT20281AP60 CONTACTOR S0 38A 2
SKU910030
MFGR #3RT20281AP60
Your Cost: $216.00/ea
List: SIEMENS 3RT20281AP60 CONTACTOR S0 38A 240VAC 1NO/1NC SCRW
SIEMENS 3RT20281AP60 CONTACTOR S0 38A 240VAC 1NO/1NC SCRW
Alternate Catalog Number 3RT2028-1AP60 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20281AP60 Coil Power Rating 8.5/10.5/79/81 VA Coil Voltage 220/240 VAC Connection screw-type terminals Contact Configuration 1NO-1NC Contact Rating A600/Q600 Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 260.55 Gross Volume UOM in Gross Weight Per Pack 0.9350 lb Gross Weight per Pack Metric 0.42 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.6000 in Height [Metric] 9.1440 cm Length 3.9000 in Length [Metric] 9.9060 cm Manufacturer Siemens Maximum Load Current 38 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Returnable Y Size S0 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Sub Brand Sirius Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264391801 UPC 12 662643918014 Wattage 18.5 kW Width 1.8000 in Width [Metric] 4.5720 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. 81 VA at 50 Hz/79 VA at 60 Hz (pick-up), 10.5 VA at 50 Hz/8.5 VA at 60 Hz (holding) magnet coil at AC 0.25 at 50 Hz/0.28 at 60 Hz (holding), 0.72 at 50 Hz/0.74 at 60 Hz (closing) power factor Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring 10 hp at 200/208 VAC/220/230 VAC, 25 hp at 460/480 VAC/575/600 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2028-1AP60 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20281AP60 |
| Coil Power Rating | 8.5/10.5/79/81 VA |
| Coil Voltage | 220/240 VAC |
| Connection | screw-type terminals |
| Contact Configuration | 1NO-1NC |
| Contact Rating | A600/Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 260.55 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.9350 lb |
| Gross Weight per Pack Metric | 0.42 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.6000 in |
| Height [Metric] | 9.1440 cm |
| Length | 3.9000 in |
| Length [Metric] | 9.9060 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 38 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Returnable | Y |
| Size | S0 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264391801 |
| UPC 12 | 662643918014 |
| Wattage | 18.5 kW |
| Width | 1.8000 in |
| Width [Metric] | 4.5720 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| 81 VA at 50 Hz/79 VA at 60 Hz (pick-up), 10.5 VA at 50 Hz/8.5 VA at 60 Hz (holding) magnet coil at AC |
| 0.25 at 50 Hz/0.28 at 60 Hz (holding), 0.72 at 50 Hz/0.74 at 60 Hz (closing) power factor |
| Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| 10 hp at 200/208 VAC/220/230 VAC, 25 hp at 460/480 VAC/575/600 VAC |
