Siemens
S-A 3RT20241KB40 CONTACTOR S0 12A 2
Custom_Product_Images_Illustration
Siemens
S-A 3RT20241KB40 CONTACTOR S0 12A 2
SKU880542
MFGR #3RT20241KB40
Your Cost: $164.80/ea
List: SIEMENS 3RT20241KB40 CONTACTOR S0 12A 24VDC 1NO/1NC SCRW

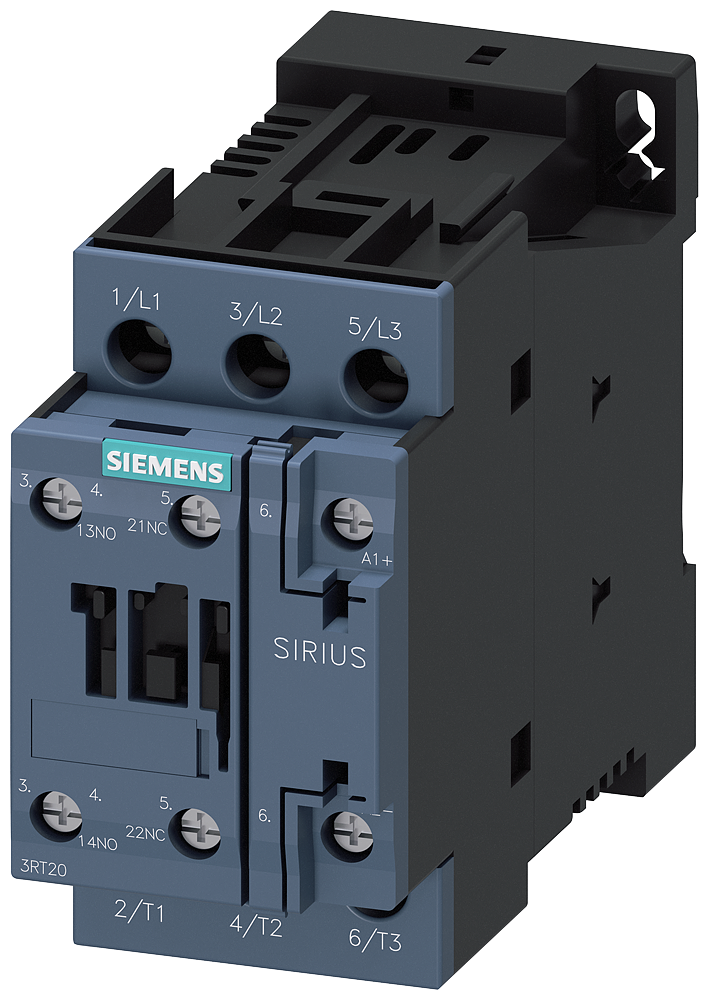

SIEMENS 3RT20241KB40 CONTACTOR S0 12A 24VDC 1NO/1NC SCRW
Alternate Catalog Number 3RT2024-1KB40 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20241KB40 Coil Power Rating 4.5 W Coil Voltage 24 VDC Contact Configuration 1NO-1NC Contact Rating A600/Q600 Contact Type Auxiliary Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 107 mm D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 204.12 Gross Volume UOM in Gross Weight Per Pack 1.2850 lb Gross Weight per Pack Metric 0.58 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.6000 in Height [Metric] 9.1440 cm Length 1.8000 in Length [Metric] 4.5720 cm Manufacturer Siemens Maximum Load Current 12 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Replaced Catalog Number 3RT1024-1KB40 Returnable Y Size S0 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264391504 UPC 12 662643915044 Wattage 5.5 kW Width 3.6000 in Width [Metric] 9.1440 cm 4.5 W (closing/holding) magnet coil at DC Space is provided for them next to a snap-on auxiliary switch block The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface 1 hp at 110/120 VAC, 2 hp at 230 VAC, 3 hp at 200/208 VAC and 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2024-1KB40 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20241KB40 |
| Coil Power Rating | 4.5 W |
| Coil Voltage | 24 VDC |
| Contact Configuration | 1NO-1NC |
| Contact Rating | A600/Q600 |
| Contact Type | Auxiliary |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 107 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 204.12 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.2850 lb |
| Gross Weight per Pack Metric | 0.58 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.6000 in |
| Height [Metric] | 9.1440 cm |
| Length | 1.8000 in |
| Length [Metric] | 4.5720 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 12 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Replaced Catalog Number | 3RT1024-1KB40 |
| Returnable | Y |
| Size | S0 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264391504 |
| UPC 12 | 662643915044 |
| Wattage | 5.5 kW |
| Width | 3.6000 in |
| Width [Metric] | 9.1440 cm |
| 4.5 W (closing/holding) magnet coil at DC |
| Space is provided for them next to a snap-on auxiliary switch block |
| The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface |
| 1 hp at 110/120 VAC, 2 hp at 230 VAC, 3 hp at 200/208 VAC and 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC |
