Siemens

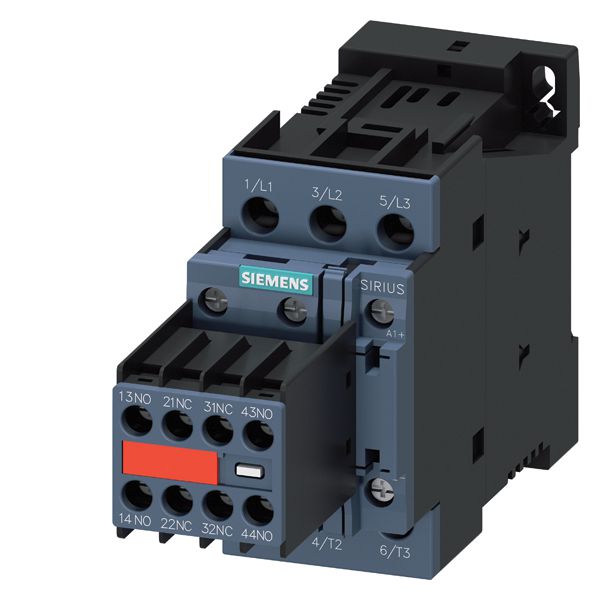

S-A 3RT20231FB443MA0 CONTACTOR S0 9
Custom_Product_Images_Illustration
Siemens
S-A 3RT20231FB443MA0 CONTACTOR S0 9
SKU873485
MFGR #3RT20231FB443MA0
Your Cost: $191.20/ea
List: SIEMENS 3RT20231FB443MA0 CONTACTOR S0 9A 24VDC 2NO/2NC SCRW
SIEMENS 3RT20231FB443MA0 CONTACTOR S0 9A 24VDC 2NO/2NC SCRW
Alternate Catalog Number 3RT2023-1FB44-3MA0 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20231FB443MA0 Coil Power Rating 7-1/2 hp Coil Voltage 24 VDC Contact Configuration 3NO Contact Rating A600/Q600 Contact Type Auxiliary Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 151 mm D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 71.86 Gross Volume UOM in Gross Weight Per Pack 1.2800 lb Gross Weight per Pack Metric 0.58 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 6.2500 in Height [Metric] 15.8750 cm Length 3.6500 in Length [Metric] 9.2710 cm Manufacturer Siemens Maximum Load Current 9 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -25 to 60 Returnable Y Size SZ 0 Stock Status NONSTOCK Terminal Type Screw Type 3-Phase Non-Reversing UNSPSC 39121529 UPC 11 66264391271 UPC 12 662643912715 Wattage 4 kW Width 3.1500 in Width [Metric] 8.0010 cm 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil Space is provided for them next to a snap-on auxiliary switch block The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface 1 hp at 110/120 VAC and 230 VAC, 2 hp at 200/208 VAC, 3 hp at 220/230 VAC, 5 hp at 460/480 VAC, 7-1/2 hp at 575/600 VAC Permanent auxiliary switch for SUVA applications
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2023-1FB44-3MA0 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20231FB443MA0 |
| Coil Power Rating | 7-1/2 hp |
| Coil Voltage | 24 VDC |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Contact Type | Auxiliary |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 151 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 71.86 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.2800 lb |
| Gross Weight per Pack Metric | 0.58 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.2500 in |
| Height [Metric] | 15.8750 cm |
| Length | 3.6500 in |
| Length [Metric] | 9.2710 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 9 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -25 to 60 |
| Returnable | Y |
| Size | SZ 0 |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | 3-Phase Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 66264391271 |
| UPC 12 | 662643912715 |
| Wattage | 4 kW |
| Width | 3.1500 in |
| Width [Metric] | 8.0010 cm |
| 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil |
| Space is provided for them next to a snap-on auxiliary switch block |
| The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface |
| 1 hp at 110/120 VAC and 230 VAC, 2 hp at 200/208 VAC, 3 hp at 220/230 VAC, 5 hp at 460/480 VAC, 7-1/2 hp at 575/600 VAC |
| Permanent auxiliary switch for SUVA applications |
