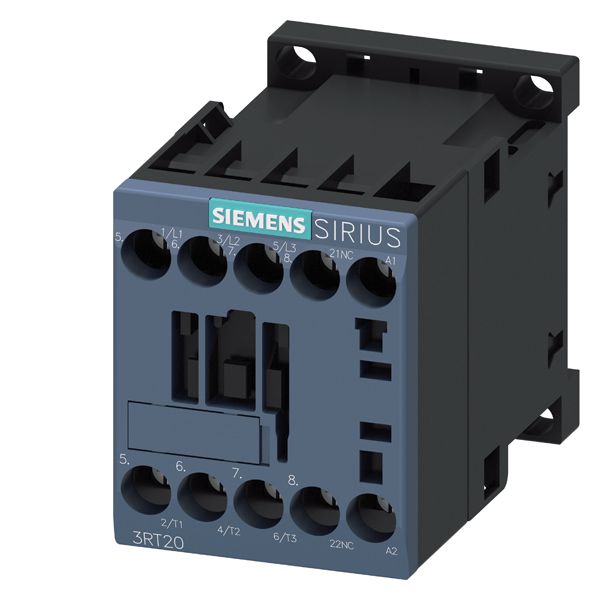

S-A 3RT20181AK62 CONTACTOR S00 16A
SKU1036630
MFGR #3RT20181AK62
Your Cost: $109.26/ea
List: CONTACTOR, AC-3, 7.5KW/400V, 1NC, AC110V 50HZ, 120V 60HZ 3-POLE, SZ S00 SCREW TERMINAL
CONTACTOR, AC-3, 7.5KW/400V, 1NC, AC110V 50HZ, 120V 60HZ 3-POLE, SZ S00 SCREW TERMINAL
Alternate Catalog Number 3RT2018-1AK62 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20181AK62 Coil Power Rating 10 hp Coil Voltage 110/120 VAC Connection screw-type terminals Contact Configuration 3NO Contact Rating A600/Q600 Contact Type Auxiliary Country of Origin DE Currency USD Dimensions 58 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 14.87 Gross Volume UOM in Gross Weight Per Pack 0.5200 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.0800 in Height [Metric] 7.8232 cm Length 2.4500 in Length [Metric] 6.2230 cm Manufacturer Siemens Maximum Load Current 16 A Mounting screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 1 Number Of Poles 3 Operating Cycles 30000000 Cycles Operating Temperature -25 to 60 Phase 3 Power Factor 1.00 Returnable Y Size SZ 00 Stock Status NONSTOCK Sub Brand Sirius Terminal Type Screw Type 3-Phase Non-Reversing UNSPSC 39121529 UPC 11 66264391267 UPC 12 662643912678 Wattage 7.5 kW Width 1.9700 in Width [Metric] 5.0038 cm Contactors for switching motors Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil Space is provided for them next to a snap-on auxiliary switch block Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring 3 hp at 200/208 VAC, 5 hp at 220/230 VAC, 10 hp at 460/480 VAC and 575/600 VAC 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2018-1AK62 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20181AK62 |
| Coil Power Rating | 10 hp |
| Coil Voltage | 110/120 VAC |
| Connection | screw-type terminals |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Contact Type | Auxiliary |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 14.87 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.5200 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.0800 in |
| Height [Metric] | 7.8232 cm |
| Length | 2.4500 in |
| Length [Metric] | 6.2230 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 16 A |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 Cycles |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Power Factor | 1.00 |
| Returnable | Y |
| Size | SZ 00 |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Screw |
| Type | 3-Phase Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 66264391267 |
| UPC 12 | 662643912678 |
| Wattage | 7.5 kW |
| Width | 1.9700 in |
| Width [Metric] | 5.0038 cm |
| Contactors for switching motors |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil |
| Space is provided for them next to a snap-on auxiliary switch block |
| Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
| 3 hp at 200/208 VAC, 5 hp at 220/230 VAC, 10 hp at 460/480 VAC and 575/600 VAC |
| 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage |
