Siemens

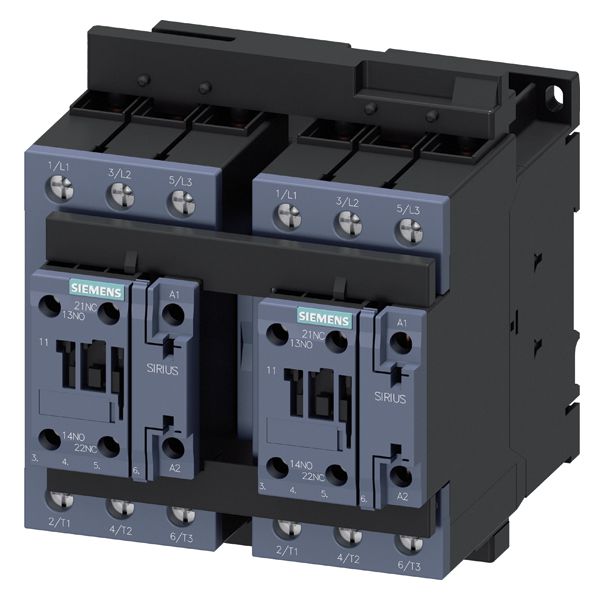

S-A 3RA23358XB301AK6 CONTACTOR REV
Custom_Product_Images_Illustration
Siemens
S-A 3RA23358XB301AK6 CONTACTOR REV
SKU1013447
MFGR #3RA23358XB301AK6
Your Cost: $1,423.00/ea
REV. COMB., AC3 18.5KW/400V, 110V AC 50HZ/120V 60HZ, 3-POLE, SIZE S2 SCREW CONNECTION ELECTR. AND MECH. INTERLOCK 2NO INTEGR.
REV. COMB., AC3 18.5KW/400V, 110V AC 50HZ/120V 60HZ, 3-POLE, SIZE S2 SCREW CONNECTION ELECTR. AND MECH. INTERLOCK 2NO INTEGR.
Alternate Catalog Number 3RA2335-8XB30-1AK6 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RA23358XB301AK6 Coil Power Rating 40 hp Coil Voltage 110/120 VAC Contact Configuration 3NO Contact Rating A600/Q600 Contact Type Auxiliary Country of Origin DE Currency USD Dimensions 141 mm H x 120 mm W x 130 mm D Enclosure Type Open EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 3121.46 Gross Volume UOM in Gross Weight Per Pack 6.4600 lb Gross Weight per Pack Metric 2.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 11.4000 in Height [Metric] 28.9560 cm Length 16.2500 in Length [Metric] 41.2750 cm Manufacturer Siemens Maximum Load Current 40 A Mounting Type Snap-On Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Cycles Operating Temperature -25 to 60 Returnable Y Size S2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL ListedEAC CertifiedCE Certified Stock Status NONSTOCK Terminal Type Screw Type Reversing UNSPSC 39121529 UPC 11 88762191384 UPC 12 887621913847 Wattage 18.5 kW Width 16.8500 in Width [Metric] 42.7990 cm Both electrical interlocking and latching are satisfied with the integrated auxiliaries 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage 15 hp at 220/230 VAC, 30 hp at 460/480 VAC, 40 hp at 575/600 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RA2335-8XB30-1AK6 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RA23358XB301AK6 |
| Coil Power Rating | 40 hp |
| Coil Voltage | 110/120 VAC |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Contact Type | Auxiliary |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 141 mm H x 120 mm W x 130 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3121.46 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 6.4600 lb |
| Gross Weight per Pack Metric | 2.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 11.4000 in |
| Height [Metric] | 28.9560 cm |
| Length | 16.2500 in |
| Length [Metric] | 41.2750 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 40 A |
| Mounting Type | Snap-On |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -25 to 60 |
| Returnable | Y |
| Size | S2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL ListedEAC CertifiedCE Certified |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 88762191384 |
| UPC 12 | 887621913847 |
| Wattage | 18.5 kW |
| Width | 16.8500 in |
| Width [Metric] | 42.7990 cm |
| Both electrical interlocking and latching are satisfied with the integrated auxiliaries |
| 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage |
| 15 hp at 220/230 VAC, 30 hp at 460/480 VAC, 40 hp at 575/600 VAC |
