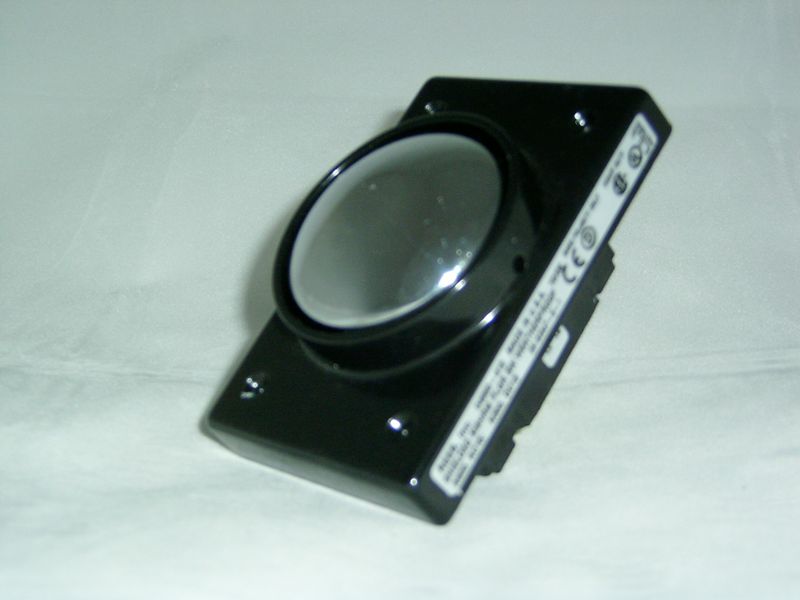

Rees 04960-412 Switch,Rees,Action:
SKU229422
MFGR #04960412
Your Cost: $360.17/ea
Rees; Switch; Action: Momentary, Slow-Make; Contact Configuration: #63 NO; Actuator: Hand Operated; Operating Temperature: -30 To +55 DEG C; Note: Operating Temperatures At 0 DEG C Are Based On The Absence Of Freezing Moisture And Liquids; Inrush Current: 60, 30, 15, 12 AMP; Mechanical Life: 1000000 Operations; Storage Temperature: -40 To +85 DEG C; Nema Rating: 4; Wire Size: 14/2 AWG Stranded; Operating Force: 1.500 LB; Positive Opening Contact: No; Iec Rating: Utilization = A 600, AC 15, N 300, DC 13, Ue = 600 VAC; Ue = 250 VDC, Ui = 600 VAC, Uimp = 2.5 KV; Ith = 10 AMP; Plunger Size: 2.250 IN; Plunger Style: Mushroom; Ip: 66; Plunger: Chrome Plated, Steel; Contact Finish: Gold Plated; Cover: Black, Dry Powder Painted, Die Cast Zinc; Normal Potential: 110 - 120 VAC, 220 - 240 VAC, 440 - 480 VAC, 550 - 600 VAC Power Factor 0.35 Or Less; 115 - 125 VDC, 230 - 250 VDC Inductive Loads As Specified In Section 125 Of Industrial Control Devices, Controllers And Assemblies, ANSI / NEMA ICS 2-1988; Normal Current: 6, 3, 1.5, 1.2, 2.2, 1.1 AMP
Rees; Switch; Action: Momentary, Slow-Make; Contact Configuration: #63 NO; Actuator: Hand Operated; Operating Temperature: -30 To +55 DEG C; Note: Operating Temperatures At 0 DEG C Are Based On The Absence Of Freezing Moisture And Liquids; Inrush Current: 60, 30, 15, 12 AMP; Mechanical Life: 1000000 Operations; Storage Temperature: -40 To +85 DEG C; Nema Rating: 4; Wire Size: 14/2 AWG Stranded; Operating Force: 1.500 LB; Positive Opening Contact: No; Iec Rating: Utilization = A 600, AC 15, N 300, DC 13, Ue = 600 VAC; Ue = 250 VDC, Ui = 600 VAC, Uimp = 2.5 KV; Ith = 10 AMP; Plunger Size: 2.250 IN; Plunger Style: Mushroom; Ip: 66; Plunger: Chrome Plated, Steel; Contact Finish: Gold Plated; Cover: Black, Dry Powder Painted, Die Cast Zinc; Normal Potential: 110 - 120 VAC, 220 - 240 VAC, 440 - 480 VAC, 550 - 600 VAC Power Factor 0.35 Or Less; 115 - 125 VDC, 230 - 250 VDC Inductive Loads As Specified In Section 125 Of Industrial Control Devices, Controllers And Assemblies, ANSI / NEMA ICS 2-1988; Normal Current: 6, 3, 1.5, 1.2, 2.2, 1.1 AMP
Catalog Number 04960412 Country of Origin USA Gross Weight Per Pack 1.4200 lb UNSPSC 39122216 UPC 11 64867149642 UPC 12 64867149642 Stock Status NONSTOCK Brand REES Manufacturer Rees, Inc.
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
Catalog Number | 04960412 |
Country of Origin | USA |
Gross Weight Per Pack | 1.4200 lb |
UNSPSC | 39122216 |
UPC 11 | 64867149642 |
UPC 12 | 64867149642 |
Stock Status | NONSTOCK |
Brand | REES |
Manufacturer | Rees, Inc. |
