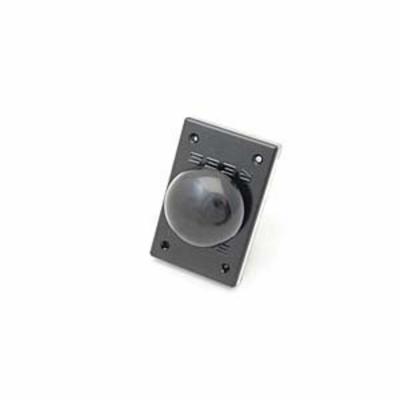

Rees 02761-001 Rectangular Heavy Duty Non-Illuminated Pushbutton, 2-1/4 in, #64 2NO/2NC, Snap Acting Contact, Black
Non-Illuminated Pushbuttons
274177
MFG #: 02761001
REES
591.98000
/ ea
REES Non-Illuminated Pushbutton, Rectangular Heavy Duty, 2-1/4 in, #64 2NO/2NC, Snap Acting Contact, Momentary Contact Mode, 6 A at 120 VAC/1.1 A at 250 VDC Contact, Hand Operator, Plunger, NEMA 12/13/IP65, Plastic, Dry Powder Painted, Black, Environmental Conditions: -32 to 131 deg F Operating Temperature/-40 to 185 deg F Ambient Temperature
- Application GDE URL - REES_00222_002_Application_Guide.pdf(Application GDE URL)
- Catalog URL - IDW_DOCUMENT_8e9c1daf21a05138329eb17197525392d5d22c2ad9b1712f772727ae63217b5f.pdf(Catalog URL)
- Spec Sheet URL - A%2004853-931_rev_B.pdf(Spec Sheet URL)
- Owners Manual URL - REES_00222_002_Manual.pdf(Owners Manual URL)
- http://www.reesinc.com/(Seller Home Page URL)
- Install Instructions URL - REES_00222_002_Installation_Instructions.pdf(Install Instructions URL)
- Warranty URL - TermsPopup.aspx?cid=3969&plpver=10&pcat=&origin=Plp&lsid=50360424#TermsAndConditions(Warranty URL)
- Tech Drawing URL(Tech Drawing URL)
- Features
| The following switch is a hand operated, control circuit device, rated 'Heavy Duty - A600 / N300' normally for use with electromagnetic equipment; The black cover, painted with a dry powder paint, is made from die-cast zinc; Gold plated contacts eliminate high resistance tarnishing; Each captive terminal will accept (2) 14 AWG stranded wires; Each switch is supplied with all mounting hardware and a solid neoprene rubber gasket which provides an oil tight seal upon installation; Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial/commercial environments; Note: Operating temperatures at 0 DEG C are based on the absence of freezing moisture and liquids |
| The following switch is a hand operated, control circuit device, rated heavy duty A600/N300 normally for use with electromagnetic equipment |
| The black cover painted with a dry powder paint is made from die cast zinc |
| Gold plated contacts eliminate high resistance tarnishing |
| Each switch is supplied with all mounting hardware and a solid neoprene rubber gasket which provides an oil tight seal upon installation |
| Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial/commercial environments |
| 3.7 lb operating force |
| Positive opening contact |
| Ergonomic plunger design |
