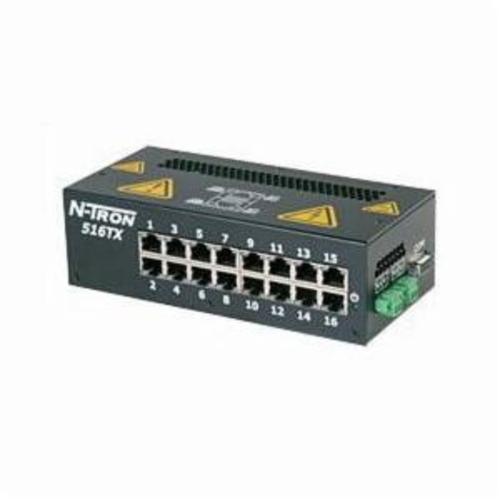

Red Lion N-Tron® 516TX Unmanaged Ethernet Switch, 16 RJ45 Copper Port, 2.6 Gbps
SKU847949
MFGR #516TX-A
Your Cost: $1,628.00/ea
N-Tron® 516TX series industrial Ethernet switch offers outstanding performance and ease of use. It is ideally suited for connecting ethernet enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions. The 516TX, designed to operate in industrial environments, is housed in a rugged DIN-rail-mounted steel enclosure. Optional panel and rack mount kits are also Available. The switch comes standard with extended temperature rating extended shock and vibration specs, redundant power inputs and a high MTBF (greater than 2M hours).
N-Tron® 516TX series industrial Ethernet switch offers outstanding performance and ease of use. It is ideally suited for connecting ethernet enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions. The 516TX, designed to operate in industrial environments, is housed in a rugged DIN-rail-mounted steel enclosure. Optional panel and rack mount kits are also Available. The switch comes standard with extended temperature rating extended shock and vibration specs, redundant power inputs and a high MTBF (greater than 2M hours).
Cable Type Duplex/MDIX Auto Sensing Catalog Number 516TX-A Connector Type 10/100 Base RJ45 TX Country of Origin US Environmental Conditions 10 to 95% Operating Gross Weight Per Pack 2.0000 lb Height 2.3 in Length 3-1/2 in Mounting Type DIN Rail Network Type =Cat 5 Power Supply 1.3 A at 24 VDC Series 516TX Temperature Rating -40 to 85 deg C Type Unmanaged Width 7.4 in Stock Status NONSTOCK Brand Red Lion® Manufacturer Red Lion Controls Memory 2.6 Gbps Port Type 16 RJ45 Copper IGMP Snooping- Internet group management protocol allows the N-Tron® switch to intelligently forward and filter multicast traffic VLAN Virtual local area network allows switch segmentation in order to create two or more separate local area network domains QoS- quality of service streamlines network operation by managing packet priority The primary goal of QoS is to improve the latency of prioritized Ethernet packets required for ring management, real-time and other interactive applications Trunking (aggregation) enables multiple physical ports to be linked together and function as one uplink to another identically configured trunking capable switch This feature increases the bandwidth between switches and creates redundancy for applications requiring high levels of fault tolerant operation Port mirroring allows traffic on one port to be duplicated and sent to a designated mirror port This function can be used to Monitor Ethernet traffic on the designated source port using the assigned mirror port N-View™ OPC server software can be used with popular HMI software packages to transmit operational information from N-View-capable switches This technology enables network traffic monitoring, as well as alarm and trending details In all, the N-View™ OPC server collects 41 different traffic variables per port and five system level variables per switch, providing a complete overview of network load, service quality, and packet traffic Empowered with N-View™ OPC server data, users can resolve network problems faster and make more informed decisions about overall system performance Store-and-forward technology Bi-color LEDs for link, speed, activity and duplex status The 516TX requires no setup unless the advanced port functions are utilized The sixteen 10/100BaseTX ports are auto sensing and auto configuring Each port automatically negotiates for maximum speed and performance by default Bi-color LEDs are provided to display the link status, link speed and activity of each port as well as power on off status 4000 MAC addresses, 300 s programmable (-A option) aging time, latency typical is 2.1 us, store and forward switch, redundant input voltage of 10 - 30 VDC input current of 400 mA at 24 VDC inrush of 7 amp/0.8 ms at 24 VDC Operating humidity is 10% to 95% (non condensing), operating altitude is 0 to 10000 ft, 200 g at 10ms shock, vibration/seismic of 50 g, 5-200 Hz, triaxial, >2 million hours MTBF, 9600,n,8,1 serial configuration port
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Cable Type | Duplex/MDIX Auto Sensing |
| Catalog Number | 516TX-A |
| Connector Type | 10/100 Base RJ45 TX |
| Country of Origin | US |
| Environmental Conditions | 10 to 95% Operating |
| Gross Weight Per Pack | 2.0000 lb |
| Height | 2.3 in |
| Length | 3-1/2 in |
| Mounting Type | DIN Rail |
| Network Type | =Cat 5 |
| Power Supply | 1.3 A at 24 VDC |
| Series | 516TX |
| Temperature Rating | -40 to 85 deg C |
| Type | Unmanaged |
| Width | 7.4 in |
| Stock Status | NONSTOCK |
| Brand | Red Lion® |
| Manufacturer | Red Lion Controls |
| Memory | 2.6 Gbps |
| Port Type | 16 RJ45 Copper |
| IGMP Snooping- Internet group management protocol allows the N-Tron® switch to intelligently forward and filter multicast traffic |
| VLAN Virtual local area network allows switch segmentation in order to create two or more separate local area network domains |
| QoS- quality of service streamlines network operation by managing packet priority |
| The primary goal of QoS is to improve the latency of prioritized Ethernet packets required for ring management, real-time and other interactive applications |
| Trunking (aggregation) enables multiple physical ports to be linked together and function as one uplink to another identically configured trunking capable switch |
| This feature increases the bandwidth between switches and creates redundancy for applications requiring high levels of fault tolerant operation |
| Port mirroring allows traffic on one port to be duplicated and sent to a designated mirror port |
| This function can be used to Monitor Ethernet traffic on the designated source port using the assigned mirror port |
| N-View™ OPC server software can be used with popular HMI software packages to transmit operational information from N-View-capable switches |
| This technology enables network traffic monitoring, as well as alarm and trending details |
| In all, the N-View™ OPC server collects 41 different traffic variables per port and five system level variables per switch, providing a complete overview of network load, service quality, and packet traffic |
| Empowered with N-View™ OPC server data, users can resolve network problems faster and make more informed decisions about overall system performance |
| Store-and-forward technology |
| Bi-color LEDs for link, speed, activity and duplex status |
| The 516TX requires no setup unless the advanced port functions are utilized |
| The sixteen 10/100BaseTX ports are auto sensing and auto configuring |
| Each port automatically negotiates for maximum speed and performance by default |
| Bi-color LEDs are provided to display the link status, link speed and activity of each port as well as power on off status |
| 4000 MAC addresses, 300 s programmable (-A option) aging time, latency typical is 2.1 us, store and forward switch, redundant input voltage of 10 - 30 VDC input current of 400 mA at 24 VDC inrush of 7 amp/0.8 ms at 24 VDC |
| Operating humidity is 10% to 95% (non condensing), operating altitude is 0 to 10000 ft, 200 g at 10ms shock, vibration/seismic of 50 g, 5-200 Hz, triaxial, >2 million hours MTBF, 9600,n,8,1 serial configuration port |
