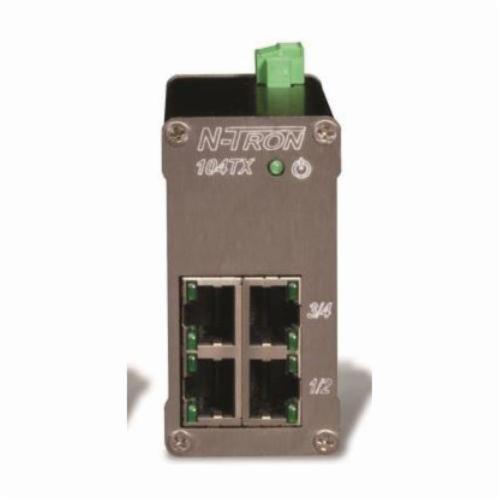

Red Lion N-Tron® 104TX Unmanaged Ethernet Switch, 4 RJ45 Copper Port, 800 Mbps
SKU765428
MFGR #104TX
Your Cost: $161.00/ea
Red Lion N-Tron® Ethernet Switch, Unmanaged, 4 RJ45 Copper Port, Memory: 800 Mbps, Network: >Cat 5, MDIX Auto Sensing Cable, 10/100 Base RJ45 TX Connector, 10 to 30 VDC Supply, DIN Rail Mount, 3.6 in Length, 1-1/2 in Width, 2.9 in Height, -40 to 80 deg C, Environmental Conditions: 10 to 95% Operating
Red Lion N-Tron® Ethernet Switch, Unmanaged, 4 RJ45 Copper Port, Memory: 800 Mbps, Network: >Cat 5, MDIX Auto Sensing Cable, 10/100 Base RJ45 TX Connector, 10 to 30 VDC Supply, DIN Rail Mount, 3.6 in Length, 1-1/2 in Width, 2.9 in Height, -40 to 80 deg C, Environmental Conditions: 10 to 95% Operating
Cable Type MDIX Auto Sensing Catalog Number 104TX Connector Type 10/100 Base RJ45 TX Country of Origin US Environmental Conditions 10 to 95% Operating Gross Weight Per Pack 1.0000 lb Height 2.9 in Interface Type Roughing Length 3.6 in Mounting Type DIN Rail Network Type >Cat 5 Power Supply 10 to 30 VDC Standards FCC Title 47 Part 15 Class A, ICES-003- Class A, CE: EN61000-6-2,4, EN61000-4-2,3,4,5,6, EN55011, UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000, Class I, Div 2, Groups A,B,C,D,T4A, GOST-R Certifi ed Temperature Rating -40 to 80 deg C Type Unmanaged Width 1-1/2 in Stock Status NONSTOCK Brand Red Lion® Manufacturer Red Lion Controls Memory 800 Mbps Port Type 4 RJ45 Copper Compact size/small footprint extended environmental specifications is -40 to 80 deg c and >2M hours MTBF, surge protection diodes on power inputs Auto sensing speed and flow control MDIX auto sensing cable, unmanaged operation, up to 800 Mb/s maximum throughput, full wire speed communications, store-and-forward technology Redundant power inputs 10-30 VDC LED link/activity status indication, hardened metal DIN rail enclosure Industrial network switch is designed to solve the most demanding industrial communication requirements While providing high throughput and minimum downtime Provides four RJ-45 auto sensing 10/100BaseTX ports, all ports are full/half duplex capable, using "state of the art" Ethernet switching technology The 104TX auto-negotiates the speed and flow control capabilities of the four TX port connections, and configures itself automatically Since the 104TX is auto sensing, there will be no need to make extensive wiring changes if upgrades are made to the host computers, plant systems, or Ethernet I/O modules The switching fabric simply scales up or down automatically to match specifi c network environments Supports up to 2,000 MAC addresses, enabling These products to support extremely sophisticated and complex network architectures An ideal candidate for upgrading existing hubs and repeaters to Increase bandwidth and determinism by virtually eliminating network collisions, combines affordability and the plug & play simplicity of the unmanaged hub Has extended operating environmental specifications to meet the harsh needs of the industrial environment For cost savings and convenience the network switch can be DIN rail mounted alongside Ethernet I/O or other industrial equipment To Increase reliability the 104TX provides dual redundant power inputs LED's are provided to display the link status and activity of each port Steady input current is 215 mA at 24 V inrush is 7.8 A/0.7 ms at 24 V Operating humidity is 10% to 95% (non condensing), operating altitude is 0 to 10000 ft, reliability is >2 million hours MTBF Recommended wiring clearance is 2 in front and 1 in top Plug and play operation, auto sensing 10/100BaseTX, auto negotiation full/half duplex
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Cable Type | MDIX Auto Sensing |
| Catalog Number | 104TX |
| Connector Type | 10/100 Base RJ45 TX |
| Country of Origin | US |
| Environmental Conditions | 10 to 95% Operating |
| Gross Weight Per Pack | 1.0000 lb |
| Height | 2.9 in |
| Interface Type | Roughing |
| Length | 3.6 in |
| Mounting Type | DIN Rail |
| Network Type | >Cat 5 |
| Power Supply | 10 to 30 VDC |
| Standards | FCC Title 47 Part 15 Class A, ICES-003- Class A, CE: EN61000-6-2,4, EN61000-4-2,3,4,5,6, EN55011, UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000, Class I, Div 2, Groups A,B,C,D,T4A, GOST-R Certifi ed |
| Temperature Rating | -40 to 80 deg C |
| Type | Unmanaged |
| Width | 1-1/2 in |
| Stock Status | NONSTOCK |
| Brand | Red Lion® |
| Manufacturer | Red Lion Controls |
| Memory | 800 Mbps |
| Port Type | 4 RJ45 Copper |
| Compact size/small footprint extended environmental specifications is -40 to 80 deg c and >2M hours MTBF, surge protection diodes on power inputs |
| Auto sensing speed and flow control MDIX auto sensing cable, unmanaged operation, up to 800 Mb/s maximum throughput, full wire speed communications, store-and-forward technology |
| Redundant power inputs 10-30 VDC LED link/activity status indication, hardened metal DIN rail enclosure |
| Industrial network switch is designed to solve the most demanding industrial communication requirements While providing high throughput and minimum downtime |
| Provides four RJ-45 auto sensing 10/100BaseTX ports, all ports are full/half duplex capable, using "state of the art" Ethernet switching technology |
| The 104TX auto-negotiates the speed and flow control capabilities of the four TX port connections, and configures itself automatically |
| Since the 104TX is auto sensing, there will be no need to make extensive wiring changes if upgrades are made to the host computers, plant systems, or Ethernet I/O modules |
| The switching fabric simply scales up or down automatically to match specifi c network environments |
| Supports up to 2,000 MAC addresses, enabling These products to support extremely sophisticated and complex network architectures |
| An ideal candidate for upgrading existing hubs and repeaters to Increase bandwidth and determinism by virtually eliminating network collisions, combines affordability and the plug & play simplicity of the unmanaged hub |
| Has extended operating environmental specifications to meet the harsh needs of the industrial environment |
| For cost savings and convenience the network switch can be DIN rail mounted alongside Ethernet I/O or other industrial equipment |
| To Increase reliability the 104TX provides dual redundant power inputs LED's are provided to display the link status and activity of each port |
| Steady input current is 215 mA at 24 V inrush is 7.8 A/0.7 ms at 24 V |
| Operating humidity is 10% to 95% (non condensing), operating altitude is 0 to 10000 ft, reliability is >2 million hours MTBF |
| Recommended wiring clearance is 2 in front and 1 in top |
| Plug and play operation, auto sensing 10/100BaseTX, auto negotiation full/half duplex |
