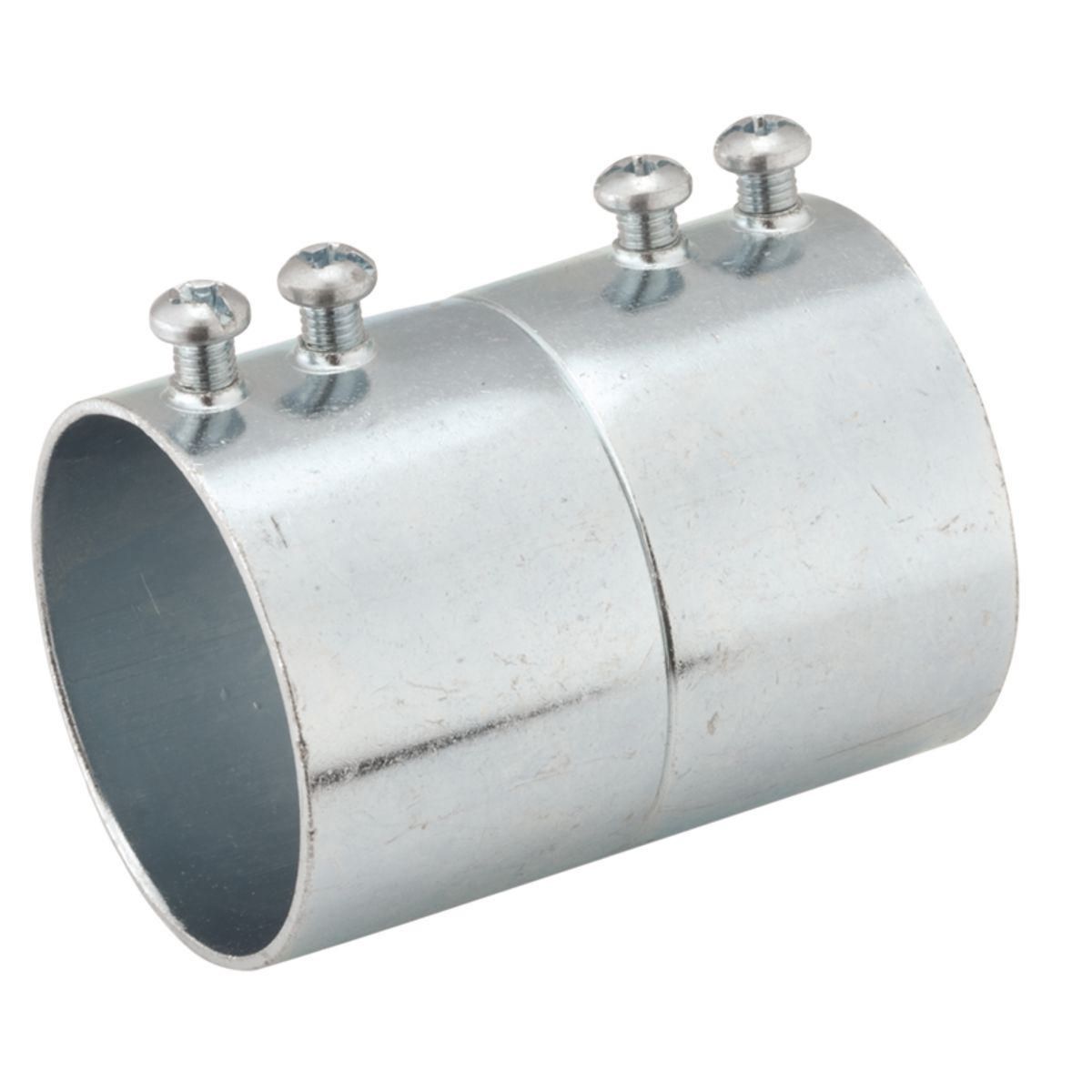

Raco® 2028 Set Screw Conduit Coupling, 2 in, For Use With EMT Conduit, Steel, Zinc Plated
Custom_Product_Images_Illustration
Raco® 2028 Set Screw Conduit Coupling, 2 in, For Use With EMT Conduit, Steel, Zinc Plated
SKU910000
MFGR #2028
Your Cost: $7.23/ea
List: When you need to couple, connect, fasten, or ground conduit or cables, RACO® fittings are your best answer. Where applicable, RACO® products are engineered in accordance with the standards established by Underwriters' Laboratories (UL). Most products are listed by UL and also certified by the Canadian Standards Association (CSA). Dimensional data listed in this catalog is intended for general reference with broad tolerance limits.
When you need to couple, connect, fasten, or ground conduit or cables, RACO® fittings are your best answer. Where applicable, RACO® products are engineered in accordance with the standards established by Underwriters' Laboratories (UL). Most products are listed by UL and also certified by the Canadian Standards Association (CSA). Dimensional data listed in this catalog is intended for general reference with broad tolerance limits.
Application Electrical ARRA Compliant C Buy American Compliant C Catalog Number 2028 Color Silver Country of Origin CN Currency USD Dimensions 2.39 in OD x 3.225 in L EU RoHS Indicator Y Flexibility EMT Gross Volume Per Pack 22.67 Gross Volume per Pack Metric 371.43 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.7400 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7307995045 Height 2.91 in Height [Metric] 7.3990 cm Installation Type Set screw Length 3.27 in Length [Metric] 8.3109 cm Returnable Y Standard C UL US Standards UL 514BCSA C22.2 No. 18cULus Listed Trade Size 2 in Type Set Screw UNSPSC 39131707 UPC 11 05016902028 UPC 12 050169020289 Width 2.38 in Width [Metric] 6.0401 cm Stock Status NONSTOCK Brand Raco® Manufacturer Hubbell Finish Electro-Plated Zinc Material Steel Size 2 in Suitable For Use With EMT Conduit Electrical zinc electro plated, provides a concrete tight connection when taped, tri-head screws All steel construction insures mechanical protection for the raceway Tri-head screws (1/2 - 2 in trade sizes) may be installed using a slotted, Phillips or Robertson head screwdriver 2-1/2 - 4 in trade sizes are also UL Listed for use on Rigid/IMC conduit, allowing for design and installation flexibility UPC bar coded fittings are individually polybagged with a pre-printed UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation concrete tight connections when taped RACO set screw couplings are suitable for applications above 600V All components are zinc electroplated for corrosion protection 1/4-28 UNS thread Set screw installation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Electrical |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | 2028 |
Color | Silver |
Country of Origin | CN |
Currency | USD |
Dimensions | 2.39 in OD x 3.225 in L |
EU RoHS Indicator | Y |
Flexibility | EMT |
Gross Volume Per Pack | 22.67 |
Gross Volume per Pack Metric | 371.43 |
Gross Volume UOM | CI |
Gross Volume UOM Metric | cm3 |
Gross Weight Per Pack | 0.7400 lb |
Gross Weight per Pack Metric | 0.25 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 7307995045 |
Height | 2.91 in |
Height [Metric] | 7.3990 cm |
Installation Type | Set screw |
Length | 3.27 in |
Length [Metric] | 8.3109 cm |
Returnable | Y |
Standard | C UL US |
Standards | UL 514BCSA C22.2 No. 18cULus Listed |
Trade Size | 2 in |
Type | Set Screw |
UNSPSC | 39131707 |
UPC 11 | 05016902028 |
UPC 12 | 050169020289 |
Width | 2.38 in |
Width [Metric] | 6.0401 cm |
Stock Status | NONSTOCK |
Brand | Raco® |
Manufacturer | Hubbell |
Finish | Electro-Plated Zinc |
Material | Steel |
Size | 2 in |
Suitable For Use With | EMT Conduit |
Electrical |
zinc electro plated, provides a concrete tight connection when taped, tri-head screws |
All steel construction insures mechanical protection for the raceway |
Tri-head screws (1/2 - 2 in trade sizes) may be installed using a slotted, Phillips or Robertson head screwdriver |
2-1/2 - 4 in trade sizes are also UL Listed for use on Rigid/IMC conduit, allowing for design and installation flexibility |
UPC bar coded fittings are individually polybagged with a pre-printed UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation |
concrete tight connections when taped |
RACO set screw couplings are suitable for applications above 600V |
All components are zinc electroplated for corrosion protection |
1/4-28 UNS thread |
Set screw installation |
